Description
HTA 2000H Headspace Autosampler Overview

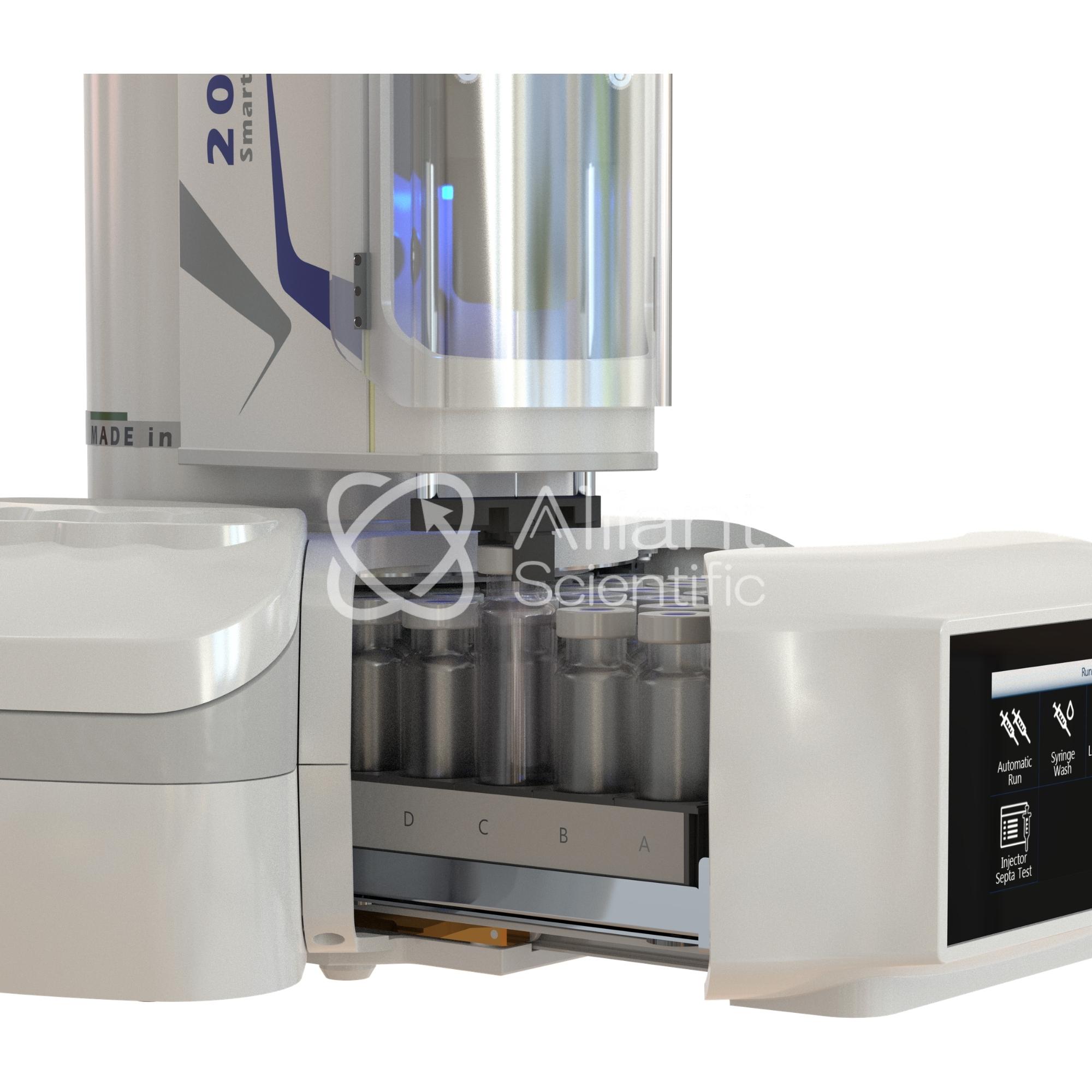

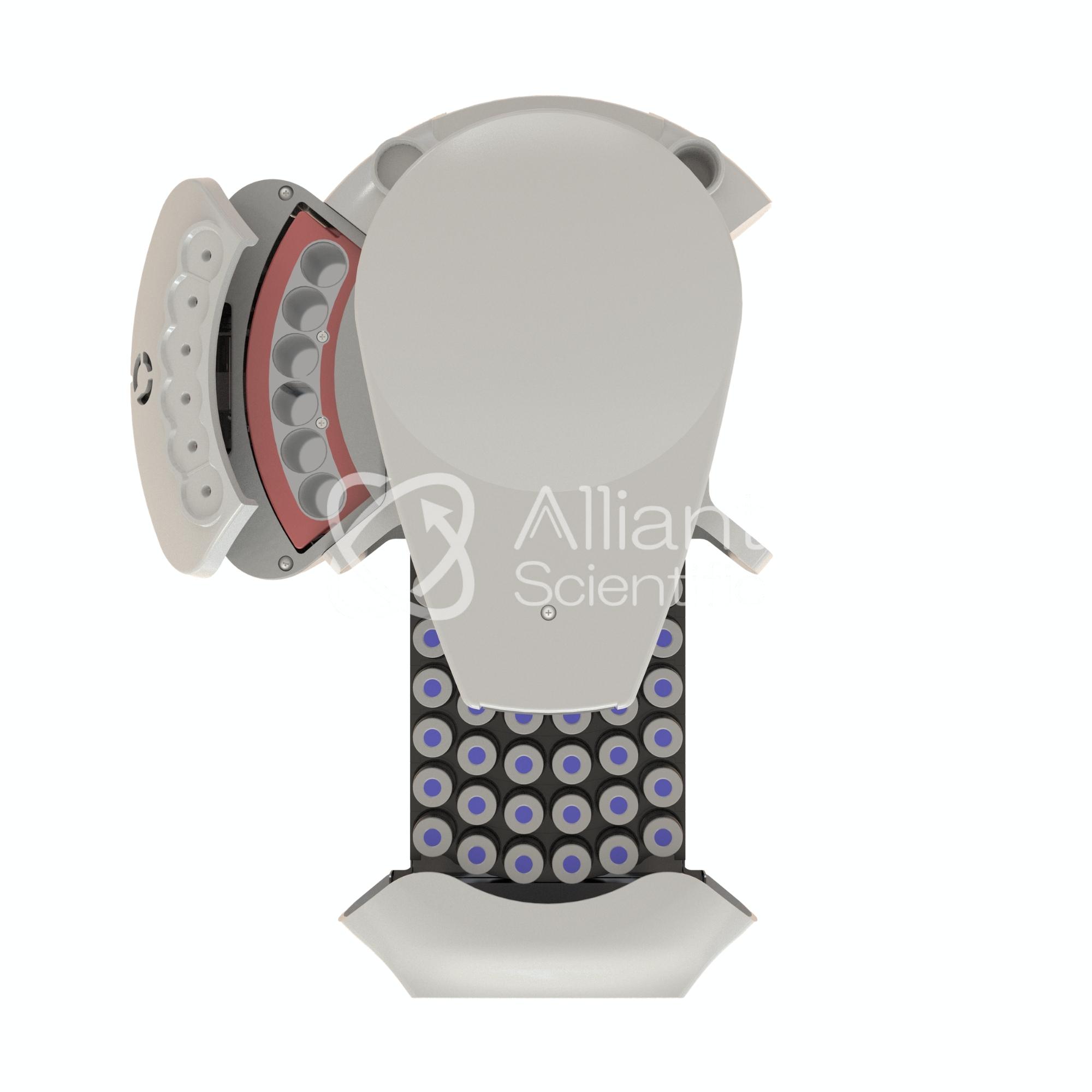

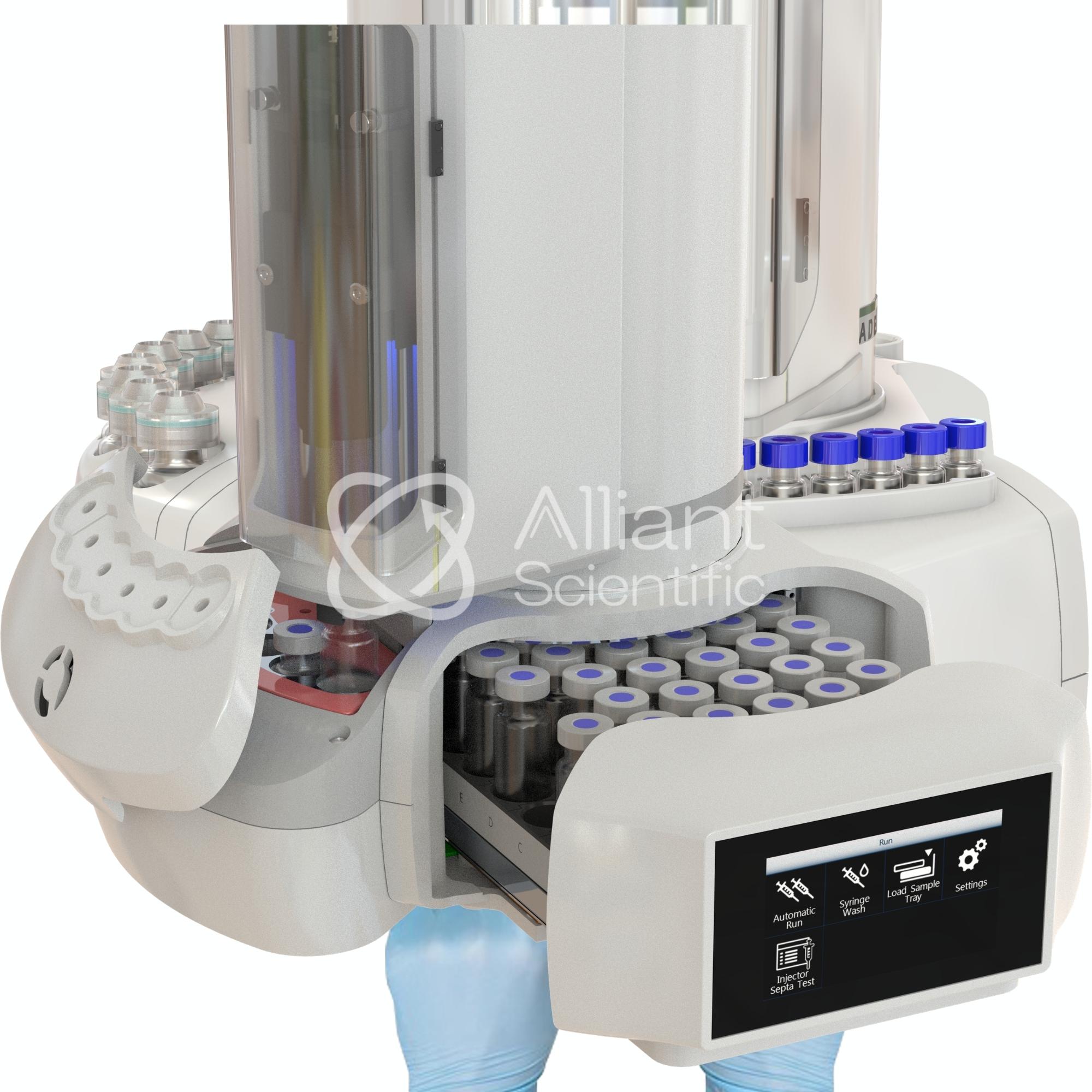

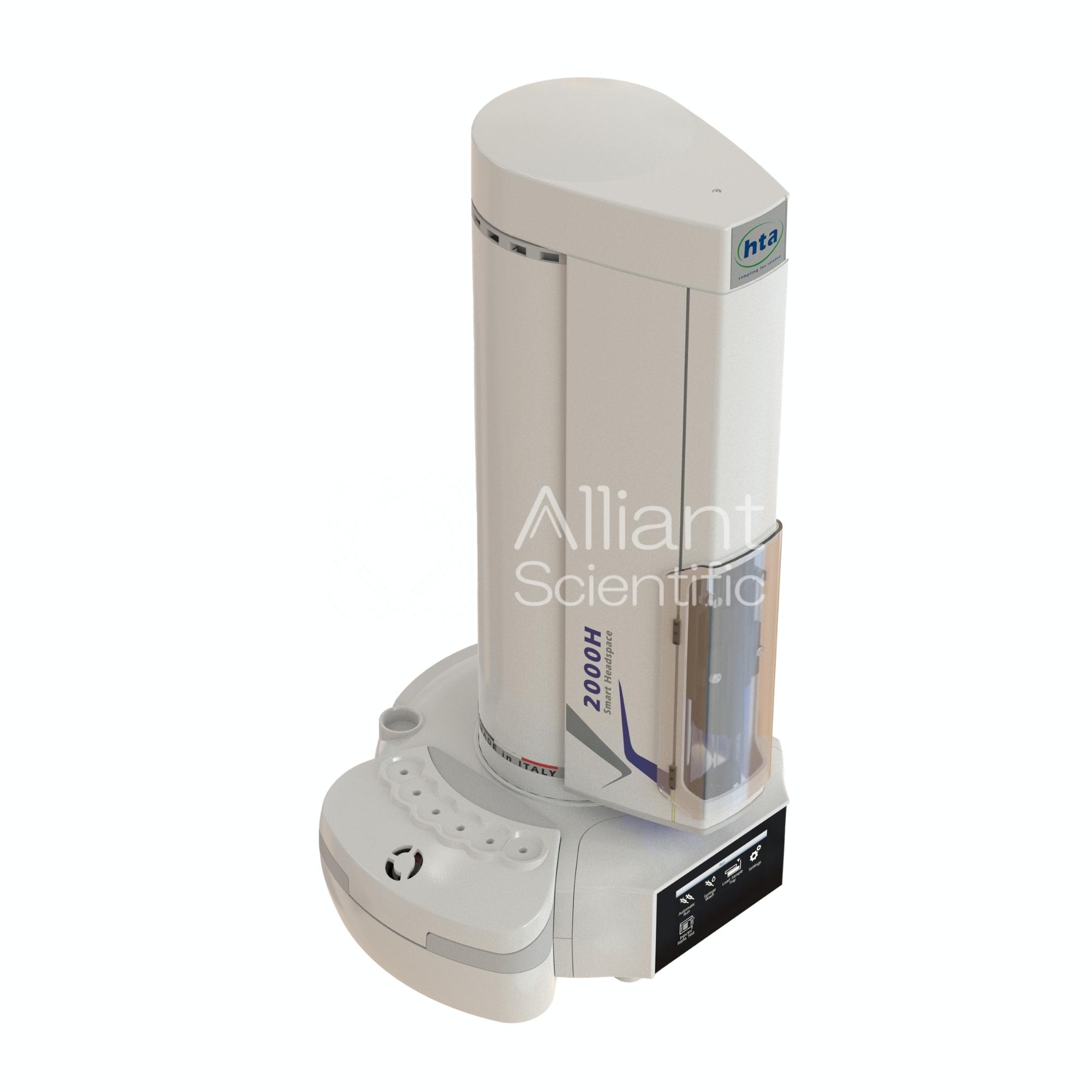

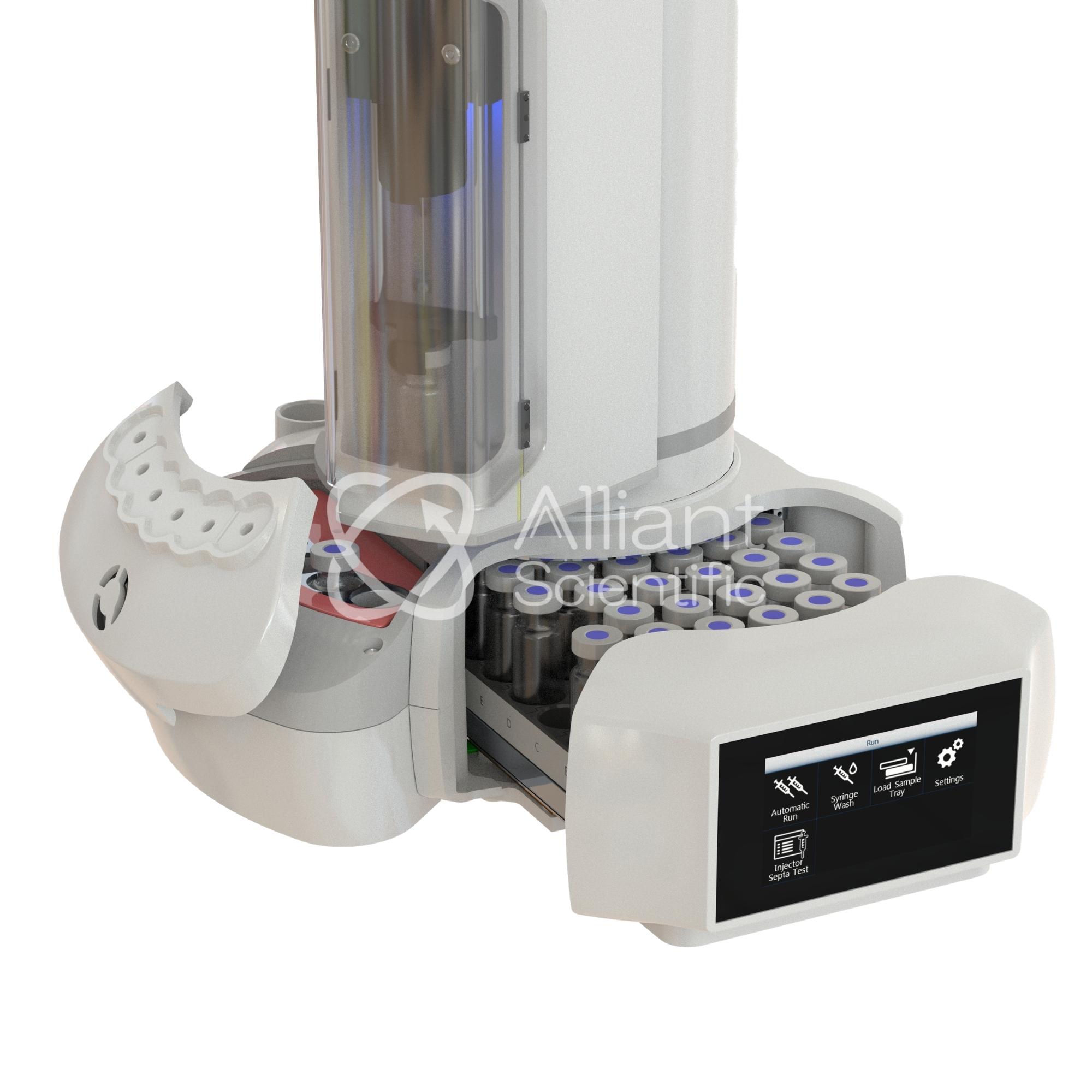

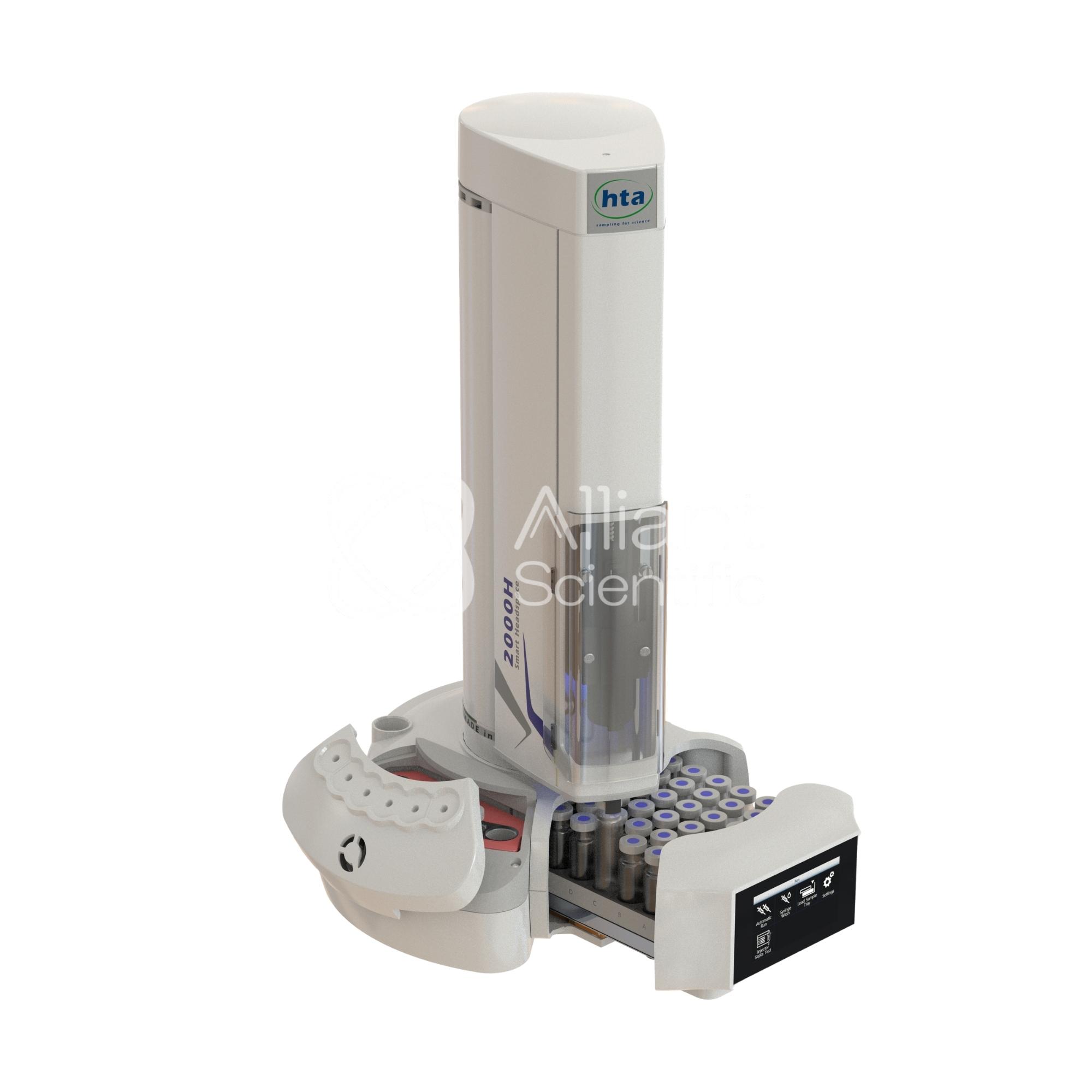

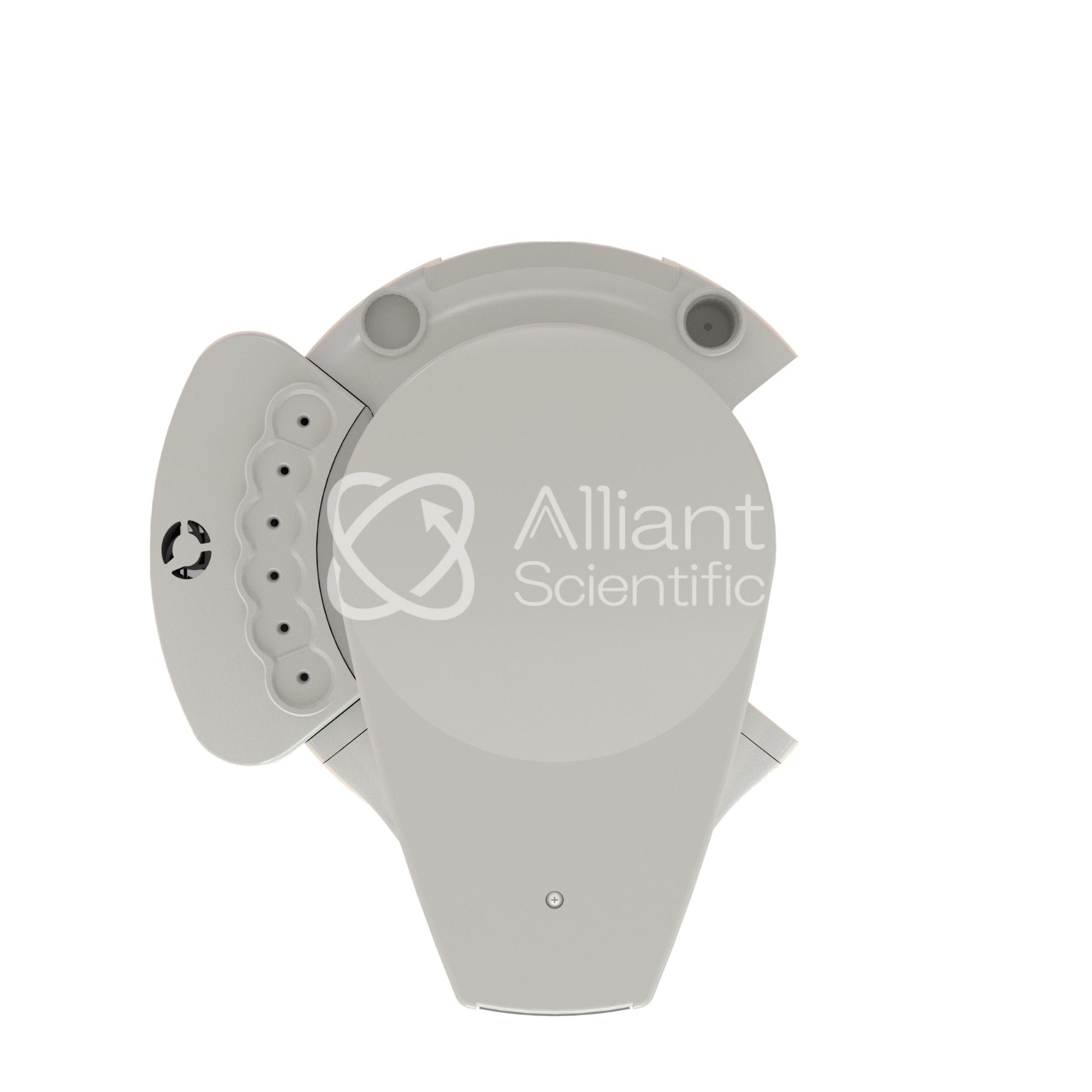

The HTA 2000H Headspace Autosampler is a static headspace sampling system designed for automated GC and GC/MS analysis of volatile and semi‑volatile compounds. It supports batch processing of up to 42 samples using a removable vial rack, enabling efficient handling of routine analytical workloads. Samples are conditioned through controlled vial heating and orbital agitation, followed by syringe‑based headspace extraction and injection. The system is commonly used in laboratories that require repeatable headspace sampling, reduced manual handling, and reliable unattended operation.
Available from Alliant Scientific, an authorized HTA distributor, supplying the HTA 3000A Automatic Liquid Autosampler with full support for system configuration, installation.
Technical Specifications
| General | |
|---|---|
| Product Type | Static headspace autosampler for GC and GC/MS analysis |
| Sample Capacity | Up to 42 samples using removable vial rack |
| Supported Vial Sizes | 20 mL standard; optional 10 mL and 6 mL |
| User Interface | Integrated touchscreen |
| Electrical Control | LAN and TTL; optional RS‑232 |
| Sample Conditioning | |
| Oven Positions | 6 simultaneous conditioning positions |
| Oven Temperature Range | Off; 40 to 170 °C |
| Shaking Method | Orbital shaking |
| Shaker Speed | Adjustable from very low to very high |
| Incubation Time | Programmable up to 999 minutes |
| Sampling | |
| Syringe Volume | 2.5 mL standard; optional 1 mL and 5 mL |
| Syringe Temperature | Off; up to 150 °C |
| Sample Volume Resolution | 0.01 mL increments |
| Sample Speed | 0.5 to 100 mL/min |
| Cleaning System | Inert gas syringe purge |
| Injection | |
| Injection Speed | 0.5 to 100 mL/min |
| Pre / Post Dwell Time | Programmable up to 99 seconds |
| Dwell Time Between Injections | Programmable up to 100 minutes |
| Physical Characteristics | |
| Dimensions (W × H × D) | 330 × 640 × 320 mm |
| Weight | Approximately 10.0 kg |
| Power | |
| Power Supply | 100–240 VAC, 50–60 Hz |
| Power Consumption | 120 W |
Additional information
| Availability | |
|---|---|
| Brand | |
| Condition | |
| Model | |
| Onsite Installation | |
| Warranty |
Key Features
-
Static headspace sampling system
Designed for automated headspace analysis in GC and GC/MS workflows using syringe‑based sampling. -
42‑sample capacity
Supports batch processing of up to 42 vials using a removable rack for efficient sample handling. -
Controlled sample conditioning
Samples are heated and agitated in a temperature‑controlled oven to establish headspace equilibrium prior to injection. -
Orbital vial agitation
Integrated shaking improves analyte transfer from liquid or solid matrices into the headspace. -
Syringe‑based headspace injection
Heated, gas‑tight syringe enables direct headspace extraction and injection without transfer lines or sample loops. -
Touchscreen operation
Integrated touchscreen interface allows method setup, sequence control, and system monitoring. -
Unattended operation support
Suitable for extended analytical sequences and overnight GC runs.
Applications
-
Gas chromatography (GC)
Automated static headspace sampling for routine and high‑volume GC analysis. -
GC–mass spectrometry (GC/MS)
Headspace injection for volatile and semi‑volatile compound analysis where repeatability is required. -
Environmental laboratories
Analysis of volatile contaminants in water, soil, and environmental samples. -
Food and beverage testing
Headspace analysis for aroma compounds, solvents, and volatile residues. -
Petrochemical and chemical analysis
Automated headspace sampling for fuels, solvents, and chemical intermediates. -
Quality control and contract laboratories
Batch processing of samples in multi‑user environments requiring consistent analytical conditions.
Product Brochure:
HTA 2000H Headspace Autosampler Brochure hta-2000h-headspace-autosampler-brochure.pdf
FAQ
- What type of sampling does the HTA 2000H perform?
The HTA 2000H is designed for static headspace sampling, where volatile compounds are extracted from the headspace above a sample prior to GC or GC/MS analysis. - How many samples can be processed in one sequence?
The system supports up to 42 samples loaded in a removable vial rack, enabling extended batch runs. - What vial sizes are supported?
The HTA 2000H is typically used with 20 mL vials, with optional support for smaller vial sizes depending on configuration. - Is the system suitable for unattended operation?
Yes. The HTA 2000H is commonly used for unattended and overnight analytical runs once a sequence is programmed. - What types of laboratories use this autosampler?
The HTA 2000H is used in environmental, food and beverage, petrochemical, pharmaceutical, quality control, and contract laboratories performing routine headspace analysis.
