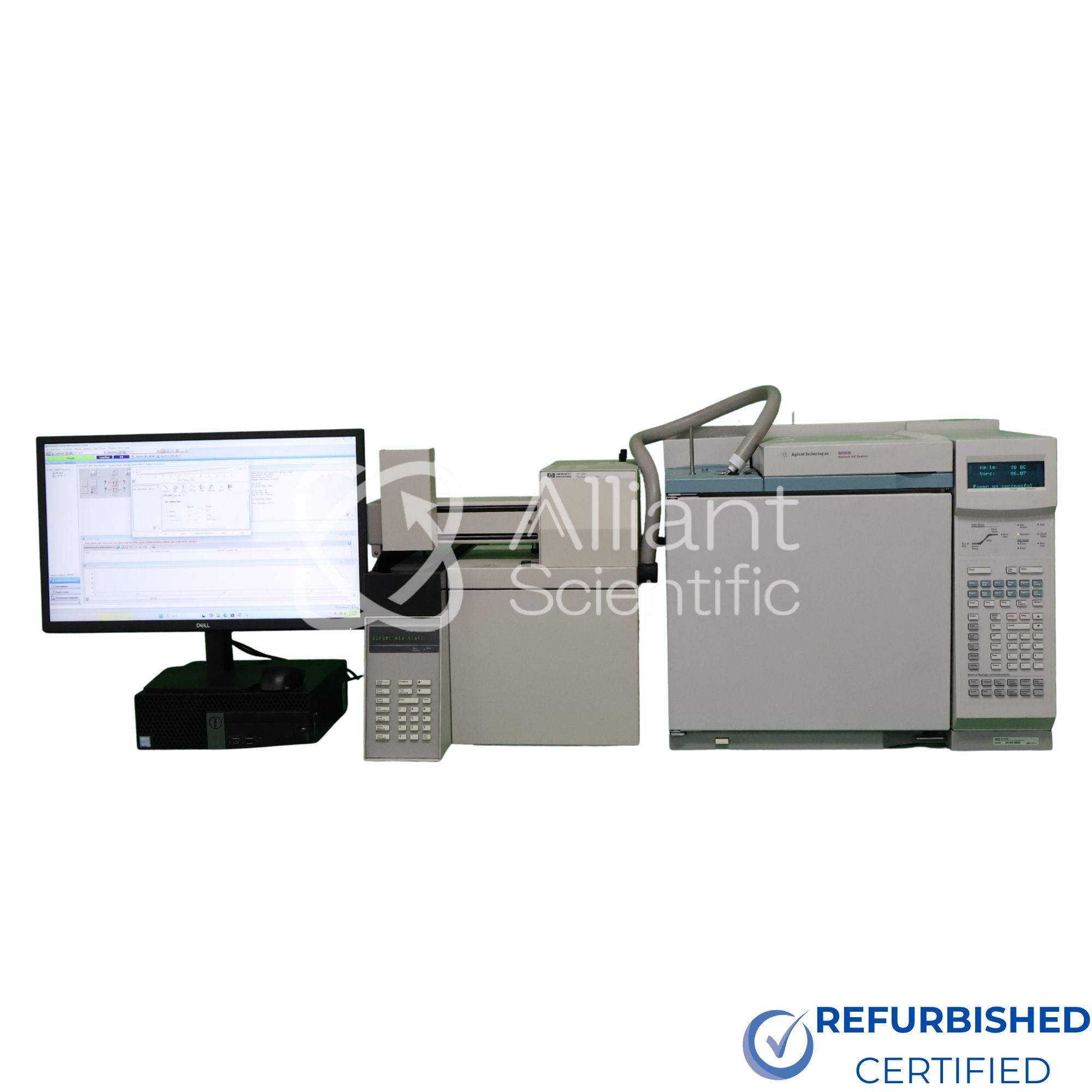

Agilent 6890N GC with 7694 Headspace Sampler

Name: Agilent 6890N GC with 7694 Headspace Sampler - Alliant Scientific
Price: 6900.00 USD
Availability: InStock

Listing #:LS-006944

Category:Gas Chromatography (GC)

Brand:Agilent

Model:6890N, 7694

Availability:In Stock

Condition:Refurbished

Warranty:90 Days

Onsite Installation:Available upon request

$6,900.00

In Stock

Make an Offer

Agilent 6890N GC with 7694 Headspace Sampler — 6890N GC with S/SL inlet, FID, and a 44-vial automated headspace sampler for volatile analysis. Refurbished and tested by Alliant Scientific.

Category: Gas Chromatography (GC) Tags: 7694 headspace sampler, Agilent 6890N, Agilent 7694, blood alcohol analysis, GC FID, GC with headspace sampler, headspace GC FID, Refurbished GC, residual solvent analysis, volatile organic analysis Brand: Agilent

Request for Quote

Description

Agilent 6890N GC with 7694 Headspace Sampler Overview

This system pairs an Agilent 6890N gas chromatograph with an Agilent 7694 Headspace Sampler for automated analysis of volatile compounds in liquid and solid samples. The GC is configured with one split/splitless (S/SL) inlet.

The 7694 Headspace Sampler runs up to 44 samples in sequence without operator attention. Its vial oven holds six 10 mL or 20 mL vials and heats from 40 to 200 °C. The valve and loop zone is set from 50 to 200 °C, and sample moves to the GC through a heated transfer line. Up to four methods can be stored on the sampler.

Headspace sampling introduces only the vapor above the sample, which keeps non-volatile matrix out of the inlet and column. This configuration suits residual solvent, blood alcohol, and volatile organic analysis.

This refurbished Agilent 6890N GC with 7694 Headspace Sampler has been fully tested and verified to be in proper working condition by Alliant Scientific.

Includes:

Agilent 6890N GC (G1530N)
- 1 Split/Splitless (S/SL) Inlet
- 1 Flame Ionization Detector (FID)
Agilent 7694 Headspace Sampler (G1290A)
- 44-Vial Sample Tray
- Sample Transfer Line
Data System
90-Day Warranty

Disclaimer: All brand names and trademarks are the property of their respective owners and are used for identification only. We are not an authorized dealer. Software, if included, is not transferable or upgradable.

Looking for Other GC Systems?

Browse our full GC inventory for other configurations.

Listing last updated: October 2026.

Technical Specifications

Manufacturer	Agilent Technologies
GC Model	6890N Network GC (G1530N)
Inlet	1 split/splitless (S/SL) inlet
Inlet Maximum Temperature	450 °C
Total Flow Setting Range	0 to 200 mL/min N2; 0 to 1,000 mL/min H2 or He
Detector	1 flame ionization detector (FID)
FID Gas Control	EPC for air (0 to 800 mL/min), H2 (0 to 100 mL/min), and makeup gas, N2 or He (0 to 100 mL/min)
FID Flame Control	Flame-out detection with automatic reignition
Data Rate	Up to 200 Hz (peaks as narrow as 25 ms at half height)
Pneumatic Control	Electronic pneumatic control (EPC), 0.001 psi resolution
Oven Temperature Range	Ambient +4 °C to 450 °C
Oven Programming	20 ramps, 21 plateaus
Retention Time Repeatability	< 0.008% or < 0.0008 min
Headspace Sampler Model	7694 Headspace Sampler (G1290A)
Sample Tray Capacity	44 vials
Vial Oven Capacity	6 vials (10 mL or 20 mL)
Vial Oven Temperature Range	40 to 200 °C
Valve and Loop Temperature Range	50 to 200 °C
Stored Methods	Up to 4
Sample Transfer	Heated transfer line to GC inlet
Condition	Refurbished and tested
Warranty	90 days

Additional information

Availability	In Stock
Brand	Agilent
Condition	Refurbished
Onsite Installation	Available upon request
Warranty	90 Days
Model	6890N, 7694

Key Features

Flame Ionization Detector
Responds to hydrocarbons and other organic compounds, with flame-out detection and automatic reignition.
Automated Headspace Sampling
The 7694 runs up to 44 vials in sequence without operator attention.
Heated Vial Oven
Heats six 10 mL or 20 mL vials from 40 to 200 °C for thermal equilibration.
Heated Loop and Transfer Line
Loop zone is set from 50 to 200 °C, and sample moves to the inlet through a heated transfer line.
Stored Methods
The sampler stores up to four methods for repeat analyses.
Electronic Pneumatic Control
EPC meters carrier and detector gases for repeatable retention times.
Wide Oven Range
Programs up to 450 °C with 20 ramps and 21 plateaus.

Applications

Residual Solvent Analysis
Volatile solvents in pharmaceutical and polymer samples.
Blood Alcohol Analysis
Forensic and clinical ethanol determination by headspace GC-FID.
Volatile Organic Compounds
Environmental screening of VOCs in water and soil samples.
Food, Beverage, and Fragrance Testing
Volatile aroma and flavor compounds from solid and liquid matrices.

FAQ (Frequently Asked Questions)

What detector does this system have?

One flame ionization detector (FID).

How many inlets does this GC have?

One split/splitless (S/SL) inlet.

How many samples can the 7694 run unattended?

The sample tray holds 44 vials, and the vial oven holds six 10 mL or 20 mL vials at a time.

What temperature ranges does the headspace sampler cover?

The vial oven heats from 40 to 200 °C, and the valve and loop zone is set from 50 to 200 °C.

How is sample delivered to the GC?

Headspace vapor moves from the sampler to the GC inlet through a heated transfer line.

Does this system include a warranty?

Yes — this system ships with a 90-day warranty.
