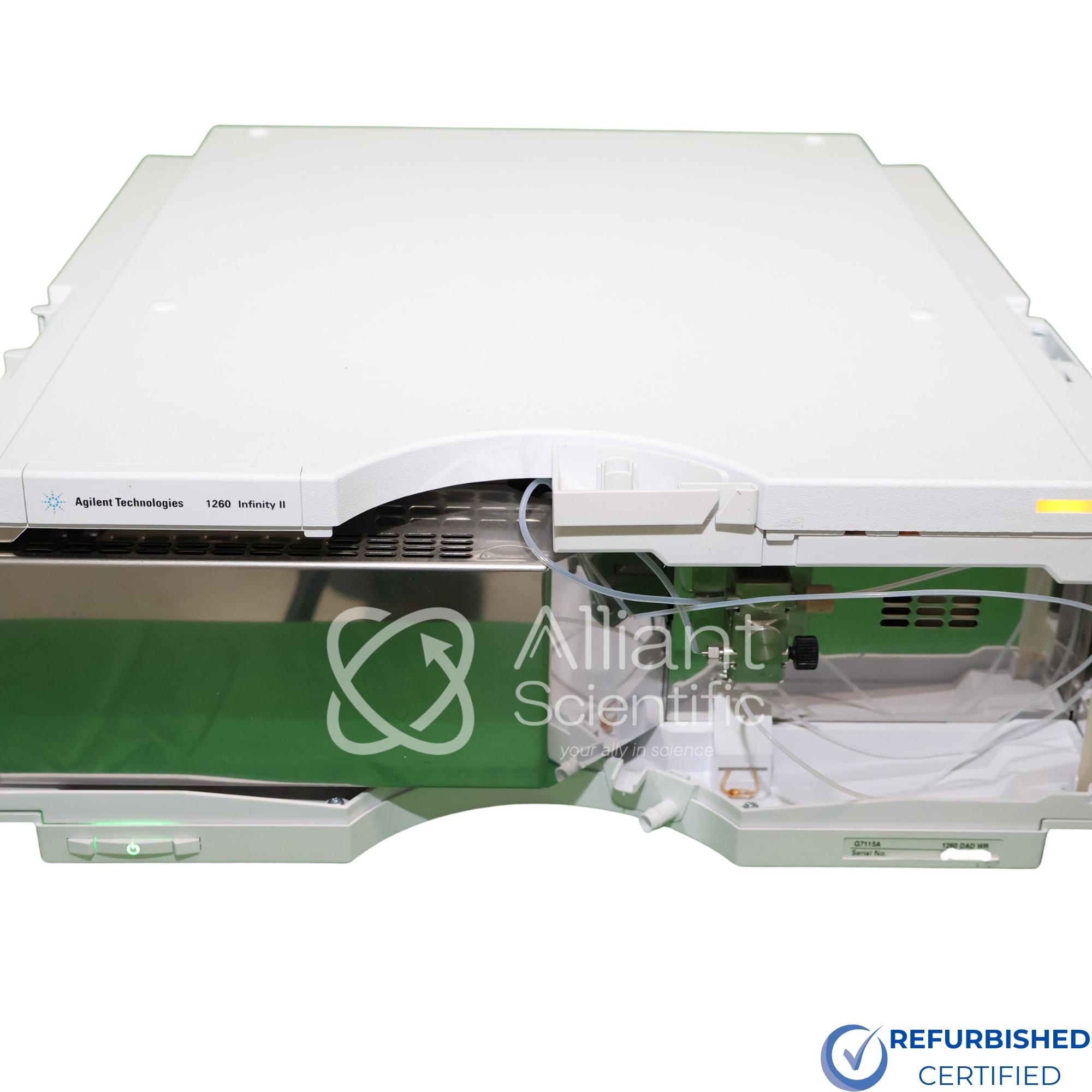

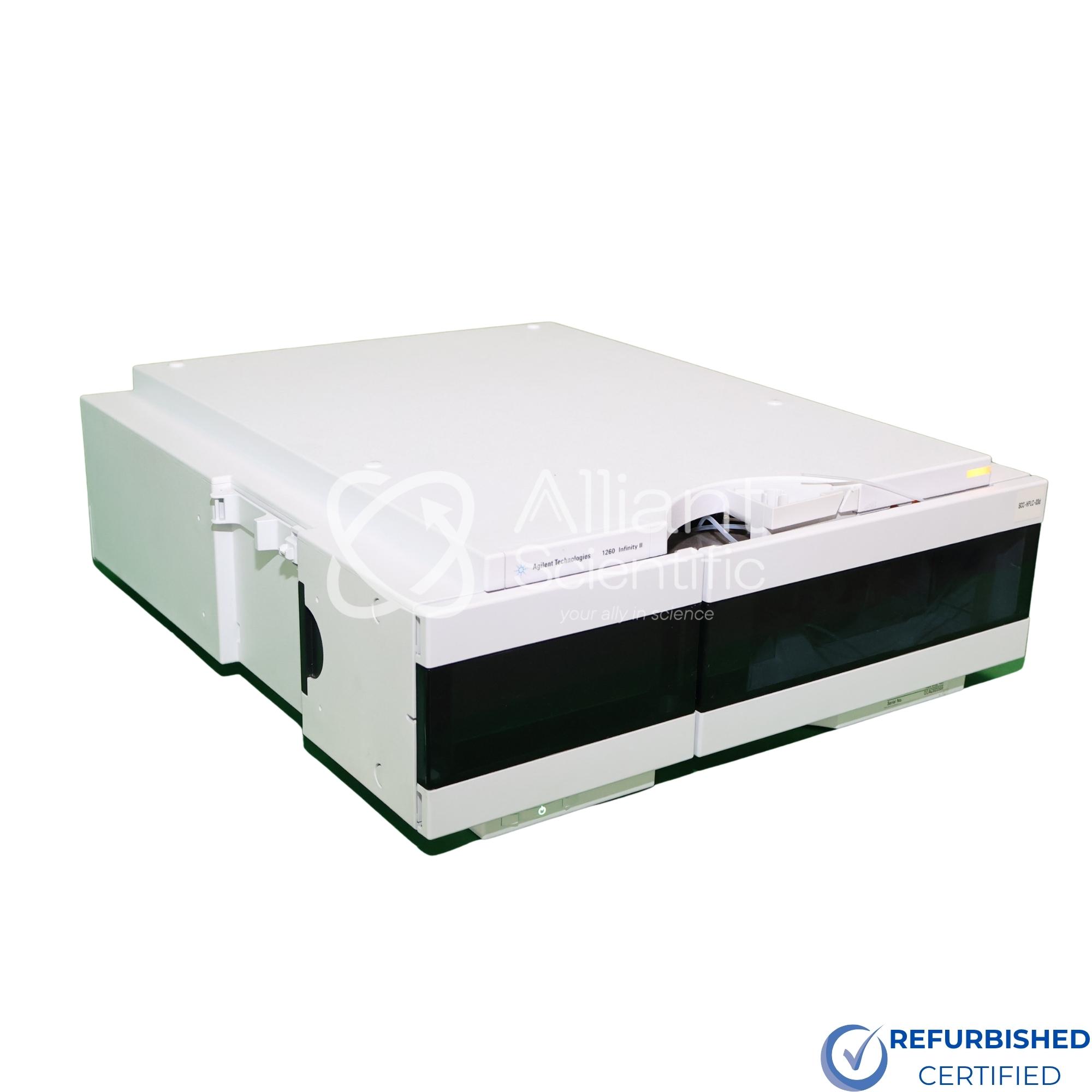

Agilent Infinity II G7115A DAD WR Diode Array Detector Overview
Agilent Infinity II G7115A DAD WR Diode Array Detector is a wide‑range UV‑Vis detector designed for Agilent 1260 Infinity II HPLC systems, providing full‑spectral and multi‑wavelength detection for analytical applications. It operates across a 190–950 nm wavelength range using a dual deuterium and tungsten lamp design and a 1024‑element photodiode array for accurate spectral acquisition.
With data acquisition rates up to 120 Hz, the G7115A DAD WR supports fast LC and UHPLC separations, enabling reliable peak detection, spectral analysis, and peak purity assessment. The detector allows simultaneous monitoring of up to eight wavelengths, programmable slit widths, and compatibility with a wide range of RFID‑enabled flow cells. It integrates seamlessly with Agilent OpenLab and ChemStation software, making it a versatile UV‑Vis detection solution for modern chromatography workflows. The Agilent Infinity II G7115A DAD WR Diode Array Detector is commonly used in pharmaceutical, environmental, and analytical laboratories requiring reliable UV‑Vis detection.
This refurbished Agilent Infinity II G7115A DAD WR has been fully tested and verified to be in proper working condition by Alliant Scientific
Includes:
- Agilent 1260 Infinity II Series G7115A DAD WR
- Power Cable
- 30 Day Warranty
Optional:
- Premium refurbishment available with extended warranty options
Disclaimer: All brand names and trademarks are the property of their respective owners and are used for identification only. We are not an authorized dealer. Software, if included, is not transferable or upgradable.
Technical Specifications
| Diode Array Detector (G7115A DAD WR) | |
| Detector Type | 1024-element photodiode array (DAD) |
| Wavelength Range | 190 – 950 nm |
| Light Sources | Deuterium (UV) and Tungsten (Vis) lamps |
| Data Acquisition Rate | Up to 120 Hz |
| Simultaneous Wavelengths | Up to 8 wavelengths |
| Wavelength Accuracy | ± 1 nm (self-calibration with deuterium lines) |
| Wavelength Verification | Built-in holmium oxide filter |
| Slit Widths | 1, 2, 4, 8, 16 nm (programmable) |
| Short-Term Noise (ASTM) | < ±0.7 × 10⁻⁵ AU at 254 and 750 nm |
| Drift | < 0.9 × 10⁻³ AU/h at 254 nm |
| Linear Absorbance Range | > 2 AU (5%) at 265 nm |
| Flow Cell Support | Analytical, semi-micro, micro, nano, preparative, high-pressure, and SFC (RFID-enabled) |
| Dimensions (H × W × D) | 140 × 396 × 436 mm (5.5 × 15.6 × 17.0 in) |
| Weight | 12 kg (26.5 lb) |
| Power Requirements | 100 – 240 V, 50/60 Hz, ~100 W |
Additional information
| Availability | |
|---|---|
| Brand | |
| Condition | |
| Model | |
| Onsite Installation | |
| Warranty |
Key Features
- Wide wavelength range: 190–950 nm
- 1024‑element photodiode array detection
- Up to 120 Hz full spectral acquisition
- Dual‑lamp design (deuterium + tungsten)
- Simultaneous detection of up to 8 wavelengths
- Programmable slit widths (1–16 nm)
- Built‑in holmium oxide filter for wavelength verification
- RFID‑enabled lamps and flow cells
- Front‑access design for easy maintenance
- Designed for Agilent 1260 Infinity II LC systems
Applications
- Pharmaceutical analysis and quality control
- Method development and validation
- Peak purity and spectral confirmation
- Environmental testing
- Food and beverage analysis
- Biopharmaceutical research
- Fast LC and UHPLC workflows
- Agilent Infinity II G7115A DAD WR User Manual (PDF)
agilent-infinity-ii-g7115a-dad-wr-diode-array-detector-user-manual
FAQ
Q: Is the Agilent G7115A compatible with older Agilent LC systems?
A: The G7115A is designed for the Agilent 1260 Infinity II platform and is not intended for legacy 1100/1200 systems without proper compatibility and control modules.
Q: How many wavelengths can be monitored simultaneously?
A: The detector supports simultaneous monitoring of up to eight wavelengths without loss of sensitivity.
Q: Does the G7115A support peak purity analysis?
A: Yes. Full spectral acquisition and high data rates make it ideal for peak purity and spectral confirmation.
Q: Are flow cells interchangeable?
A: Yes. The G7115A supports a wide range of RFID‑enabled flow cells, including analytical, micro, nano, preparative, and SFC options.
