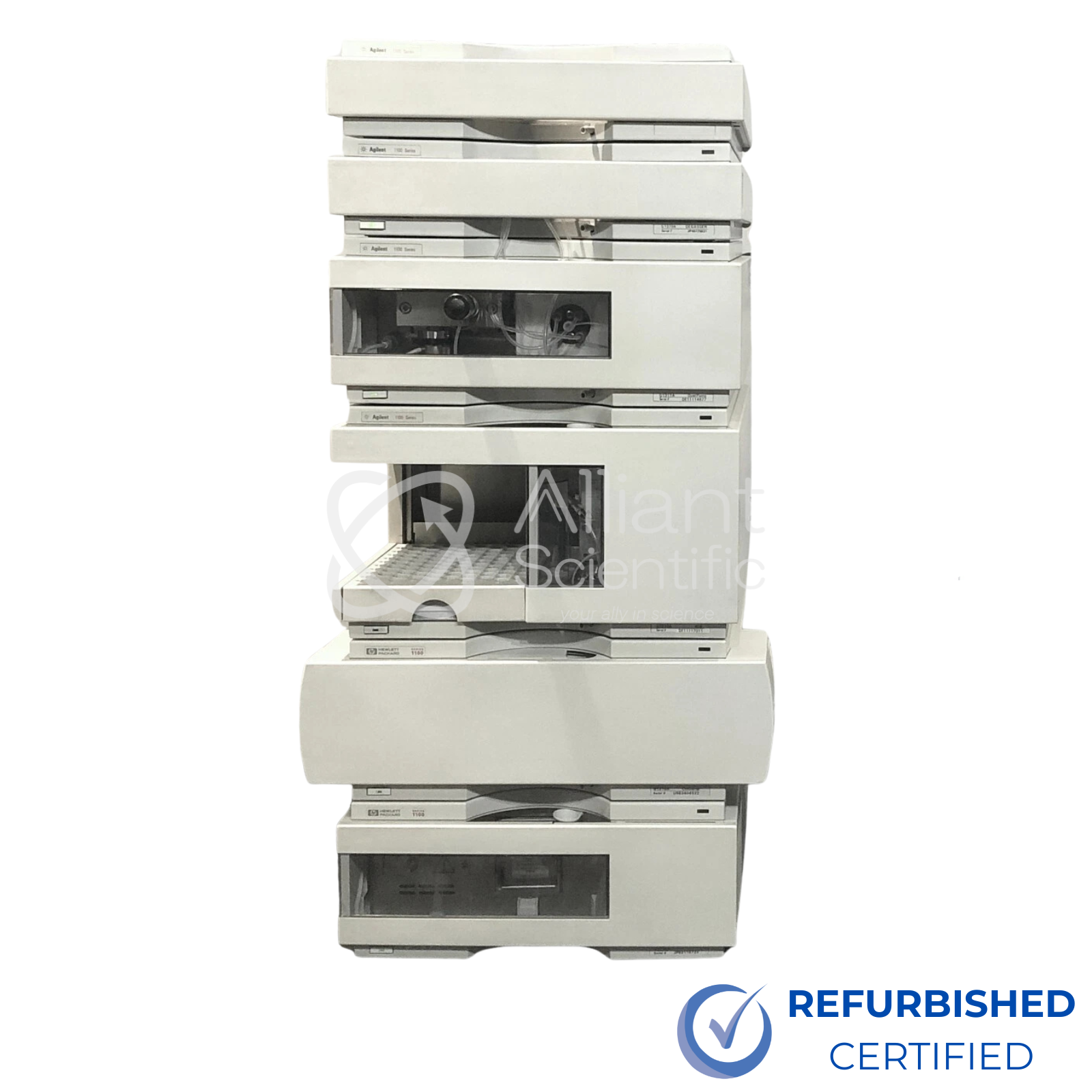

Agilent 1100 HPLC System with Quaternary Pump (G1311A) and FLD Detector (G1321A)

Agilent G1311A Quaternary Pump

• Pump Type: Low‑pressure quaternary gradient pump
• Maximum Pressure: 400 bar (5,800 psi)
• Flow Rate Range: 0.001 – 10.0 mL/min
• Flow Precision: ≤ 0.07% RSD
• Gradient Capability: Up to 4 solvents
• Typical Applications: Gradient and isocratic HPLC methods
• Compatibility: Fully compatible with all Agilent 1100 Series modules

Agilent G1321A Fluorescence Detector (FLD)

• Detection Type: Fluorescence
• Excitation Wavelength Range: 200 – 700 nm
• Emission Wavelength Range: 200 – 700 nm
• Sensitivity: High sensitivity for trace‑level fluorescent compounds
• Light Source: Xenon flash lamp
• Application Focus: Pharmaceuticals, environmental, food, and biochemical analysis

Agilent G1313A Autosampler

• Injection Volume Range: 0.1 – 100 µL (programmable)
• Sample Capacity: Up to 100 vials (standard 2 mL)
• Injection Precision: ≤ 0.5% RSD
• Sample Cooling: Optional (depending on configuration)
• Carryover: < 0.01%

Agilent G1316A Thermostatted Column Compartment (TCC)

• Temperature Range: 10°C below ambient to 80°C
• Temperature Stability: ± 0.15°C
• Column Capacity: Up to 4 columns
• Heat Exchange: Active heating and cooling
• Purpose: Improved retention time reproducibility

Agilent G1322A Vacuum Degasser

• Number of Channels: 4
• Technology: Continuous vacuum degassing
• Flow Compatibility: Supports high‑flow HPLC operation
• Benefit: Reduced baseline noise and improved pump performance
