Description

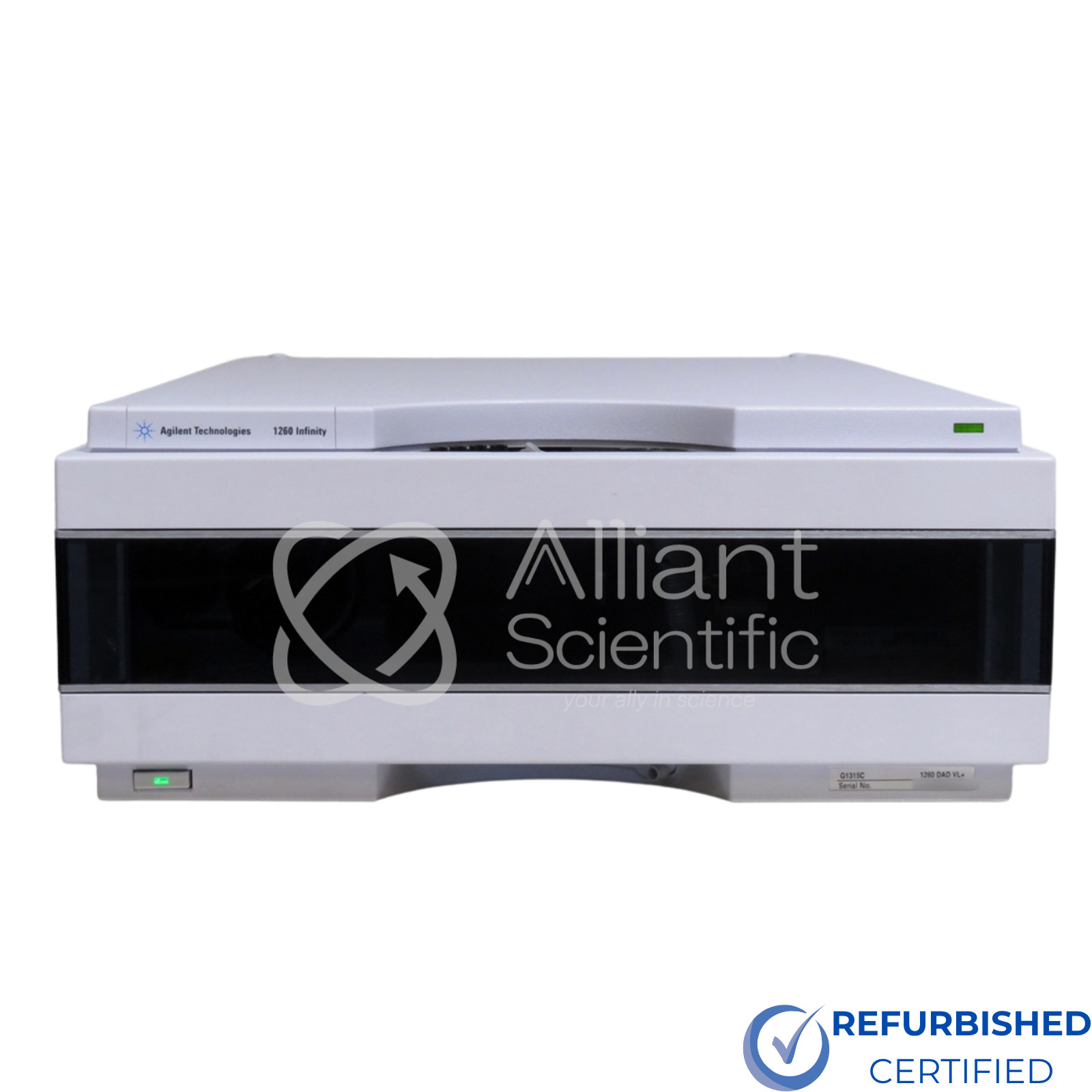

The Agilent 1260 Infinity Series G1315C DAD VL+ (Very Long Path) Diode Array Detector is a high‑sensitivity UV‑Vis detector designed to deliver reliable and reproducible multi‑wavelength detection in HPLC and UHPLC applications. Utilizing diode‑array technology, the G1315C captures full spectral data across the ultraviolet and visible range, supporting accurate quantitative analysis, compound identification, and peak purity assessment. The VL+ flow cell configuration is optimized for enhanced sensitivity, making this detector particularly well suited for trace‑level analysis and applications requiring improved detection limits. Integrated seamlessly with Agilent 1260 Infinity LC systems, the G1315C DAD VL+ provides stable baselines, excellent wavelength accuracy, and dependable performance across routine and advanced analytical workflows.
Agilent 1260 Infinity Series G1315C DAD VL+ is offered fully refurbished and tested, in working condition.
Includes:
- Agilent 1260 Series G1315C DAD VL+
- Power Cable
- 30 Day Warranty
Optional:
- Premium refurbishment available with extended warranty options
Disclaimer: All brand names and trademarks are the property of their respective owners and are used for identification only. We are not an authorized dealer. Software, if included, is not transferable or upgradable.
Technical Specifications
Detector Type
- Detection Method: UV‑Visible Diode Array Detection (DAD)
- Optical System: Deuterium lamp with VL+ enhanced low‑wavelength optics
Wavelength Performance
- Wavelength Range: Approximately 190–600 nm (VL+ optimized)
- Wavelength Accuracy: ±1 nm
- Wavelength Precision: ±0.1 nm
- Spectral Bandwidth: ~1.2 nm
Performance Characteristics
- Noise: Extremely low baseline noise (µAU range, method‑dependent)
- Drift: Minimal long‑term drift for stable quantitative results
- Data Acquisition: Simultaneous full‑spectrum and multi‑wavelength data
- Peak Purity Analysis: Fully supported
Flow Cell
- Standard Flow Cell: Analytical UV flow cell
- Path Length: Typically 10 mm
- Volume: Low‑dispersion design for analytical HPLC
Software & Integration
- Control Software:
- Agilent ChemStation
- Agilent OpenLab CDS
- System Compatibility:
- Agilent 1260 Series HPLC
- Agilent 1200 Series HPLC
Electrical & Physical
- Module Type: Stackable HPLC detector module
- Communication: Agilent CAN‑based system control
- Operating Environment: Analytical laboratory use
Typical Applications
- Pharmaceutical quality control (QC)
- Method development and validation
- Stability and impurity analysis
- Chemical and environmental analysis
- Food and beverage testing
- Academic and industrial chromatography laboratories
