Description

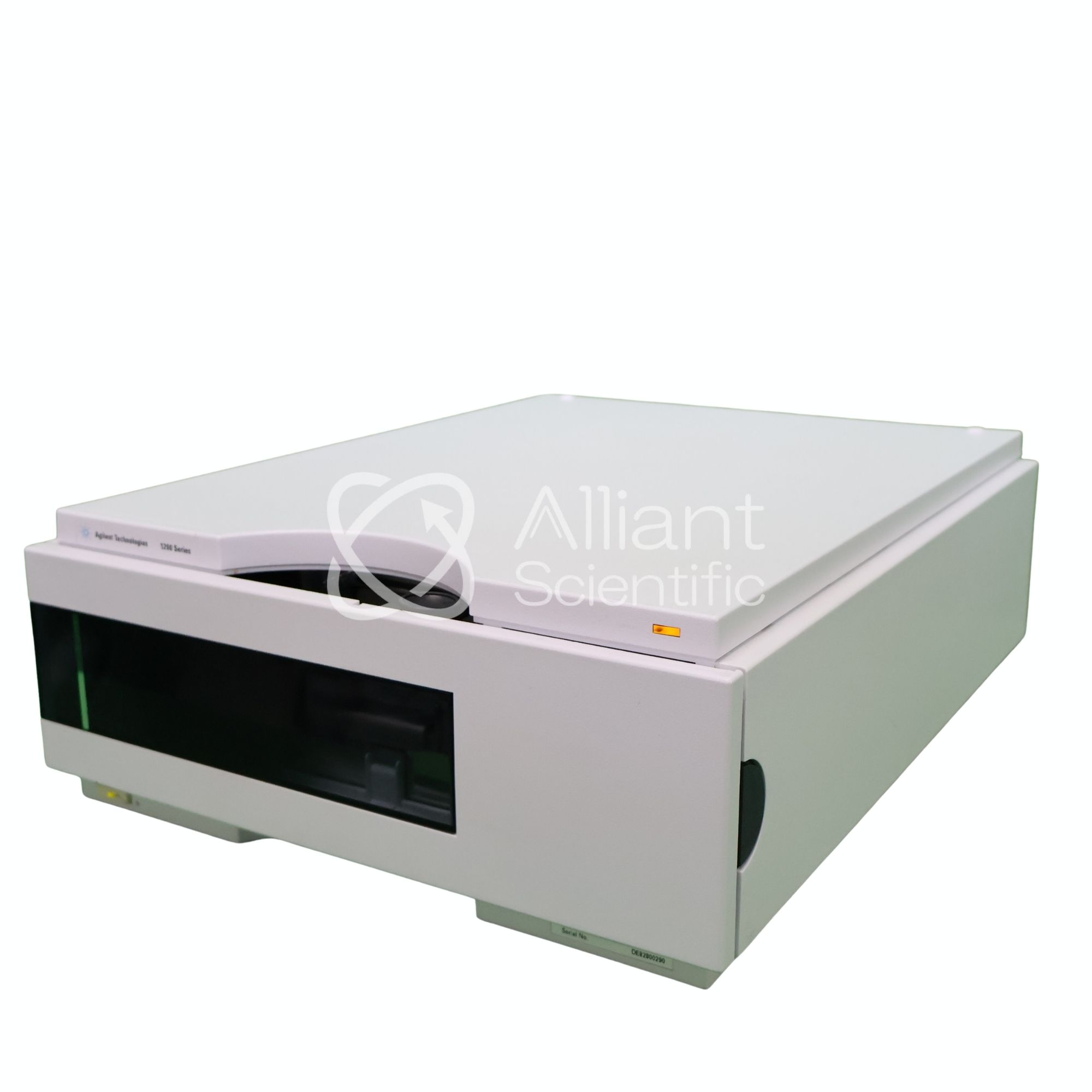

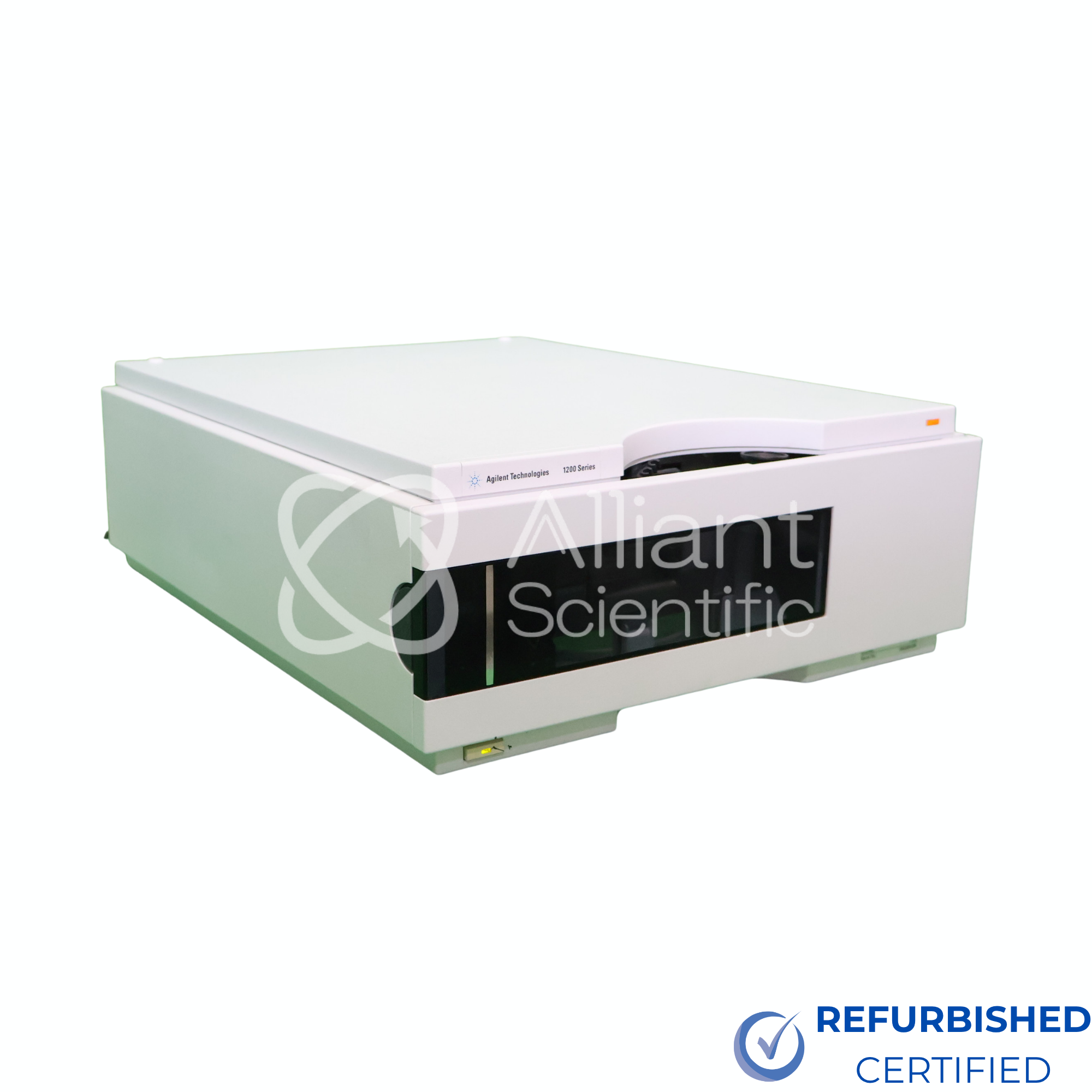

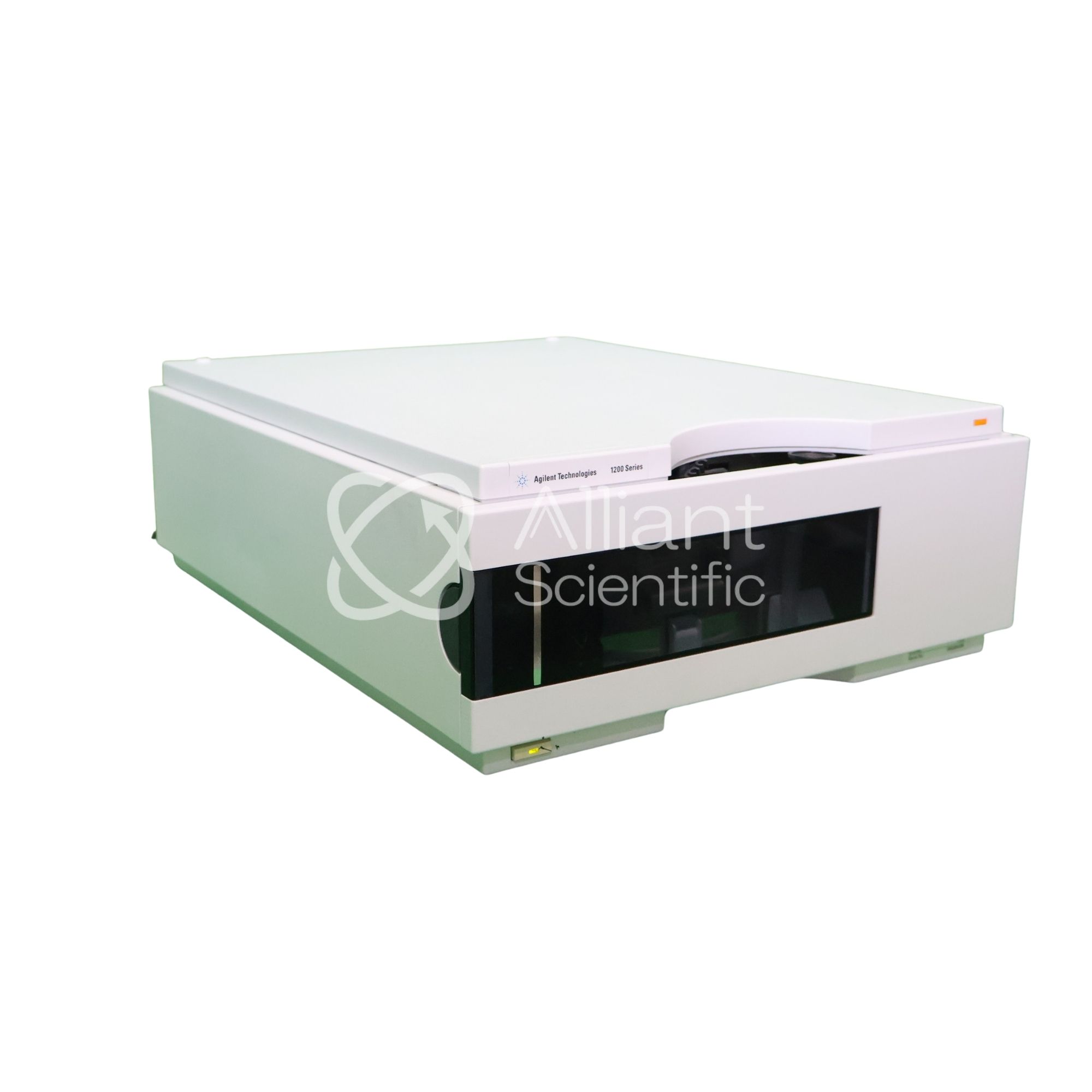

Agilent 1200 G1314D Variable Wavelength Detector (VWD) Overview
The Agilent 1200 G1314D Variable Wavelength Detector (VWD) is a reliable UV detector designed to deliver precise, single‑wavelength detection for high‑performance liquid chromatography (HPLC) applications. Optimized for routine quantitative analysis, the VWD provides stable baseline performance and consistent sensitivity for compounds with UV absorbance. The G1314D supports user‑selectable wavelengths to accommodate a wide range of analytical methods. With a wavelength range of 190 to 600 nm, the G1314D supports flexible method development and enables accurate detection of compounds with UV absorbance. Its deuterium lamp provides stable light output, while the optical system ensures excellent reproducibility and low drift.
This Agilent 1200 G1314D Variable Wavelength Detector is offered fully refurbished and tested, in working condition.
Includes:
- Agilent 1200 Series G1314D Variable Wavelength Detector (VWD)
- Power Cord
- 30-Day Warranty
Optional:
- Premium refurbishment available with extended warranty options
Disclaimer: All brand names and trademarks are the property of their respective owners and are used for identification only. We are not an authorized dealer. Software, if included, is not transferable or upgradable.
Technical Specifications
| Agilent 1200 G1314D Variable Wavelength Detector (VWD) | |
| Wavelength Range | 190 – 600 nm |
| Light Source | Deuterium lamp |
| Data Rate | Up to 20 Hz |
| Detection Type | UV single wavelength |
| Operating Temperature | 0 – 55 °C |
| Dimensions (H × W × D) | 140 × 345 × 435 mm |
| Weight | Approx. 11 kg |
| Power | 100 – 240 V, 50/60 Hz |
| Compatibility | Agilent 1200 Series HPLC |
Additional information
| Availability | |
|---|---|
| Brand | |
| Condition | |
| Model | |
| Onsite Installation | |
| Warranty |
Key Features
- Variable wavelength detection from 190–600 nm for flexible HPLC methods
- Stable deuterium lamp for consistent UV output
- Low noise and excellent baseline stability for accurate analysis
- User-selectable wavelengths for optimized detection
- Compact, stackable design compatible with Agilent 1200 systems
- Reliable performance for routine and research applications
- Data acquisition up to 20 Hz for standard HPLC workflows
“
Applications
- Pharmaceutical analysis and quality control
- Environmental testing and monitoring
- Food and beverage safety analysis
- Chemical compound identification
- Academic and research laboratories
- Routine HPLC UV detection methods
Frequently Asked Questions
What is the wavelength range of the Agilent G1314D?
The detector operates from 190 to 600 nm, supporting a wide range of UV-based analyses.
What type of lamp is used?
The system uses a deuterium lamp for stable UV light output and reliable performance.
Is this suitable for routine HPLC analysis?
Yes, it is designed for routine quantitative workflows with consistent and reproducible results.
Can it integrate with other Agilent modules?
Yes, it is fully compatible with Agilent 1200 Series HPLC systems.
What types of compounds can it detect?
It detects compounds that absorb UV light, including many pharmaceuticals and organic molecules.
