Description

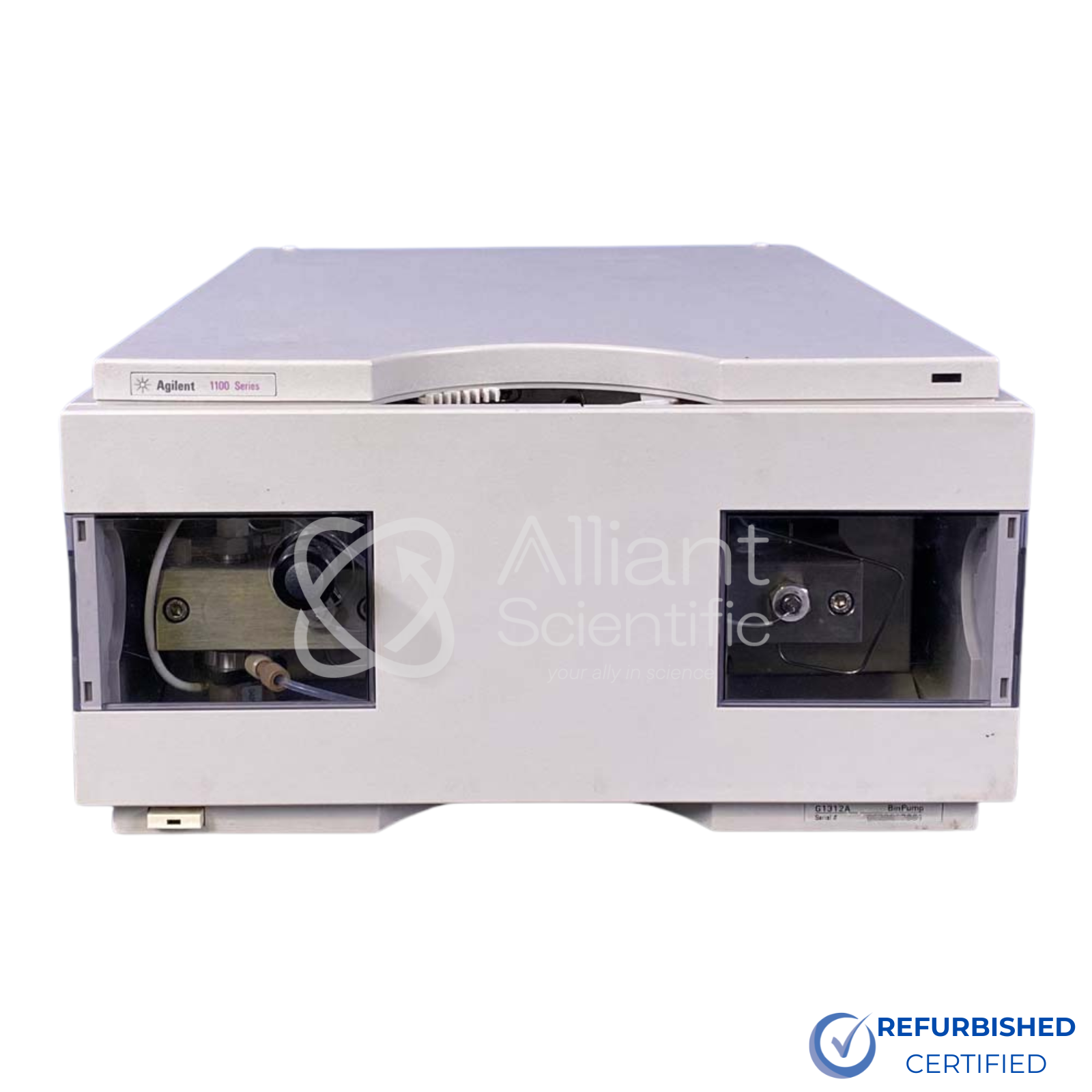

The Agilent 1100 G1312A Binary Pump is a reliable high‑performance liquid chromatography (HPLC) solvent delivery module designed to provide accurate, stable, and reproducible binary gradient flow for analytical applications. This pump supports precise mixing of two mobile phases, making it well suited for routine and advanced chromatographic methods. Integrated seamlessly with Agilent 1100 Series HPLC systems, the G1312A Binary Pump delivers consistent flow performance and dependable gradient formation, supporting high‑quality separations across a wide range of analytical workflows.
This Agilent 1100 G1312A Binary Pump is being offered fully refurbished and tested, in working condition, and is suitable for immediate laboratory use.
Includes:
- Agilent 1100 G1312A Binary Pump
- Power Cable
- 30-Day Warranty Coverage
Â
Disclaimer: All brand names and trademarks are the property of their respective owners and are used for identification only. We are not an authorized dealer. Software, if included, is not transferable or upgradable.
TECHNICAL SPECIFICATIONS
Agilent 1100 G1312A Binary Pump
- Pump type: Binary HPLC pump (high‑pressure mixing)
- Hydraulic system: Dual‑piston, serially arranged pump with variable stroke drive and active inlet valves
- Flow rate range: 001 – 10.0 mL/min
- Usable flow range: 1 – 10.0 mL/min
- Flow accuracy: ±1% or ±10 µL/min (whichever is greater)
- Flow precision: ≤0.07% RSD or ≤0.02 min SD (retention time based)
- Maximum pressure: Up to 400 bar (40 MPa) at standard flow conditions
- Gradient formation: High‑pressure binary mixing
- Composition range: 0–100% A / 0–100% B
- pH range: 0 – 12.5 (avoid stainless‑steel‑corrosive acids below pH 2.3)
- Control software: Agilent ChemStation for LC systems
- System compatibility: Agilent 1100 Series HPLC modules
Additional information
| Availability | |
|---|---|
| Condition | |
| Brand | |
| Model | |
| Onsite Installation | |
| Warranty |
