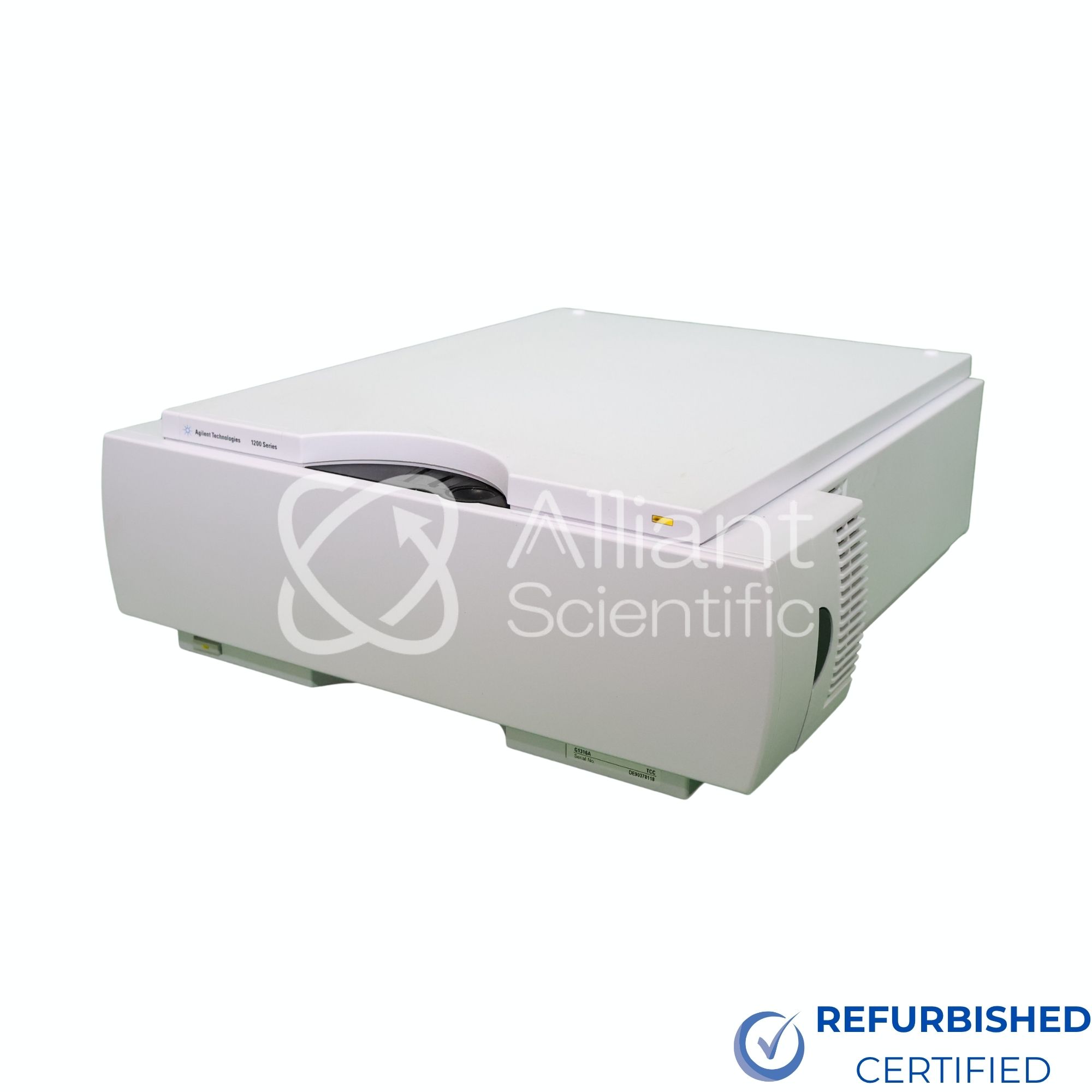

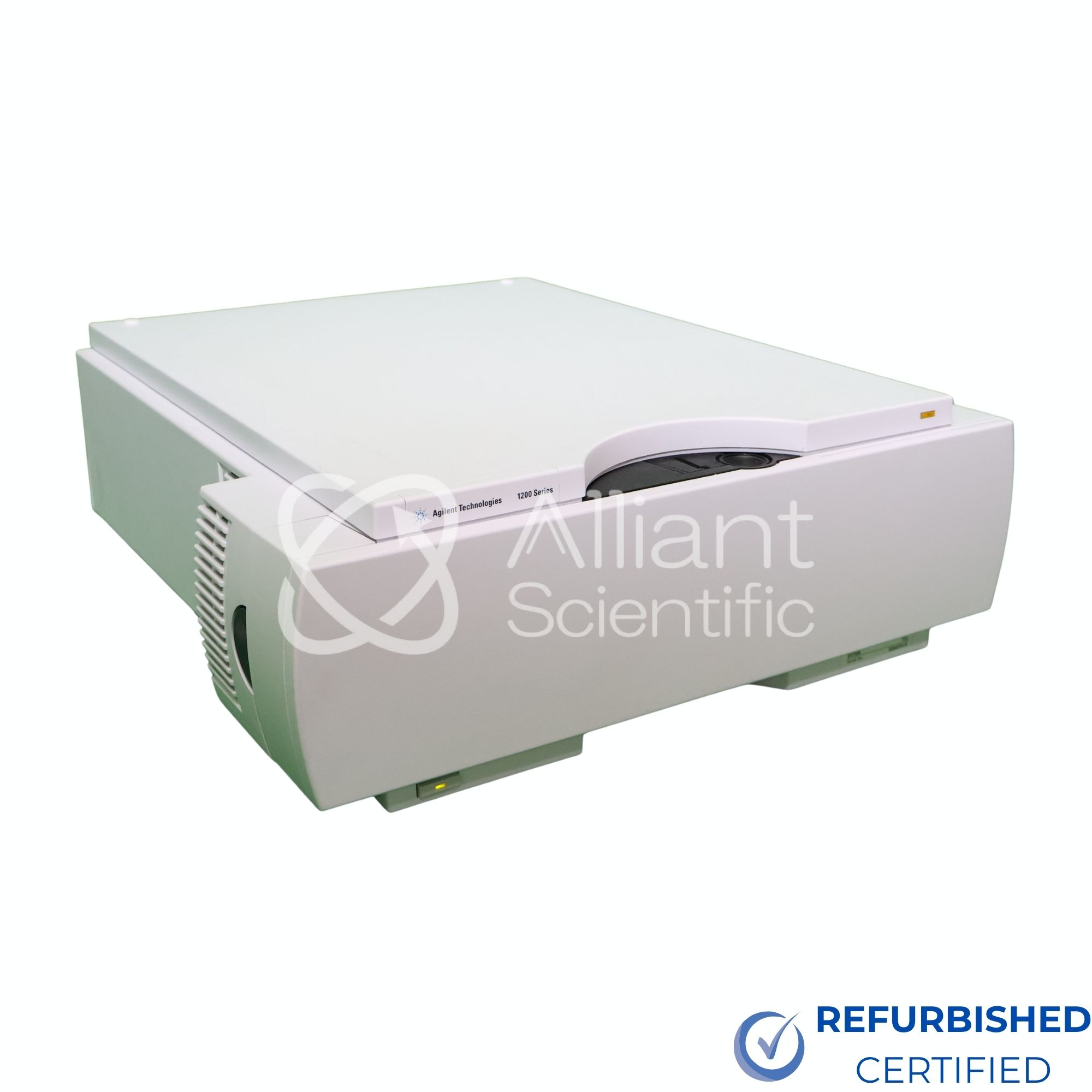

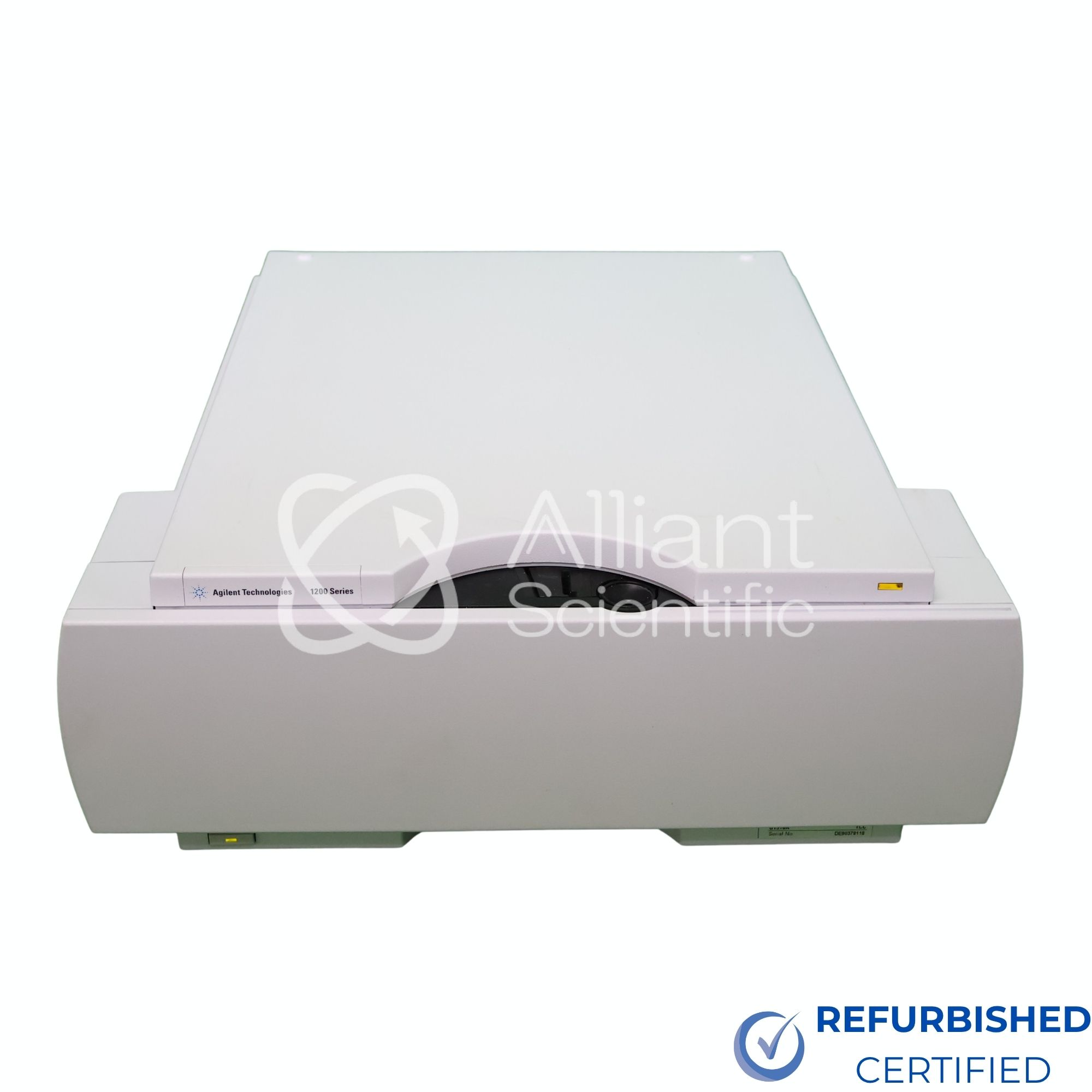

Agilent 1200 G1316A Thermostatted Column Compartment (TCC) Overview
The Agilent 1200 G1316A Thermostatted Column Compartment (TCC) is engineered to provide precise thermal control for HPLC columns, helping laboratories achieve consistent retention times and dependable chromatographic performance. By maintaining a stable temperature environment, it reduces variability caused by ambient conditions and improves overall data reproducibility.
Equipped with a Peltier heating and cooling system, this module enables fast and accurate temperature adjustments across a wide operating range—from 10°C below ambient up to 80°C—making it suitable for a variety of analytical methods. The unit is designed to hold up to three full-length columns (30 cm each), allowing users to streamline workflows and switch between methods more efficiently. Its dual heat exchanger design supports independent temperature control zones, offering greater flexibility for complex separations and method optimization.
With a low internal volume, the G1316A helps minimize peak dispersion, preserving analytical resolution and sensitivity. Additional features such as optional column switching valves and automated column identification improve usability, traceability, and compliance in regulated environments. Delivering tight temperature stability (±0.15°C), this thermostatted column compartment is an essential component for laboratories performing pharmaceutical testing, environmental analysis, and advanced research requiring reliable and repeatable HPLC results.
This refurbished Agilent 1200 G1316A TCC has been fully tested and verified to be in proper working condition by Alliant Scientific
Includes:
- Agilent 1200 G1316A TCC
- Power Cable
- 30- Day Warranty Coverage
Disclaimer:Â All brand names and trademarks are the property of their respective owners and are used for identification only. We are not an authorized dealer. Software, if included, is not transferable or upgradable.
Â
Technical Specifications
| Agilent 1200 Series G1316A Thermostatted Column Compartment (TCC) | |
| Temperature Range | 10 °C below ambient up to 80 °C |
| Temperature Stability | ± 0.15 °C |
| Temperature Accuracy | ± 0.8 °C (± 0.5 °C with calibration) |
| Heating/Cooling Method | Peltier-based heating and cooling system |
| Column Capacity | Up to 3 × 30 cm columns |
| Heat Exchangers | Dual independent heat exchangers for temperature zones |
| Internal Volume Contribution | Low dispersion design (~9 µL) |
| Warm-Up / Cool-Down Time | ~5 minutes from ambient to 40 °C |
| Valve Compatibility | Optional 2-position / 6-port switching valve (up to 600 bar) |
| Dimensions (H × W × D) | 140 × 410 × 435 mm (5.5 × 16 × 17 in) |
| Weight | Approx. 10.2 kg (22.5 lb) |
| Power Requirements | 100 – 240 V, 50/60 Hz |
| Connectivity | CAN, RS232, GPIB, APG remote interfaces |
Additional information
| Availability | |
|---|---|
| Brand | |
| Condition | |
| Model | |
| Onsite Installation | |
| Warranty |
Key Features
| Precise Temperature Control | Maintains stable column temperatures to improve retention time reproducibility |
| Peltier Heating & Cooling | Rapid and accurate temperature adjustments for method flexibility |
| Multi-Column Capacity | Supports up to three columns for efficient workflow and method switching |
| Dual Heat Exchangers | Allows independent temperature zones for advanced chromatographic methods |
| Low Dispersion Design | Minimizes band broadening with low internal volume contribution |
| Optional Valve Integration | Enables automated column switching and extended method capabilities |
| Column Identification | Supports automated tracking for GLP compliance and workflow efficiency |
| System Compatibility | Designed for seamless integration with Agilent 1100 and 1200 HPLC systems |
“
Applications
| Pharmaceutical Analysis | Improves retention time consistency for drug development and QC testing |
| Environmental Testing | Ensures stable chromatographic conditions for trace contaminant detection |
| Food Safety Analysis | Supports reliable detection of additives, residues, and contaminants |
| Chemical Research | Provides flexible temperature control for method development and optimization |
| Biotechnology Applications | Enhances separation reproducibility for biomolecules and complex samples |
Frequently Asked Questions (FAQ)
| What is the Agilent G1316A TCC used for? | It provides precise temperature control for HPLC columns, improving separation consistency and reproducibility. |
| What temperature range does it support? | The unit operates from 10 °C below ambient up to 80 °C. |
| How many columns can it hold? | It accommodates up to three columns, each up to 30 cm in length. |
| Does it support column switching? | Yes, it can be equipped with an optional switching valve for automated column selection. |
| Is it compatible with Agilent 1200 systems? | Yes, it integrates seamlessly with Agilent 1100 and 1200 Series HPLC systems. |
