Description

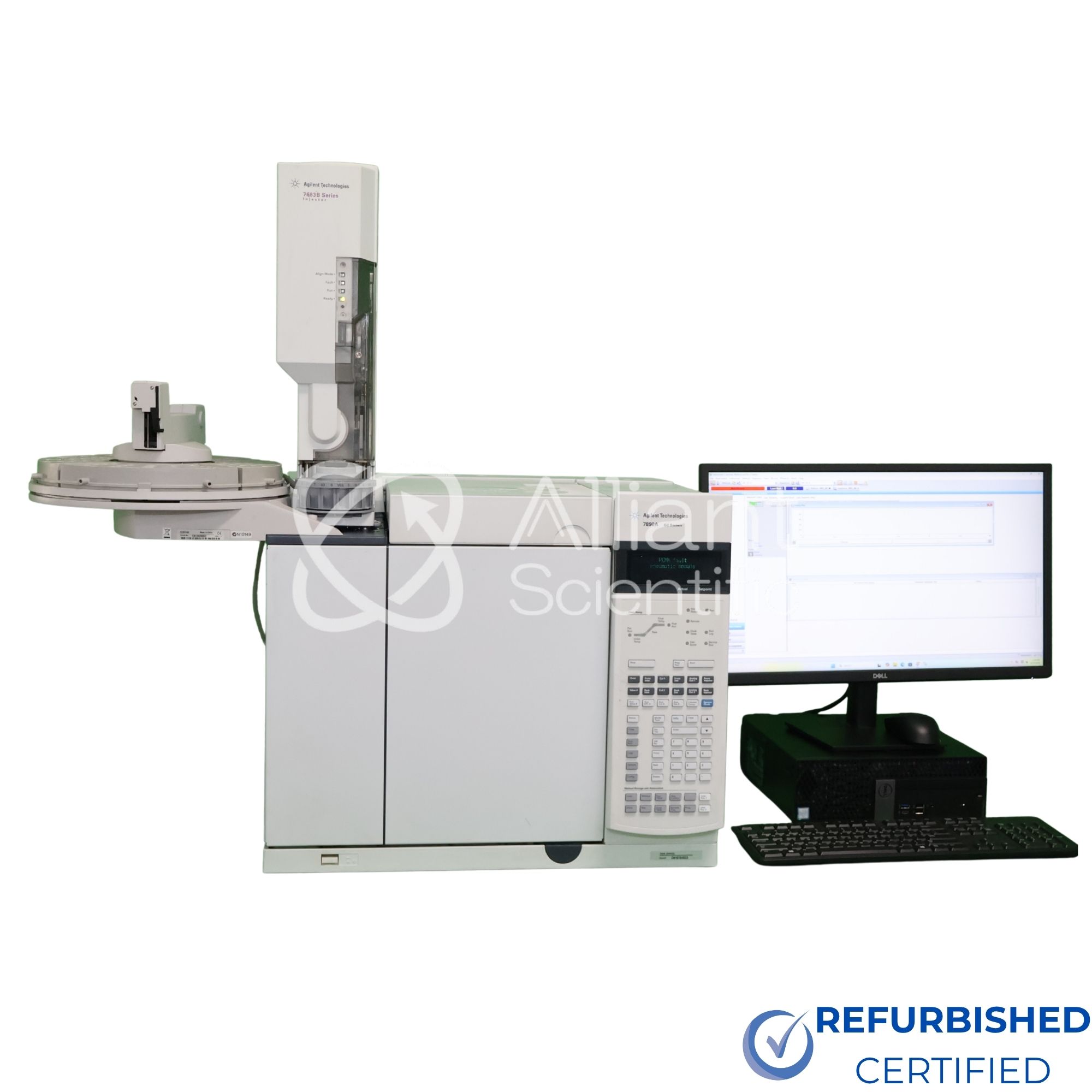

Agilent 7890A GC with ECD & 7683 Autosampler Overview
Agilent 7890A GC with ECD & 7683 Autosampler is a GC system configured with a Split/Splitless (SSL) inlet, G2397A Micro-Electron Capture Detector (ECD), and 7683 Series Autosampler for automated detection of halogenated and other electron-capturing compounds.
The ECD uses a sealed 15 mCi Nickel-63 source to generate a steady electron stream. As electron-capturing compounds pass through the detector cell, they absorb electrons in proportion to their concentration, producing a signal used to detect and quantify organochlorine pesticides, PCBs, and similar halogenated analytes at trace levels.

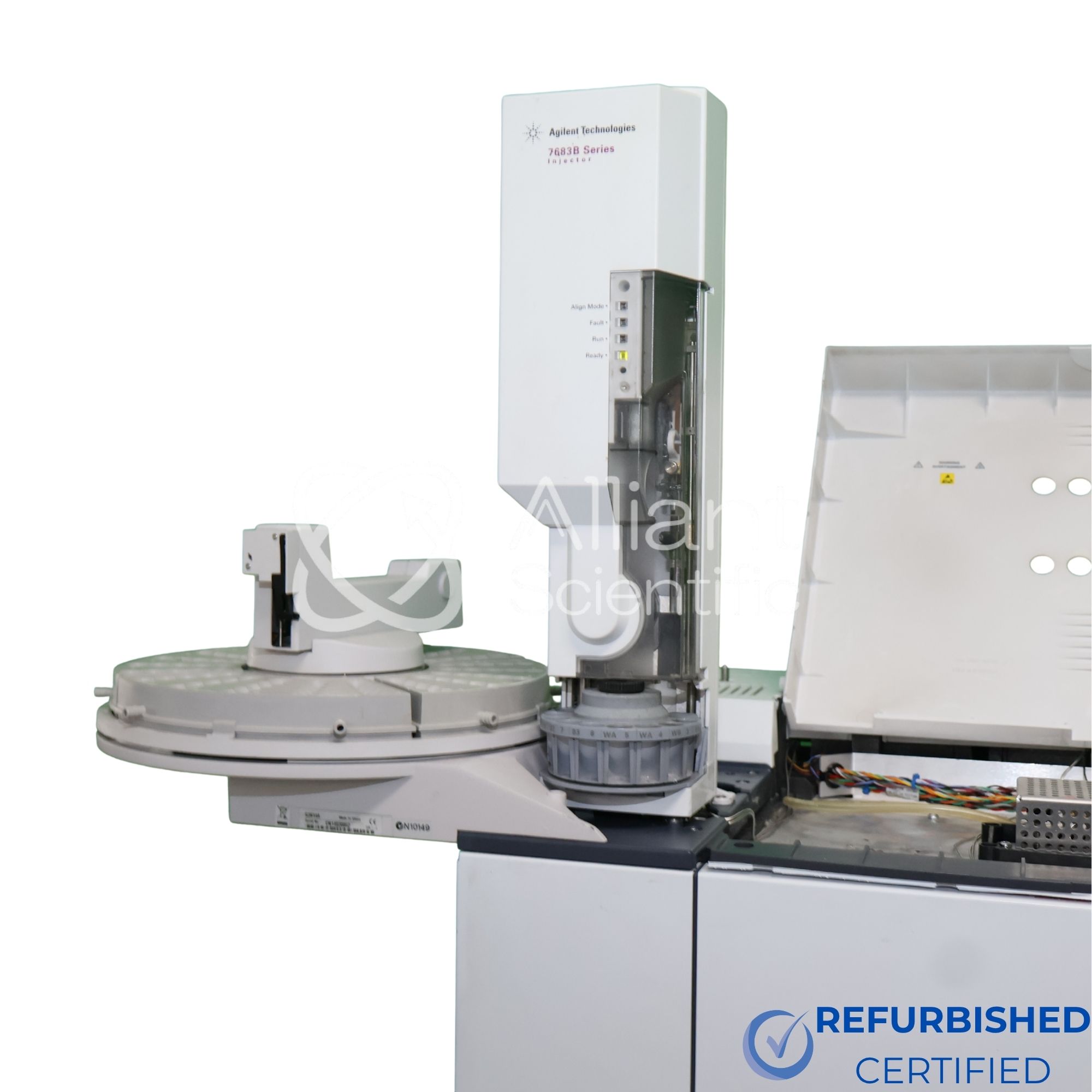

The 7683 Autosampler holds up to 100 vials with a tray or 8 vials on a high-density turret, with injection volumes from 0.1 to 50 µL and reproducibility under 0.5% RSD for 1 µL injections. Pre- and post-injection syringe rinsing with two wash solvents reduces sample carryover, and injector drive uses electronic motor actuation with position feedback, requiring no periodic mechanical adjustment.

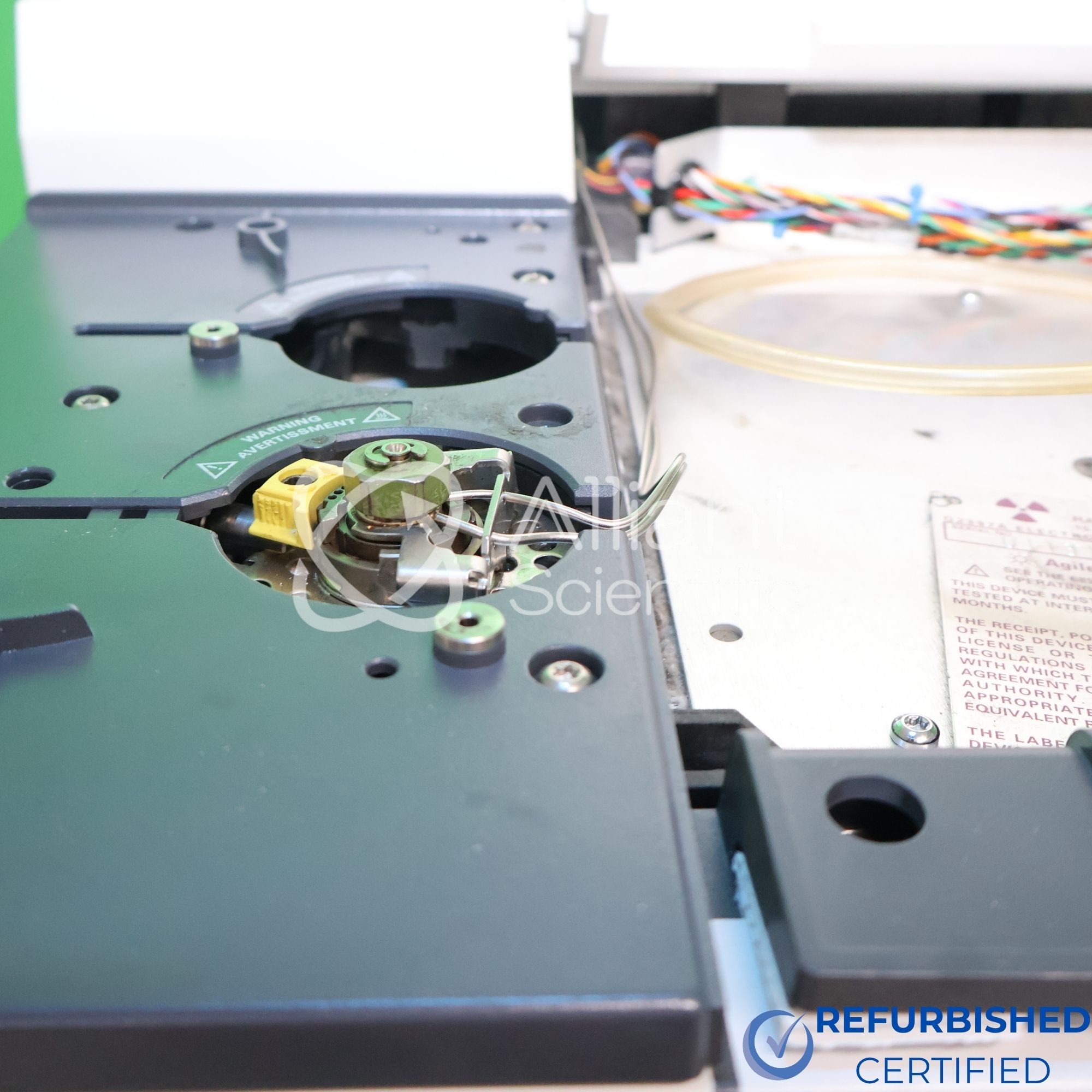

The SSL inlet uses a Turn-Top design for tool-free liner changes in under 30 seconds. 5th-generation Electronic Pneumatics Control (EPC) holds pressure setpoints within 0.001 psi.
This Agilent 7890A GC with ECD & 7683 Autosampler is offered fully refurbished and tested, in working condition, by Alliant Scientific.
Includes:
- Agilent 7890A Gas Chromatograph
- Split/Splitless (SSL) Inlet
- G2397A Micro-Electron Capture Detector (ECD)
- Agilent 7683 Autosampler
- G2913A Injector
- G2614A Tray
- Data System
- 90-Day Warranty
Disclaimer: All brand names and trademarks are the property of their respective owners and are used for identification only. We are not an authorized dealer. Software, if included, is not transferable or upgradable. Alliant Scientific maintains the required licensing to legally distribute and transfer ECD instruments to qualified end users.
Looking for Another GC Configuration?
See our Agilent 7890A GC with ECD & 7693 Autosampler, our Agilent 7890A GC with ECD (without autosampler), or browse our full Gas Chromatography inventory.
