Description

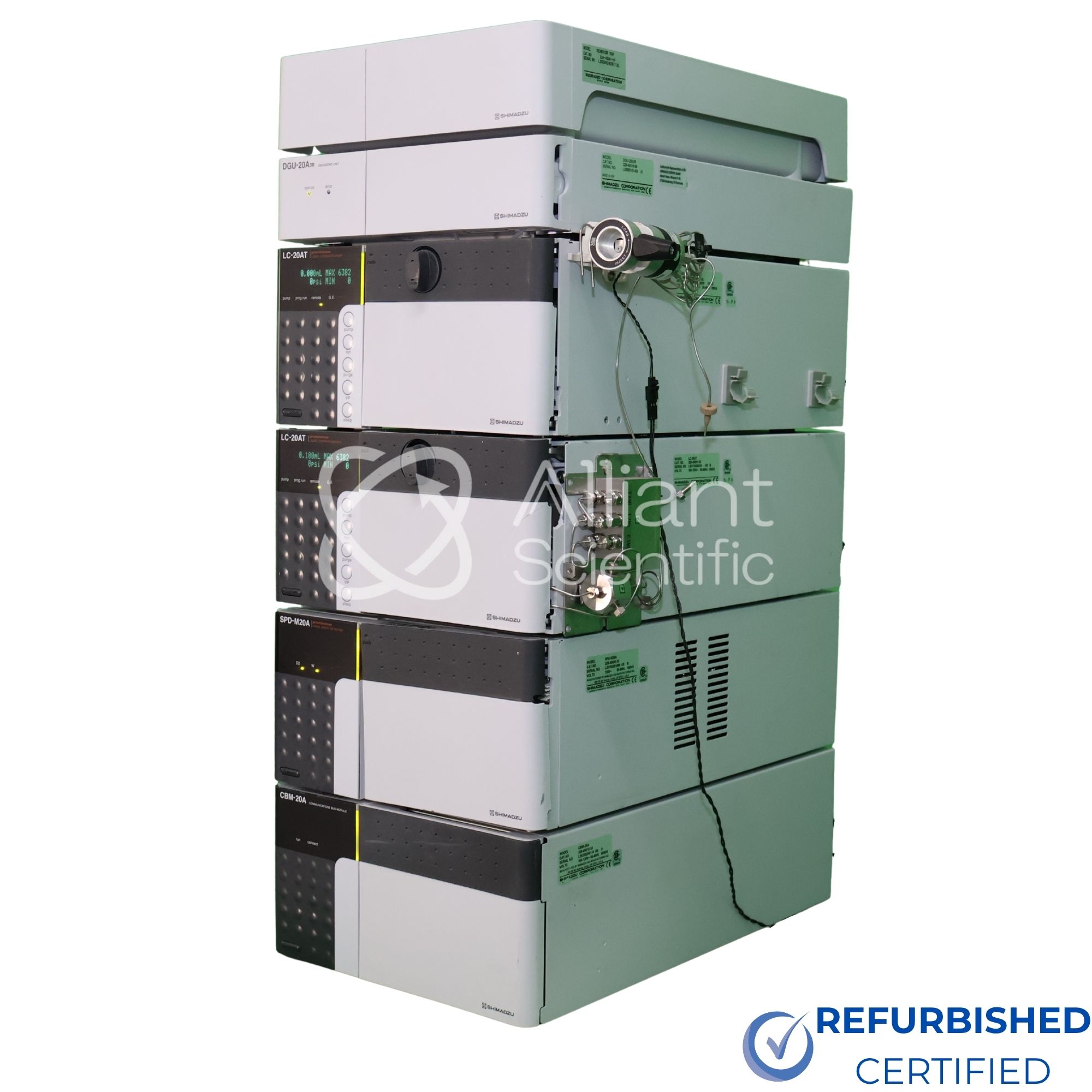

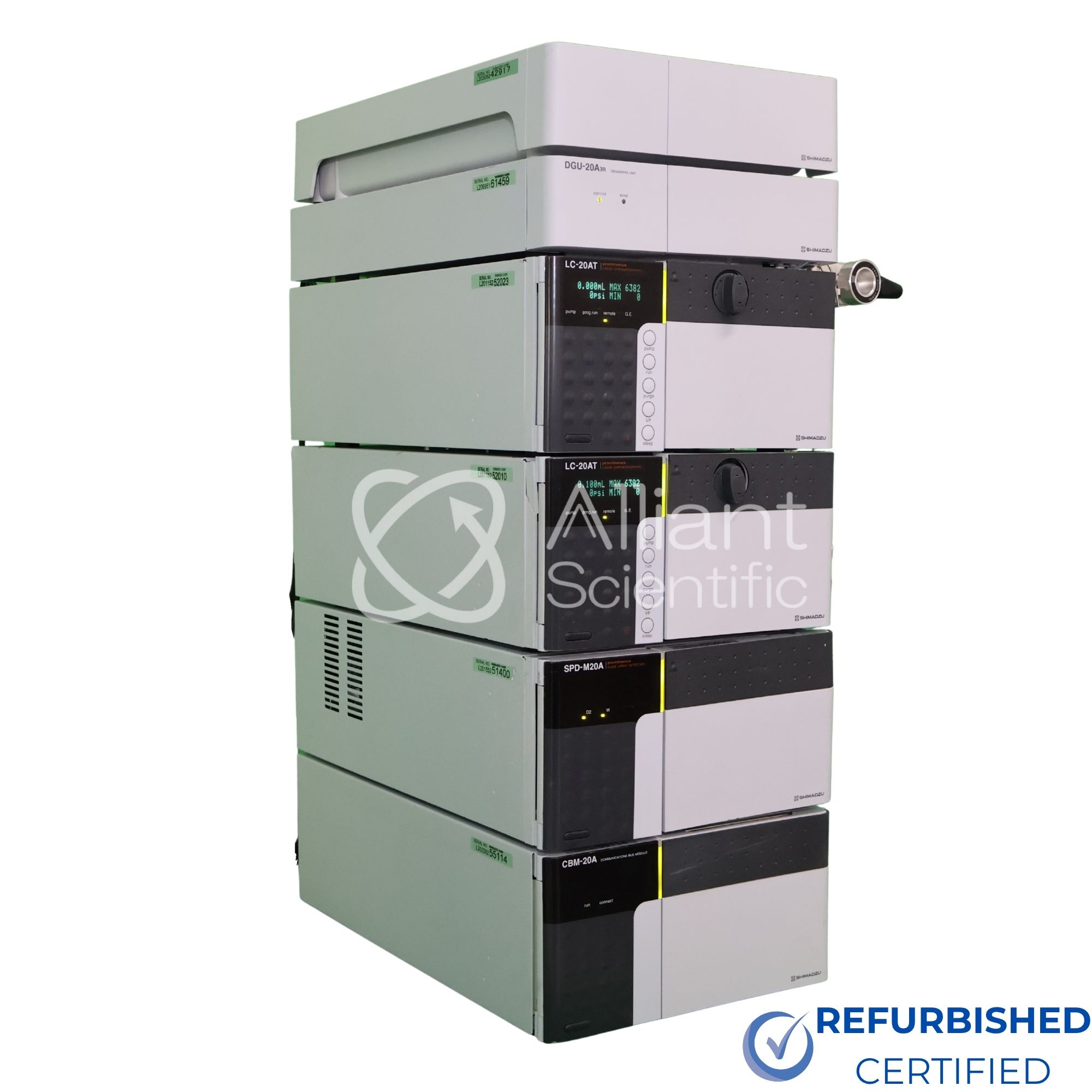

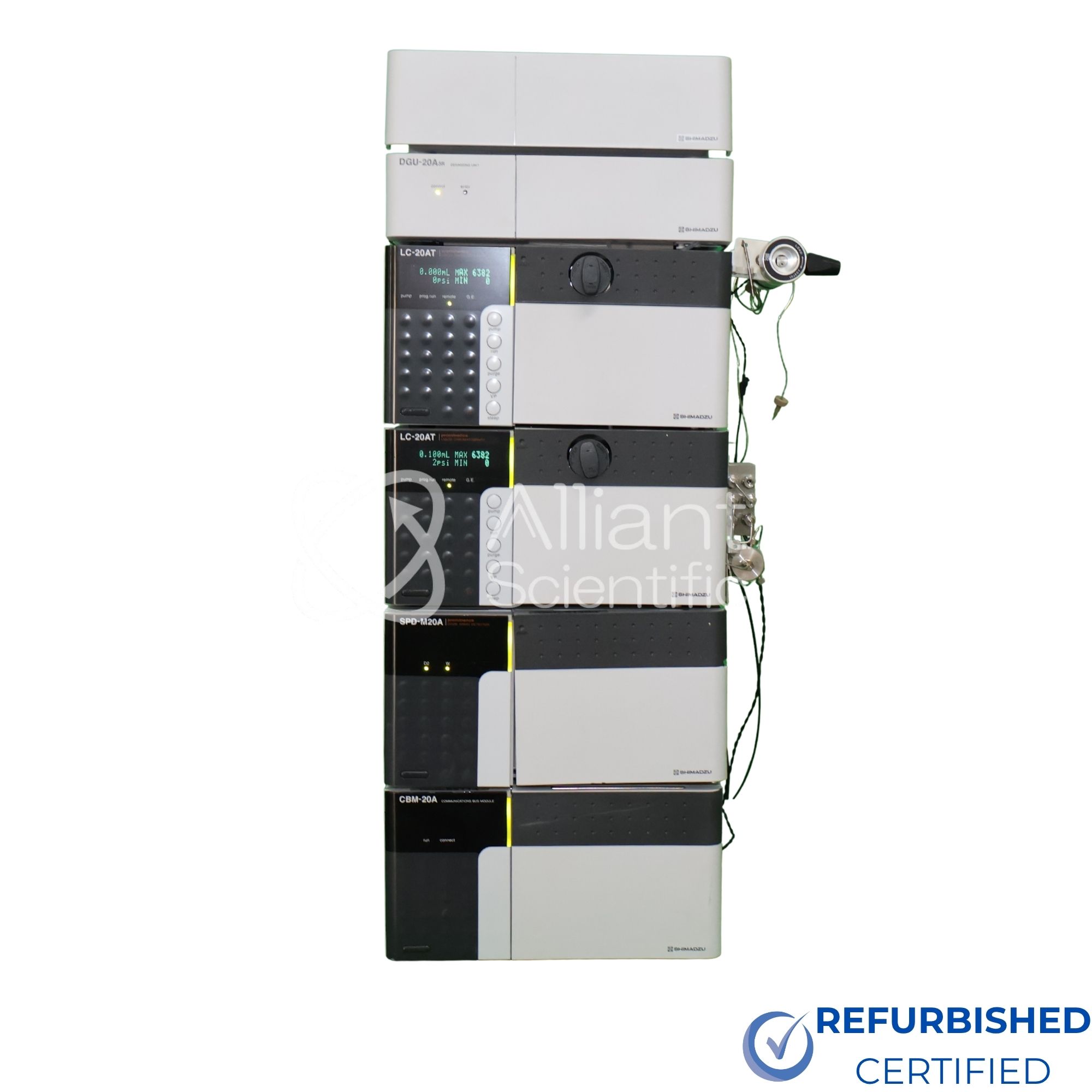

Shimadzu Prominence LC-20 Series HPLC System
Shimadzu Prominence LC-20 Series HPLC system is a modular high-performance liquid chromatography platform designed for precise, reliable, and reproducible analytical separations.
This configuration features a dual-pump setup for high-pressure binary gradient capability, enabling accurate solvent mixing and stable flow delivery. The Prominence platform is engineered for low pulsation and consistent performance, resulting in improved peak resolution and reproducibility in complex separations. Detection is performed using a diode array detector (DAD), allowing simultaneous multi-wavelength monitoring and full spectral acquisition. This enables confident compound identification, peak purity analysis, and quantitative measurement across diverse sample types. The system is optimized to deliver high sensitivity and stable baseline performance during extended analytical runs.
The integrated degassing unit ensures removal of dissolved gases from mobile phases, improving chromatographic stability and reducing baseline noise. Centralized system control through the communication bus module allows coordinated operation of all components within the system.
This refurbished Shimadzu Prominence LC-20 Series HPLC system is offered fully tested, in working condition by Alliant Scientific.
Includes:
- Shimadzu Prominence LC-20 Series HPLC system
- Solvent Tray
- DGU-20A3R Degassing Unit
- LC-20AT Pump (2)
- SPD-M20A DAD
- CBM-20A Communication Bus Module
- Manual Injection Valve
- Data System
- 30 Day Warranty Coverage
Disclaimer:Â All brand names and trademarks are the property of their respective owners and are used for identification only. We are not an authorized dealer. Software, if included, is not transferable or upgradable.
Technical Specifications
- System type: High-performance liquid chromatography (HPLC) system
- Platform: Shimadzu Prominence LC-20 series
- Pump configuration: Dual LC-20AT pumps
- Flow rate range: 0.001 to 10 mL/min
- Maximum pressure: Up to 40 MPa (400 bar)
- Gradient capability: High-pressure binary gradient
- Injector: Manual injection valve
- Detector: SPD-M20A diode array detector (DAD)
- Wavelength range: 190–800 nm
- Detection type: Multi-wavelength UV/Vis spectral detection
- Degasser: DGU-20A3R inline degassing unit
- Degassing channels: 3 solvent lines
- Controller: CBM-20A communication bus module
- Measurement capability: Full spectral acquisition and peak purity analysis
- System configuration: Modular stack design
- Application scale: Analytical HPLC
Additional information
| Availability | |
|---|---|
| Brand | |
| Condition | |
| Model | |
| Onsite Installation | |
| Warranty |
Key Features
- Complete analytical HPLC system for high-precision separations
- Dual pump configuration for accurate binary gradient formation
- Diode array detection for multi-wavelength and spectral analysis
- High sensitivity detection with stable baseline performance
- Integrated degassing for improved solvent stability and reproducibility
- Low pulsation solvent delivery for consistent chromatographic results
- Manual injection for flexible sample introduction
- Modular design allowing system expansion and customization
- Reliable performance suitable for routine and advanced analysis
- Supports a wide range of analytical applications across industries
Applications
- Pharmaceutical analysis – API and impurity profiling
- Environmental testing – water and pollutant analysis
- Food and beverage – contaminant and additive detection
- Chemical analysis – compound separation and identification
- Biochemical research – protein and biomolecule analysis
- Quality control – routine sample verification and testing
Frequently Asked Questions
- What is this HPLC system used for?
The Shimadzu Prominence HPLC system is used for high-performance liquid chromatography analysis, including separation, identification, and quantification of compounds in pharmaceutical, environmental, chemical, and food samples. - What advantage does the diode array detector (DAD) provide?
The SPD-M20A diode array detector allows simultaneous multi-wavelength detection and full spectral acquisition, enabling peak purity analysis and confident compound identification. - Why does the system include two pumps?
The dual LC-20AT pump configuration enables high-pressure binary gradient operation, providing precise solvent mixing and improved separation efficiency. - What is the wavelength range of the detector?
The SPD-M20A diode array detector operates across a wavelength range of 190 to 800 nm, allowing detection of a wide variety of compounds. [1](https://www.viennabiocenter.org/vbcf/protein-technologies/) - Does this system support gradient chromatography?
Yes, the dual pump setup supports high-pressure binary gradient elution, allowing more complex and efficient separations compared to isocratic systems. - What is the maximum operating pressure?
The LC-20AT pumps support pressures up to 40 MPa (400 bar), enabling high-performance analytical separations. [2](https://americanlaboratorytrading.com/lab-equipment-products/agilent-1260-series-g1315c-dad-vl-20926/) - What type of sample injection is included?
This system includes a manual injection valve, providing flexible and straightforward sample introduction for routine analysis. - What is the role of the degasser?
The DGU-20A3R degasser removes dissolved gases from solvents, reducing baseline noise and improving chromatographic stability. - Is this system suitable for pharmaceutical applications?
Yes, the Prominence HPLC platform is widely used in pharmaceutical laboratories for API analysis, impurity profiling, and quality control. [3](https://research.pasteur.fr/fr/equipment/dynapro-plate-reader-iii/) - Can this system be upgraded or expanded?
Yes, the modular design allows integration of additional modules such as autosamplers, column ovens, and alternative detectors. - What types of detectors can be used with this system?
In addition to the diode array detector, the Prominence platform supports UV/Vis, fluorescence, refractive index, and mass spectrometry detectors. [3](https://research.pasteur.fr/fr/equipment/dynapro-plate-reader-iii/) - What industries commonly use this system?
Common industries include pharmaceuticals, biotechnology, environmental testing, food safety, and academic research laboratories.
