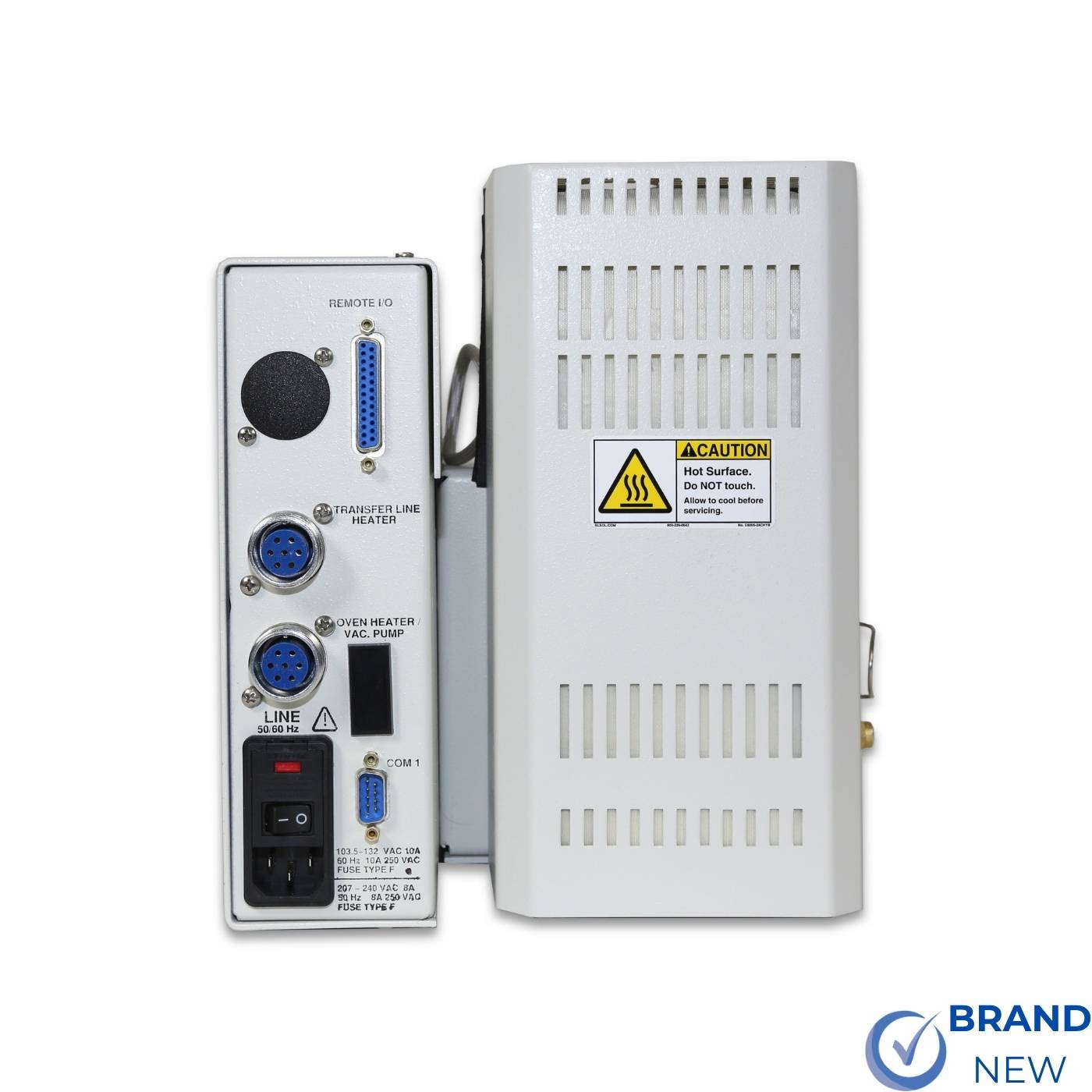

CDS Analytical 9300 Thermal Desorption Concentrator

Flexible, Programmable Purge & Trap Control

The 9300 offers fully programmable timing from 0 to 999.9 minutes, allowing precise control over purge, dry purge, desorb, and bake cycles. This flexibility supports a wide range of sample matrices and method requirements.

High‑Temperature Desorption & Heated Pathway

The system features:

• Sample desorb temperature up to 400°C
• Focus desorb temperature up to 400°C
• Valve oven up to 350°C
• Heated transfer line up to 350°C

These high‑temperature capabilities ensure complete analyte recovery and minimize carryover.

Standard Vocarb Trap with Optional Tenax‑TA

The 9300 includes a standard 1/8" Vocarb trap, with optional 6 mm Tenax‑TA for expanded application flexibility.

No Cryogen Required

The system operates without cryogenic cooling, using standard pre‑desorb technology to maintain performance while reducing operating costs and complexity.

Compact & Efficient

Weighing only 17 kg, the 9300 is designed for laboratories needing a powerful concentrator in a compact footprint.

 Technical Specifications

• Programmable Times: 0–999.9 minutes
• Focus Trap: Yes — standard 1/8" Vocarb
• Optional Trap: 6 mm Tenax‑TA
• Dynamic Range: C₂–C₃₃+
• Cryogen: Not required (standard pre‑desorb)
• Temperature Accuracy: 1°C
• Tube Heating Rate: 1000°C/min
• Trap Heating Rate: 900°C/min
• Valve Oven Temperature: Up to 350°C
• Transfer Line Temperature: Up to 350°C
• Sample Desorb Temperature: Up to 400°C
• Focus Desorb Temperature: Up to 400°C
• On‑Line Sampling: Not supported
• GC Connection: Heated transfer line
• Weight: 17 kg
• Dimensions (W × H × D): 13 in × 11 in × 18 in

 Key Applications

• VOC and SVOC analysis
• Environmental water testing
• Soil extract analysis
• Industrial emissions and contamination screening
• EPA‑aligned purge & trap GC/MS workflows
• Municipal and commercial environmental labs
• High‑temperature desorption studies
