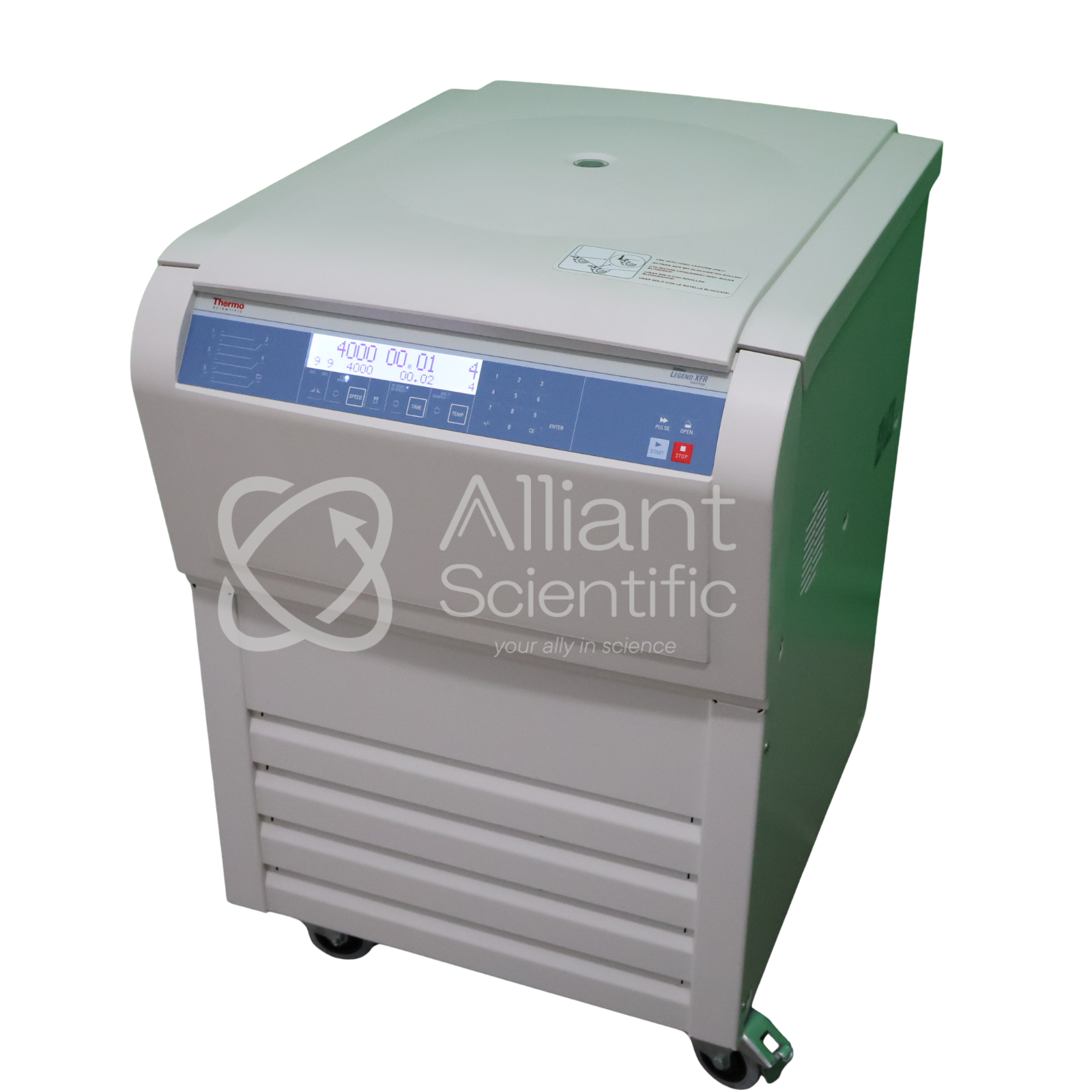

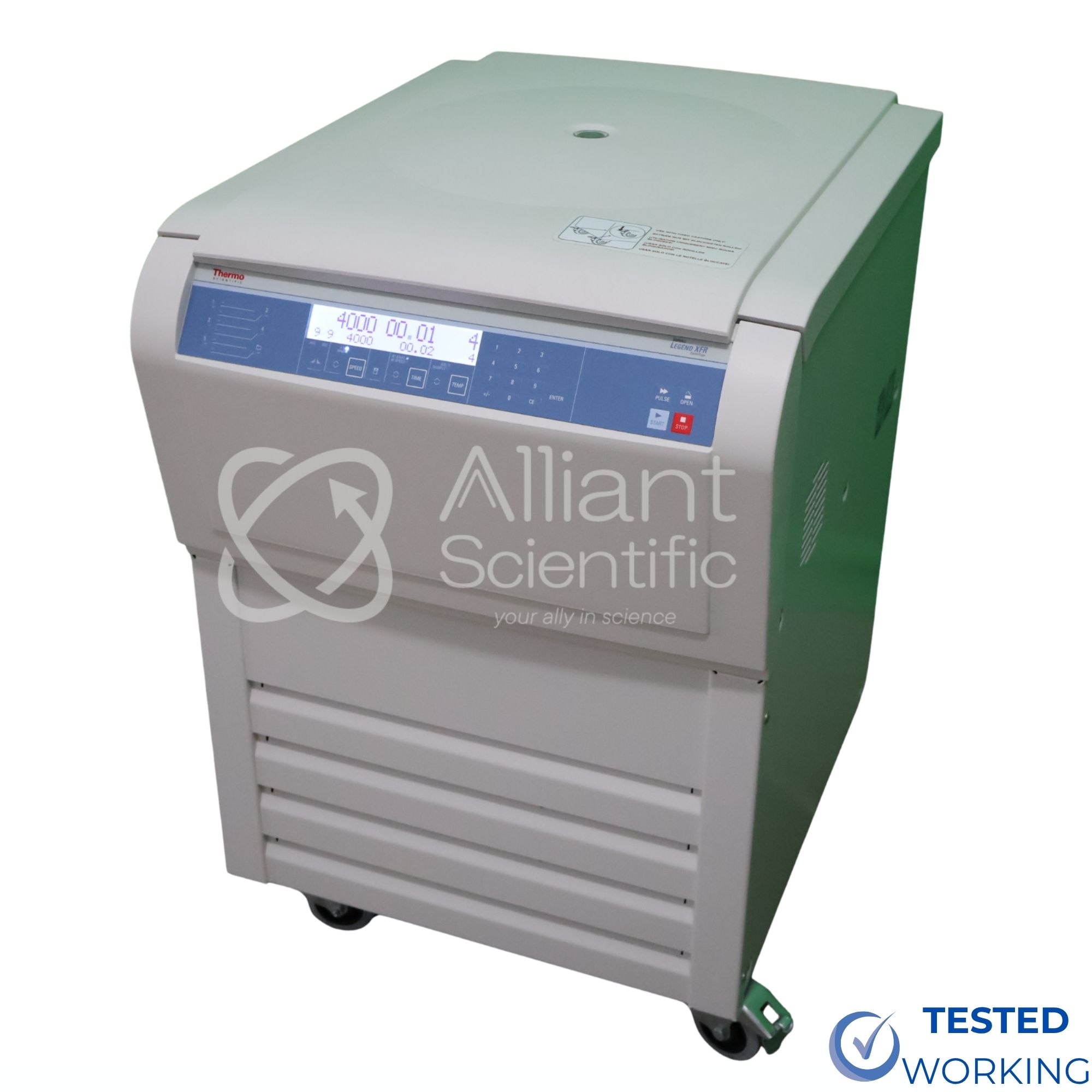

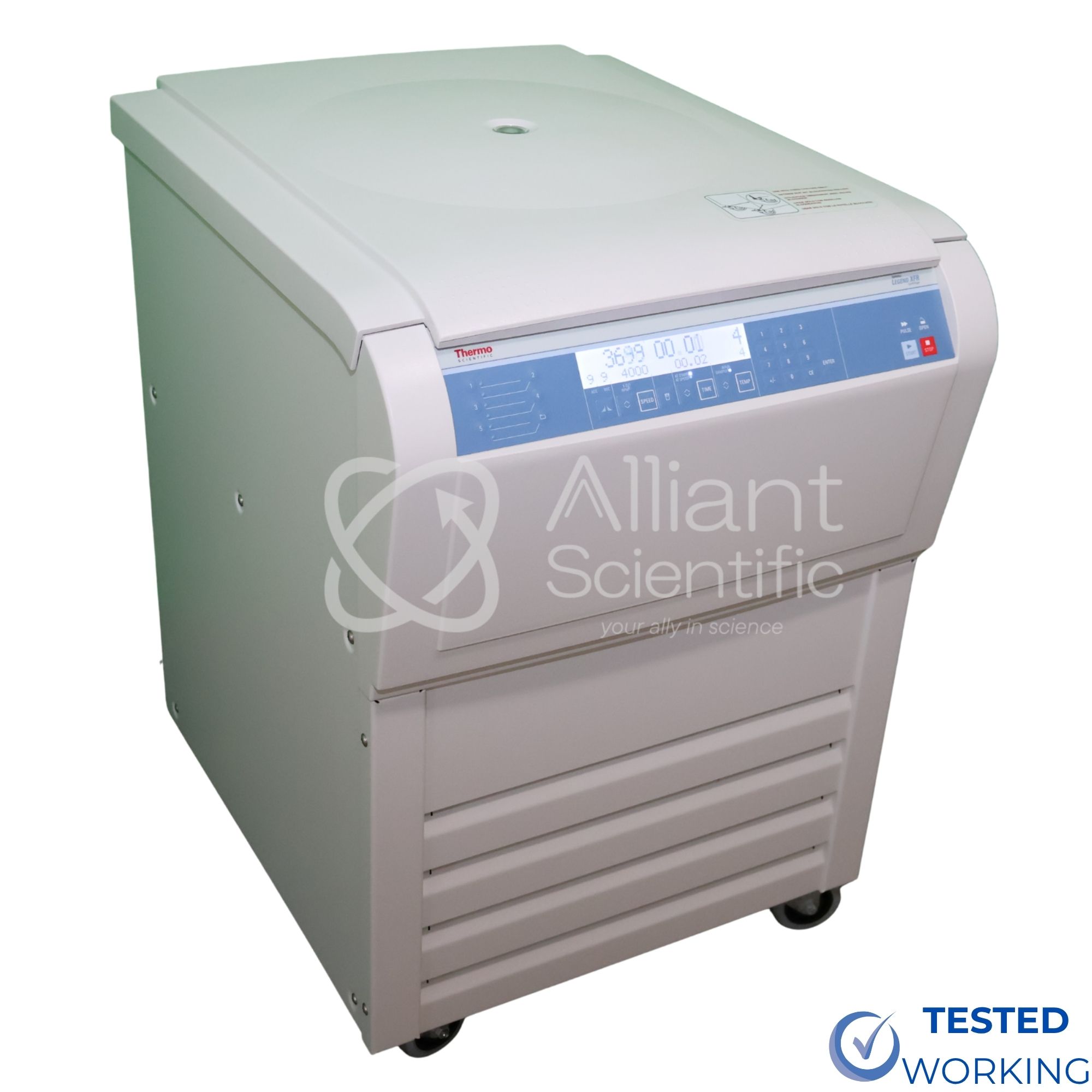

Thermo Scientific Sorvall Legend XFR Centrifuge with TX-1000 Swing Rotor

Key Specifications

• Manufacturer: Thermo Scientific (Sorvall)
• Model: Legend XFR
• Type: Refrigerated Floor‑Standing Centrifuge
• Rotor Included: TX1000 Swing‑Out Rotor
• Maximum Speed: Up to 10,000 rpm (rotor dependent)
• Maximum RCF: Up to 17,000 × g (rotor dependent)
• Temperature Range: ‑10 °C to +40 °C
• Capacity: Up to 4 × 1000 mL (TX1000 rotor, bucket dependent)

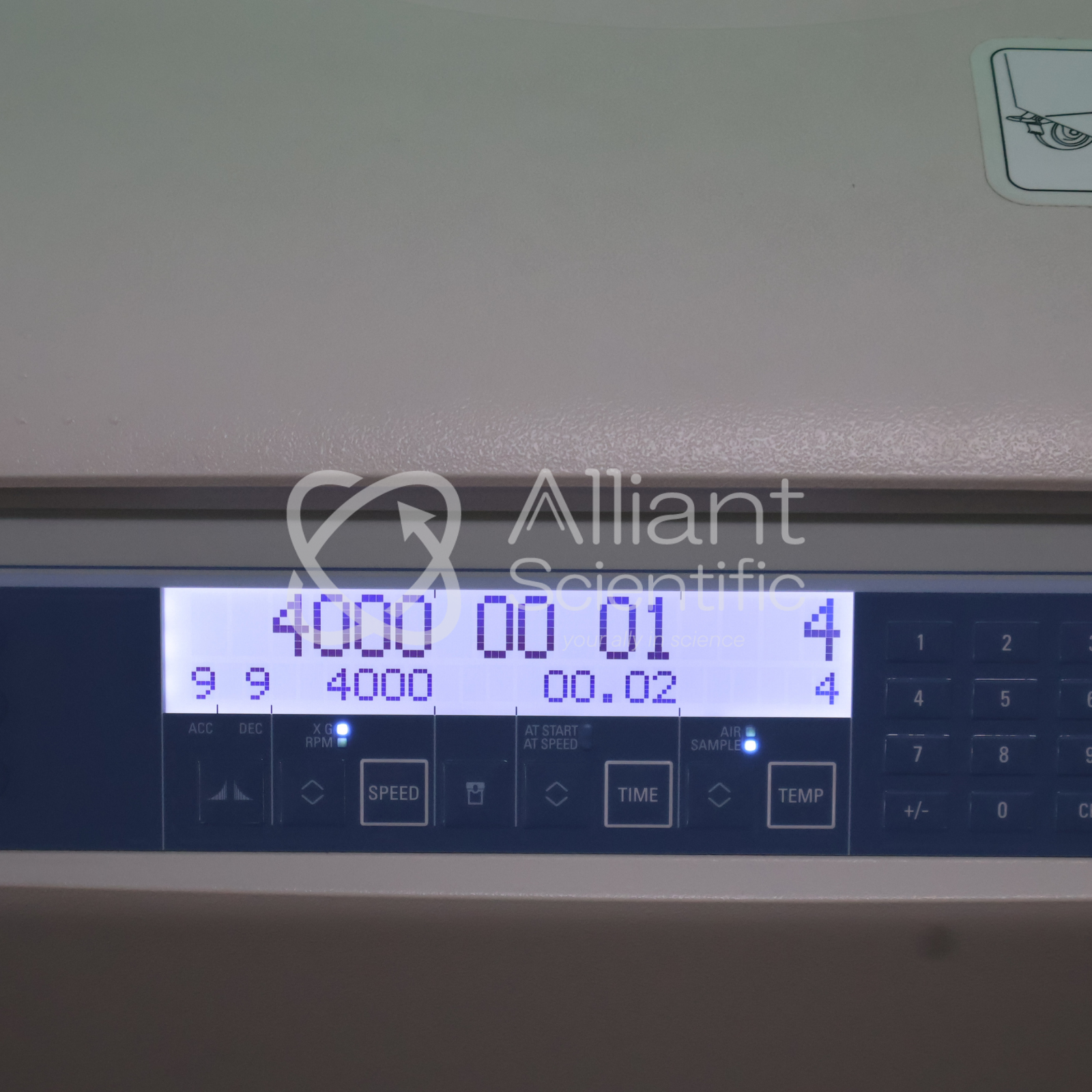

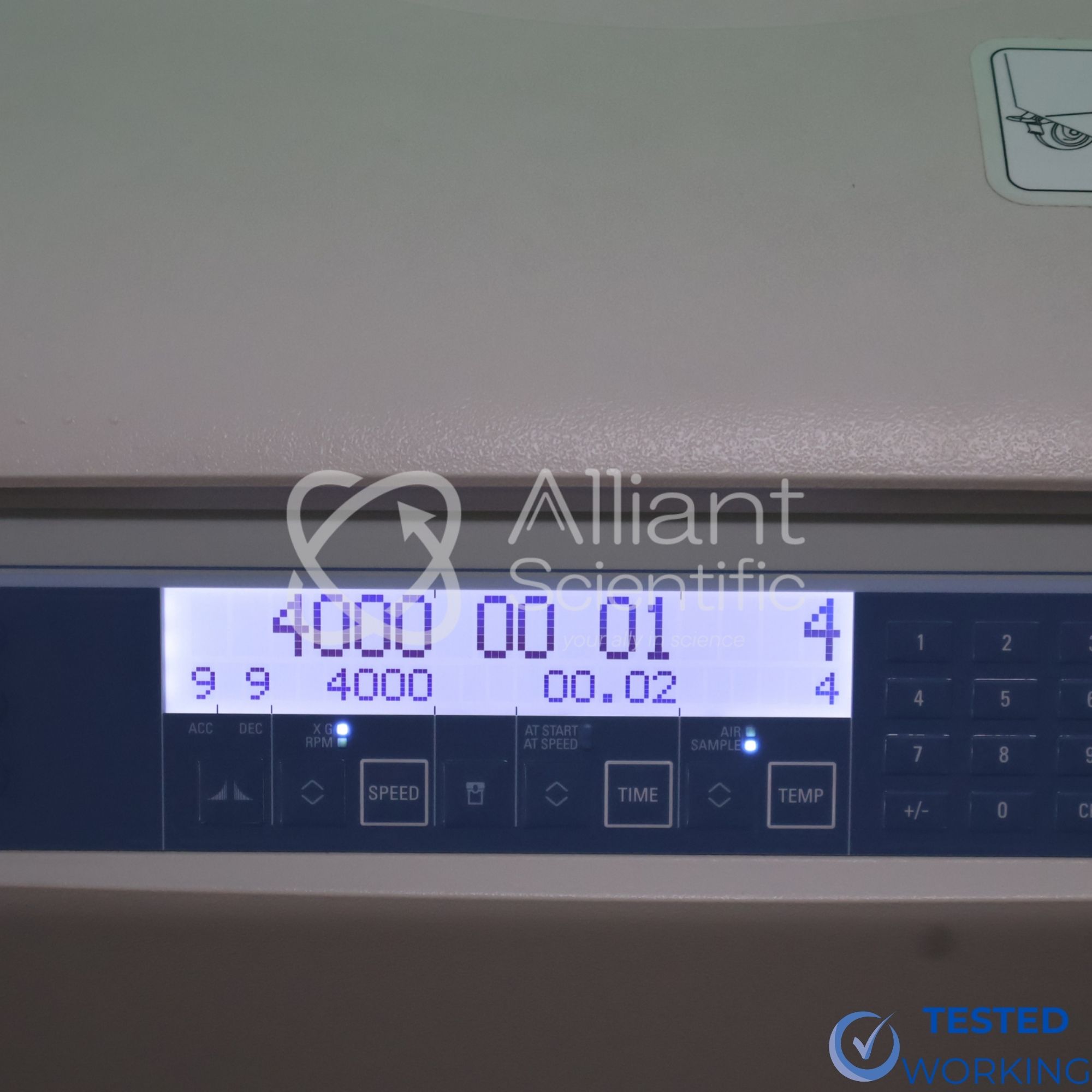

• Controls: Touchscreen interface with programmable runs
• Safety Features: Lid lock, imbalance detection, rotor recognition
• Power Requirements: 208–240 VAC, 50/60 Hz

Dimensions & Weight

• Dimensions (W × D × H): 28.5 × 33 × 41.5 in
• Weight: ~705 lb (320 kg)

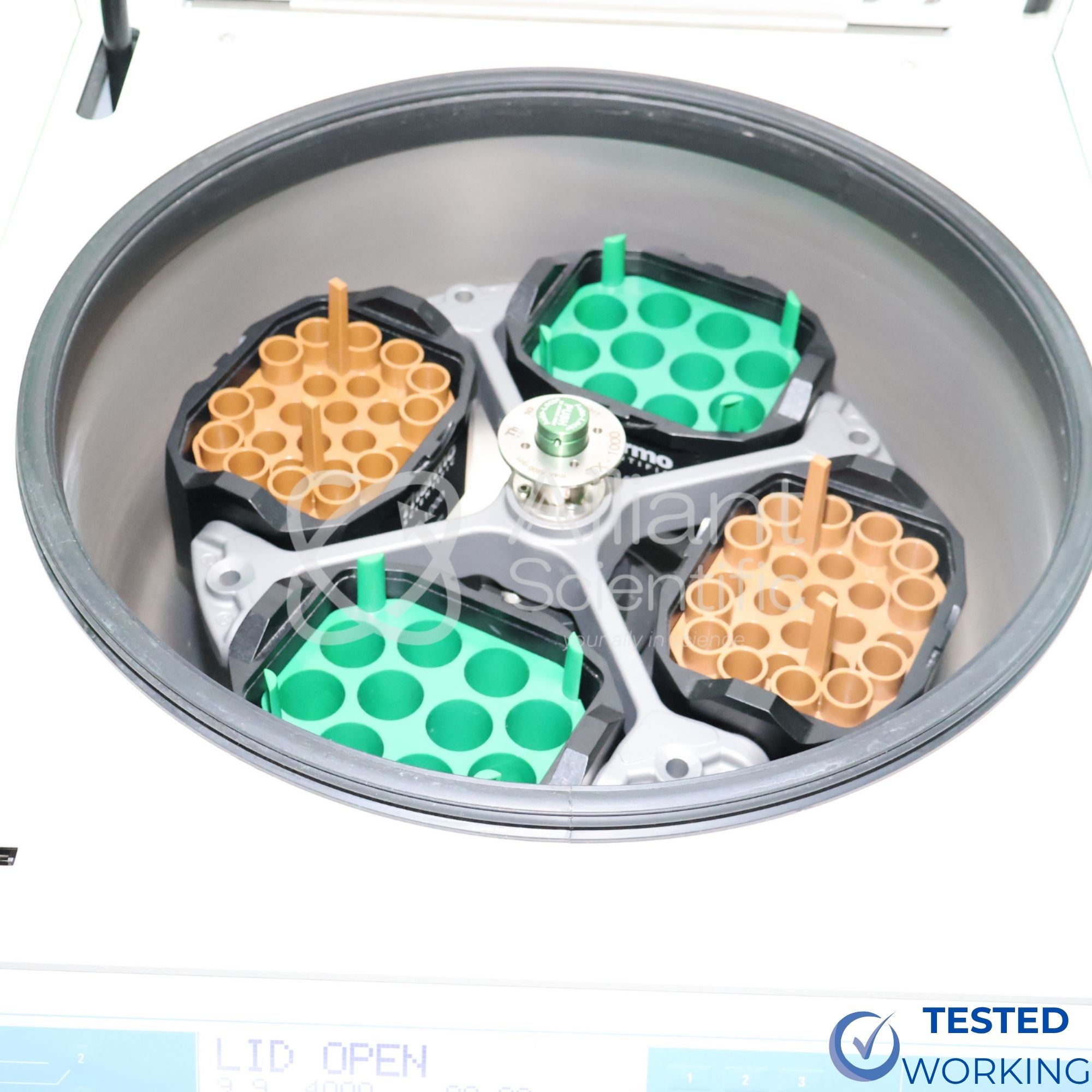

Rotor Type: Swing‑Out / Swing Bucket Rotor

Rotor Model: TX‑1000

Compatibility: Thermo Scientific Sorvall Legend X‑series floor centrifuges

Maximum Speed: ~4,100 rpm

Maximum RCF: ~5,000 × g

Number of Bucket Positions: 4

Maximum Capacity: Up to 4 × 1000 mL (bucket and adapter dependent)

Thermo Scientific TX-1000 Rotor Bucket Adapter Variety Pack

75007306 – Two (2) each

• Type: Rotor Adapter
• Tube Type: Conical
• Capacity: 96 x 15 mL
• Max. Tube Diameter: 17.5 mm
• Max. Tube Length: 121 mm
• For Use With: 15 mL Conical Tube

75003674 – Two (2) each

• BIOLiner Rotor Bucket Adapter designed for use with 50mL conical tubes
• Type: Adapter Tube
• Tube Type: 50 mL Conical Bottle
• Capacity: 40 x 50 mL
• Maximum Tube Diameter: 30 mm
• Maximum Tube Length: 120 mm
