Description

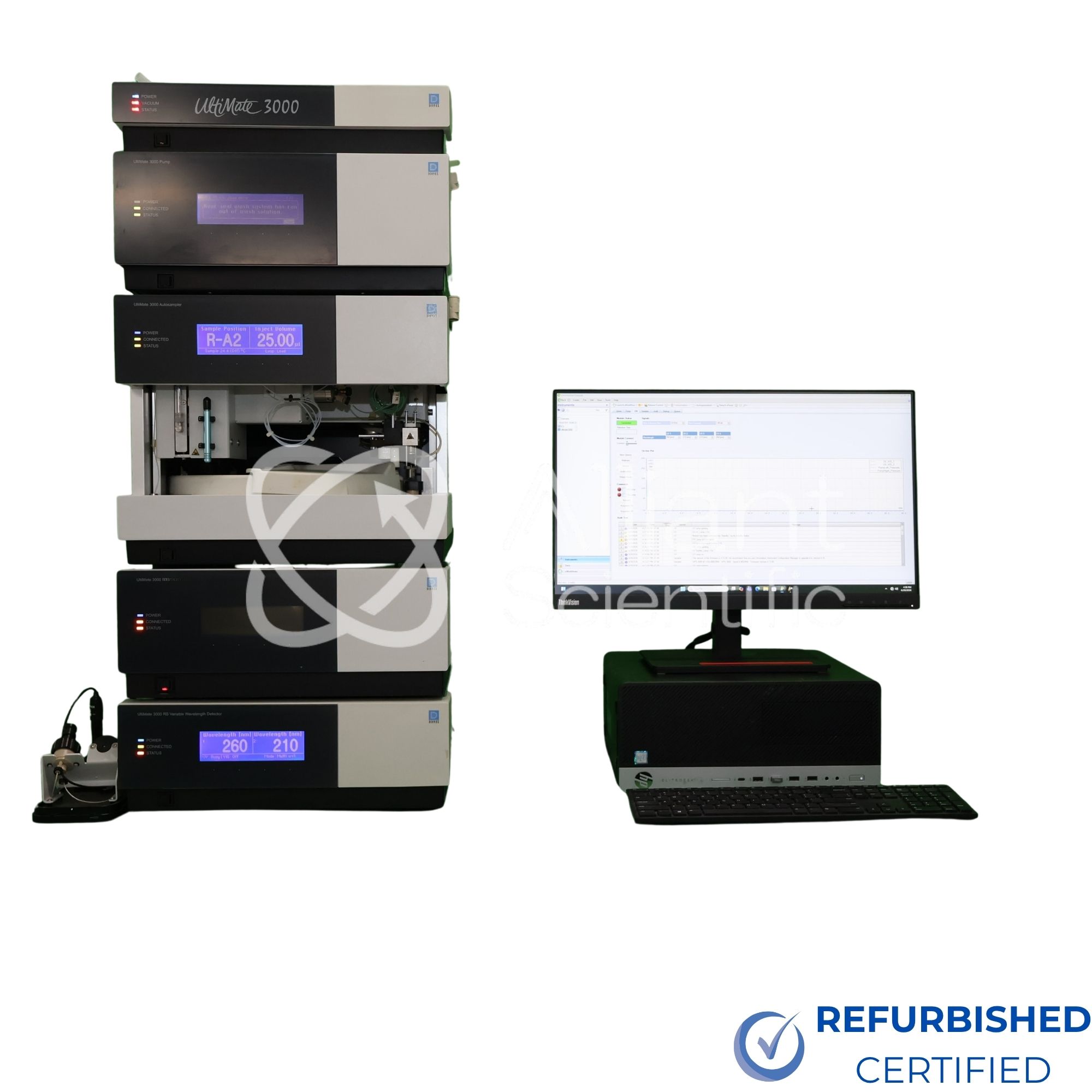

Thermo Dionex UltiMate 3000 HPLC System
Thermo Dionex UltiMate 3000 HPLC System is a modular liquid chromatography platform configured with solvent management, quaternary gradient delivery, automated sample injection, column temperature control, UV‑visible detection, and inline pH and conductivity monitoring. This system supports complete chromatographic workflows from solvent preparation to detection and analytical monitoring.
The system includes the SRD‑3600 solvent tray with integrated six-channel degasser, DGP‑3600A quaternary pump, WPS‑3000T well plate autosampler, TCC‑3000RS column compartment, VWD‑3400RS variable wavelength detector, and PCM‑3000 pH and conductivity monitor. Together, these modules provide controlled solvent delivery, reproducible injection, stable separation conditions, and multi-parameter detection. The quaternary pump enables multi-solvent gradient formation, while the autosampler supports high-throughput sample introduction from vials and microplates. The column compartment maintains controlled thermal conditions to improve retention time stability. Detection is performed using a UV‑visible variable wavelength detector with multi-channel capability.
The integration of the PCM‑3000 module allows real-time monitoring of pH and conductivity, providing additional analytical data for gradient optimization and system diagnostics. The modular architecture allows coordinated operation across all components, supporting reproducible analytical separations in laboratory environments.
This refurbished Thermo Dionex UltiMate 3000 HPLC System has been fully tested and verified to be in proper working condition by Alliant Scientific.
Includes:
- SRD‑3600 Degasser
- 6 Channels Degasser
- DGP-3600A Pump
- WPS-3000T Well Plate Autosampler
- TCC-3000RS Column Compartment
- VWD-3400RS Variable Wavelength Detector
- PCM-3000 Ph and Conductivity Monitor Module
- Data System
- 30-Day Warranty Coverage
Disclaimer: All brand names and trademarks are the property of their respective owners and are used for identification only. We are not an authorized dealer. Software, if included, is not transferable or upgradable.
Technical Specifications
| System Type | High Performance Liquid Chromatography (HPLC) System |
| Series | Dionex UltiMate 3000 |
| Configuration | Modular LC system with pump, autosampler, column thermostat, detector, degasser, and monitoring module |
| Included Modules | SRD-3600 Solvent Tray with Degasser (6 channel) DGP-3600A Quaternary Pump WPS-3000T Well Plate Autosampler TCC-3000RS Thermostatted Column Compartment VWD-3400RS Variable Wavelength Detector PCM-3000 pH and Conductivity Monitor |
| Solvent Delivery | Quaternary low-pressure gradient pump (up to 4 solvents) |
| Flow Rate Range | 0.001 – 10 mL/min (pump dependent) |
| Maximum Pressure | Up to ~62 MPa (9000 psi) |
| Degasser Channels | 6 independent vacuum degassing channels |
| Autosampler Type | Well plate and vial autosampler |
| Injection Volume Range | Approx. 0.1 – 100 µL |
| Column Temperature Range | Ambient to ~85°C |
| Detection Type | UV-Visible variable wavelength detection |
| Wavelength Range | 190 – 900 nm |
| Detection Channels | Up to 4 simultaneous UV channels |
| Data Acquisition Rate | Up to 200 Hz |
| Monitoring Capability | Inline pH and conductivity monitoring |
| Degassing Method | Vacuum membrane degassing (Teflon AF tubing) |
| System Integration | Modular communication across UltiMate platform |
| Power Requirements | 100–240 V AC, 50/60 Hz |
| System Dimensions (Stacked) | Approx. 60–80 × 42 × 60 cm (height dependent on configuration) |
| System Weight | Approx. 40–65 kg total (module dependent) |
| Application Range | Analytical HPLC and UHPLC workflows |
Additional information
| Availability | |
|---|---|
| Brand | |
| Condition | |
| Model | DGP‑3600A, PCM-3000, SRD‑3600, TCC-3000RS, VWD-3400RS, WPS-3000T |
| Onsite Installation | |
| Warranty |
Key Features
- Complete HPLC system with solvent delivery, detection, and monitoring
- Six-channel degasser for multi-solvent stability
- Quaternary gradient pump for flexible method development
- Well plate autosampler for high-throughput workflows
- Thermostatted column compartment for reproducible separations
- UV-Vis variable wavelength detection with multi-channel capability
- Inline pH and conductivity monitoring for gradient analysis
- Modular architecture for scalable configurations
- Low dispersion fluidic design for accurate peak integrity
“
Applications
- Pharmaceutical analysis and quality control
- Gradient and isocratic HPLC separations
- Environmental and food testing
- Chemical compound analysis
- Biotechnology and life science research
- High-throughput analytical workflows
Frequently Asked Questions
What modules are included in this UltiMate 3000 system?
The system includes SRD-3600 degasser, DGP-3600A pump, WPS-3000T autosampler, TCC-3000RS column compartment, VWD-3400RS detector, and PCM-3000 monitor.
Can this system run gradient methods?
Yes, the quaternary pump supports multi-solvent gradient formation.
What type of detection is used?
UV-visible detection using a variable wavelength detector with multi-channel capability.
What is the function of the PCM-3000 module?
It provides real-time pH and conductivity monitoring during chromatographic runs.
Is this system suitable for high-throughput analysis?
Yes, the autosampler supports microplate-based high-throughput workflows.
