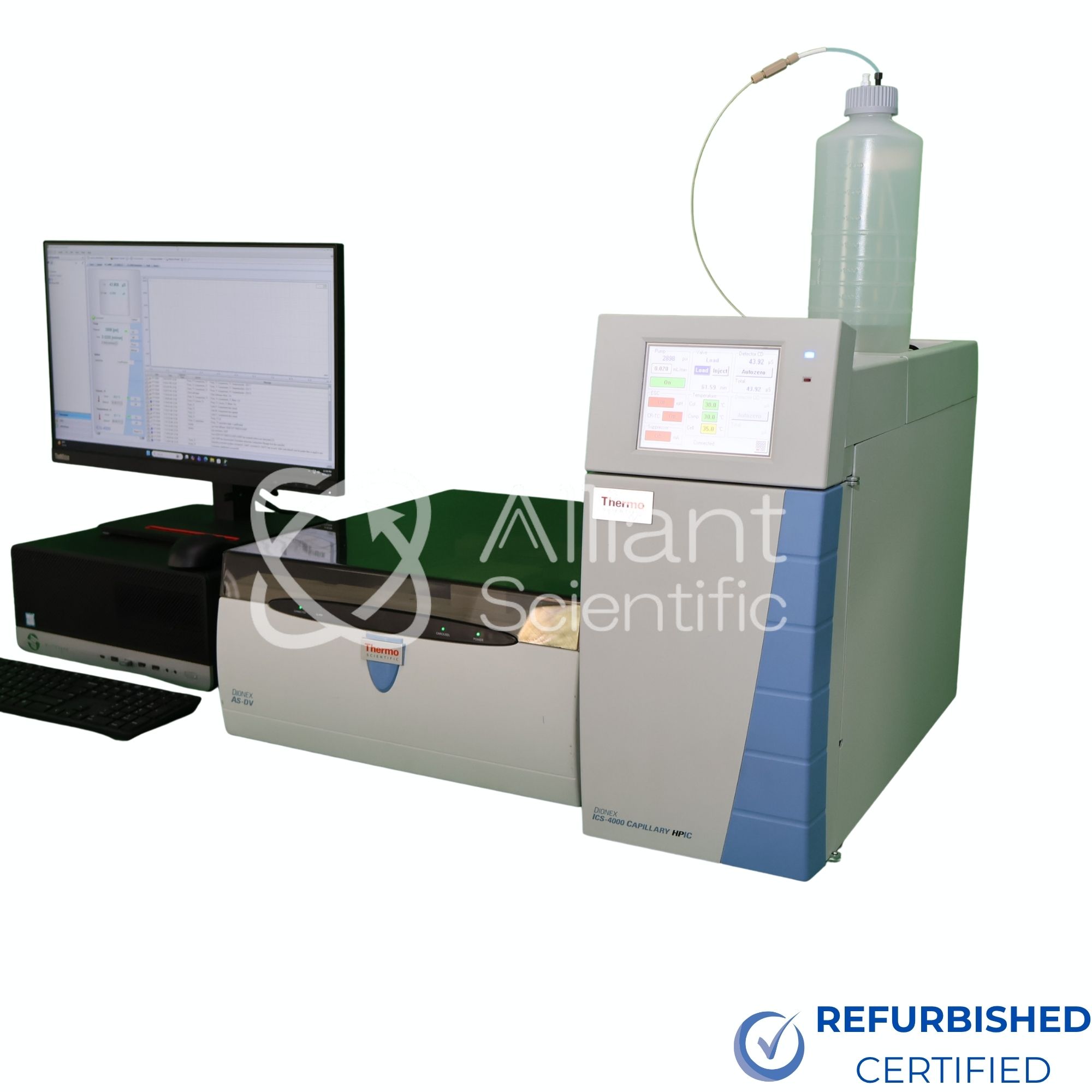

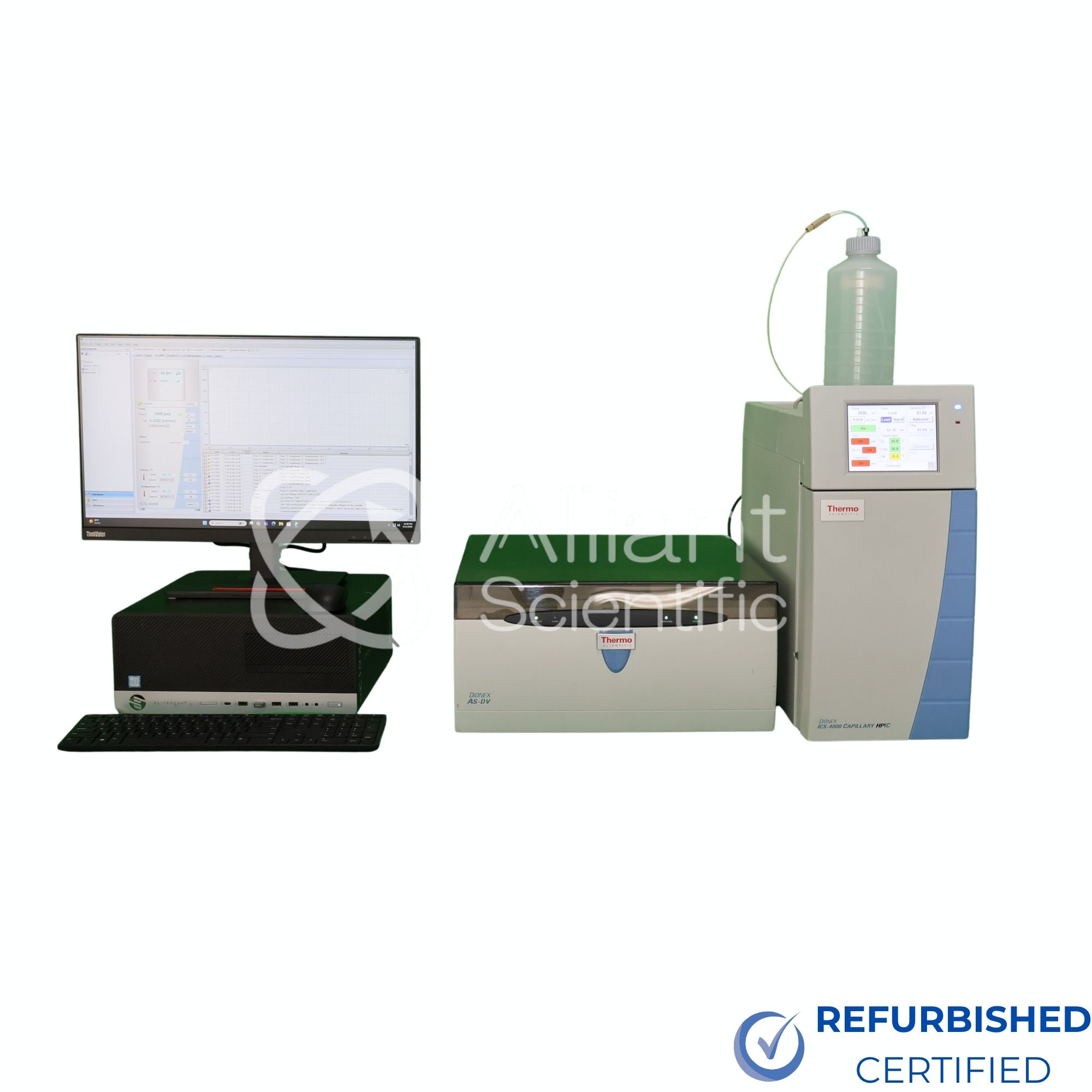

Thermo Dionex ICS-4000 Capillary HPIC System with Dionex AS-DV Autosampler
$13,900.00
In Stock
Description
Thermo Dionex ICS-4000 Capillary HPIC System with Dionex AS-DV Autosampler Overview
The Thermo Dionex ICS‑4000 Capillary HPIC System performs high‑pressure ion chromatography using capillary flow paths to increase sensitivity while minimizing reagent use. It integrates a dual‑piston pump, electrolytic eluent generator, separation column, and detector into a single system. Eluent is generated directly from water, eliminating manual preparation and maintaining consistent concentration for reproducible isocratic and gradient separations.
Capillary operation (0.001–0.100 mL/min) reduces dead volume and improves signal‑to‑noise, enabling trace ion detection with very small injection volumes. The system supports pressures up to ~5000–6000 psi, allowing the use of small‑particle columns for faster, higher‑resolution separations. Temperature‑controlled zones stabilize retention times and baseline during long sequences, and detection modules support conductivity, electrochemical, and charge-based analysis.
The Dionex AS‑DV autosampler automates sample introduction using a 50‑vial carousel with programmable volume and dispense speed. It supports random access sampling, multiple injections per vial, and software‑controlled loop filling or concentrator loading. Combined with Chromeleon control, the system runs unattended sequences with consistent injection timing and reproducible results across routine chromatography workflows.
This refurbished Thermo Dionex ICS-4000 Capillary HPIC System with Dionex AS-DV Autosampler has been fully tested and verified to be in proper working condition by Alliant Scientific
Includes:
- Thermo Dionex ICS-4000 Capillary HPIC System (pn#
- Thermo Dionex AS-DV Autosampler
- PC loaded with Data System
- 60-Day Warranty Coverage
Disclaimer: All brand names and trademarks are the property of their respective owners and are used for identification only. We are not an authorized dealer. Software, if included, is not transferable or upgradable.
Technical Specifications
| Thermo Dionex ICS-4000 Capillary HPIC System | |
| Flow Rate Range | 0.001 – 0.100 mL/min |
| Maximum Pressure | Up to ~35 MPa (5000 psi) |
| Column Type | Capillary IC columns (0.2 – 0.6 mm ID) |
| Eluent Generation | Electrolytic (Reagent-Free IC) |
| Detection Options | Conductivity, electrochemical, charge detection |
| Temperature Control | Thermally controlled compartments for stability |
| Sample Injection Volume | As low as ~0.1 µL |
| Eluent Concentration Range | Up to ~200 mM (depending on method) |
| Dionex AS-DV Autosampler | |
| Sample Capacity | Up to 50 vials (0.5 mL or 5 mL) |
| Injection Control | Programmable volume and speed |
| Dispense Speed | 0.1 – 5.0 mL/min |
| Dispense Volume Range | 0.1 – 5.0 mL |
| Sampling Type | Random access, multiple injections per vial |
Additional information
| Brand | |
|---|---|
| Condition | |
| Model | |
| Onsite Installation | |
| Warranty | |
| Availability |
Key Features
- Capillary HPIC technology for high-resolution ion chromatography
- Reagent-Free IC (RFIC) with electrolytic eluent generation
- Ultra-low flow rates (0.001 – 0.100 mL/min) for reduced solvent consumption
- High-pressure operation up to ~5000–6000 psi for fast separations
- Multiple detection modes: conductivity, electrochemical, and charge detection
- “Always-ready” system minimizes equilibration time for continuous operation
- Stable temperature-controlled chromatography for reproducible results
- Dionex AS-DV autosampler with up to 50 vial capacity
- Automated sample injection with high precision and reproducibility
- Compatible with Thermo Chromeleon CDS software for control and data analysis
Applications
- Environmental analysis (water, wastewater, trace ions)
- Pharmaceutical quality control and impurity analysis
- Food and beverage testing (organic acids, sugars, anions)
- Industrial and chemical process monitoring
- Semiconductor and ultrapure water analysis
- Biochemical and clinical research applications
Frequently Asked Questions
What is the advantage of capillary ion chromatography?
Capillary IC reduces flow rates and sample volumes, improving sensitivity while lowering reagent consumption and waste.
Is the ICS-4000 a reagent-free system?
Yes, it uses electrolytic eluent generation, eliminating the need for manual preparation and improving reproducibility.
What types of detectors are supported?
The system supports conductivity, electrochemical, and charge detection modes for versatile analysis.
How many samples can the AS-DV autosampler handle?
The autosampler supports up to 50 vials with random access capability.
What industries commonly use this system?
It is widely used in environmental, pharmaceutical, food safety, and industrial laboratories.
