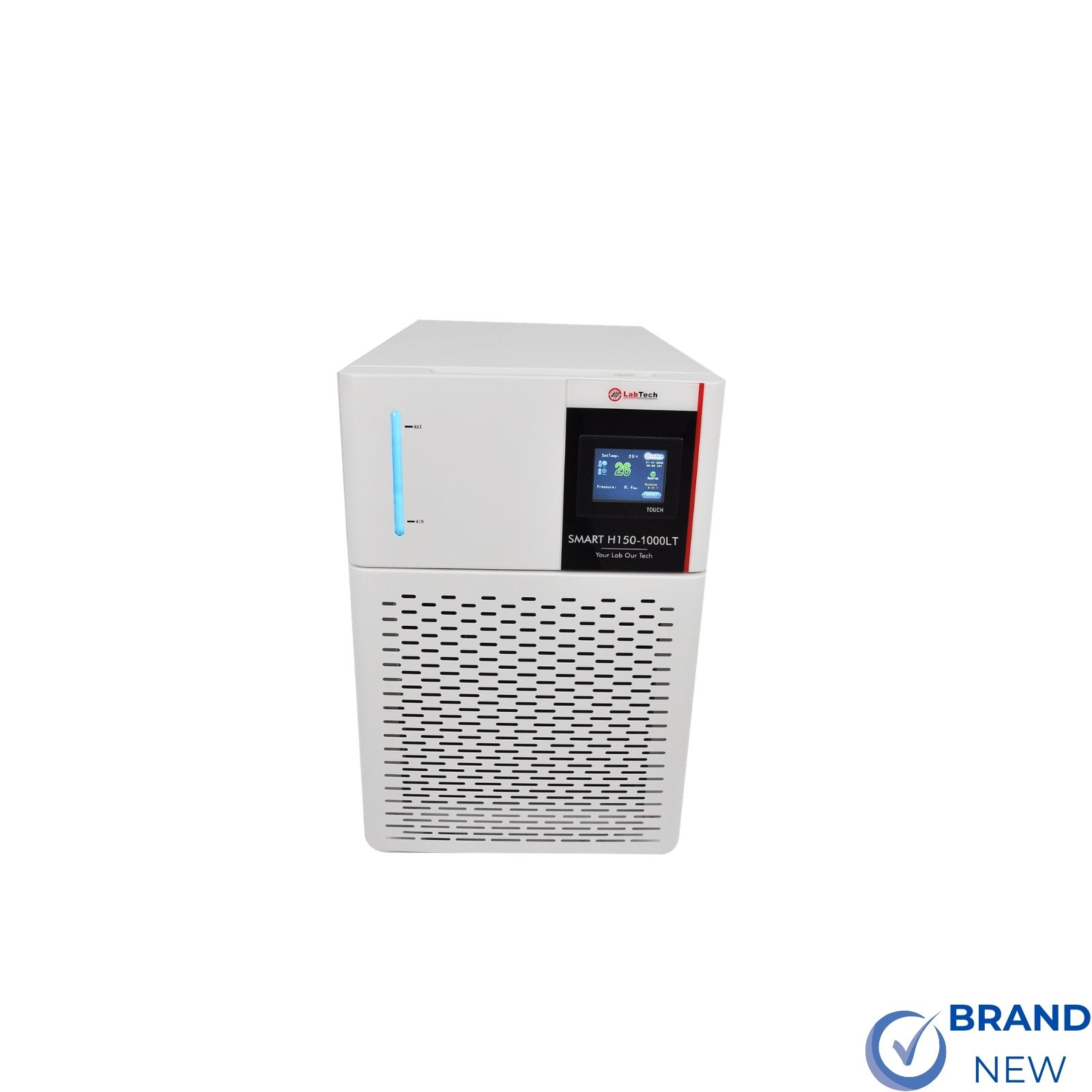

LabTech H150-1000LT Low Temperature Recirculating Water Chiller, 230V

Description

For lower temperature requirements, LabTech offers the H150-1000LT recirculating water chiller to ensure accurate and constant cooling conditions for instrumentation.

The chiller is provided with a touchscreen display to monitor and control instrument temperature from -20°C – 35°C and is designed to operate on 115V/60Hz with a standard 115V US plug for use with similar electrical requirements. It has a PID Temperature control mode to provide Temperature Stability at +/-0.1℃ with efficient compressor cooling. Cooling capacity for the unit is 1000W at 25℃ and 100W at -15℃ and is ideal for use with rotary evaporation, reflux extraction and AA/ICP applications. The H150-1000 has a pump capacity of 6.4L/min and a max pressure of 60psi for external circulation. The liquid circuit pressure is monitored and controlled via analog pressure indicator.

Furthermore, the unit is provided with a liquid level indicator for maximum safety of operations. The chiller has a built in drain to easily remove the liquid from the internal reservoir and water connections are located on the rear side.

When setting the H150-1000LT to a lower temperature, a coolant mixture of 50% glycol / 50% water should be used to ensure proper functioning of the chiller.

This is a Brand‑new LabTech H150-1000LT Low Temperature Recirculating Water Chiller, 230V, ready for laboratory use.

Alliant Scientific is an authorized LabTech distributor.
