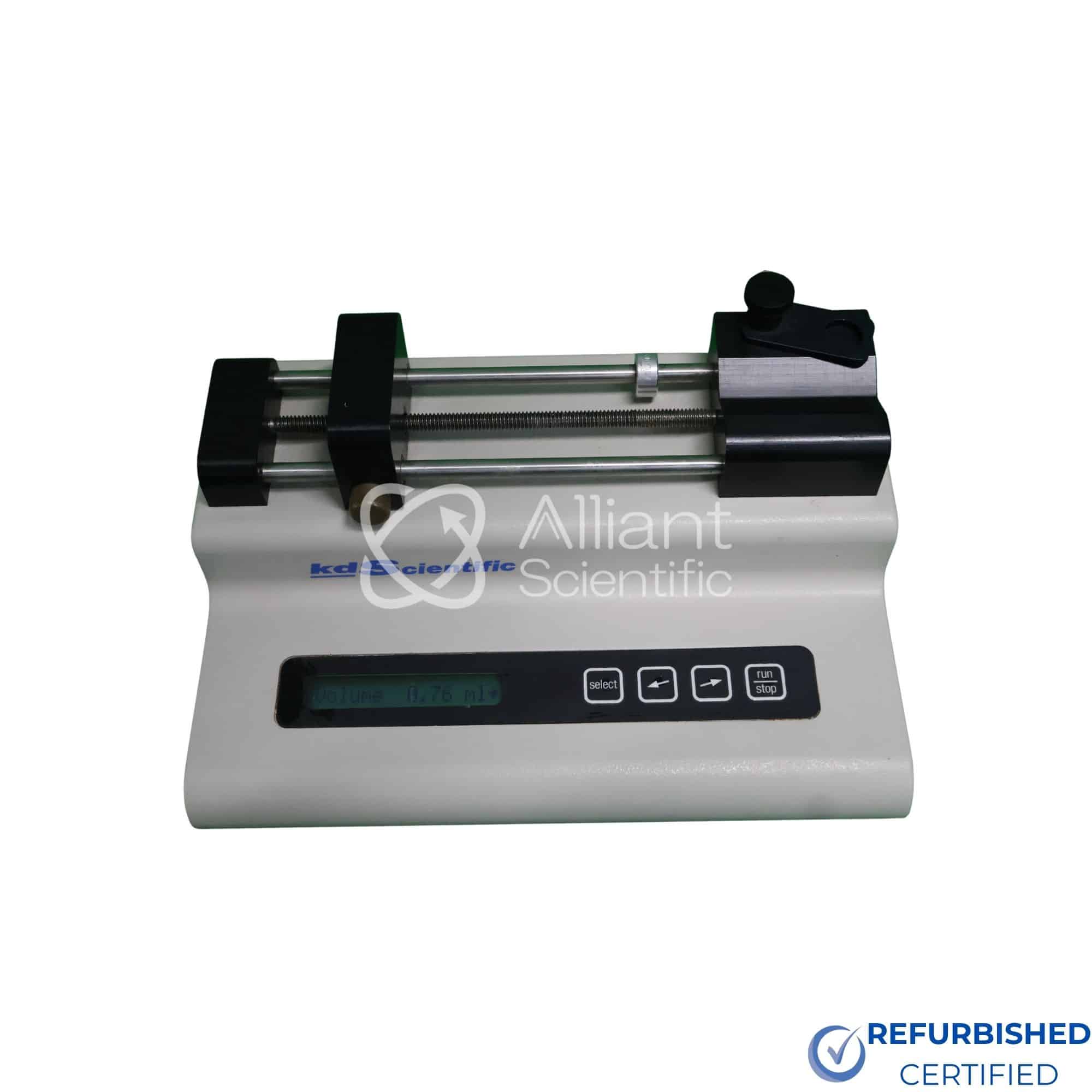

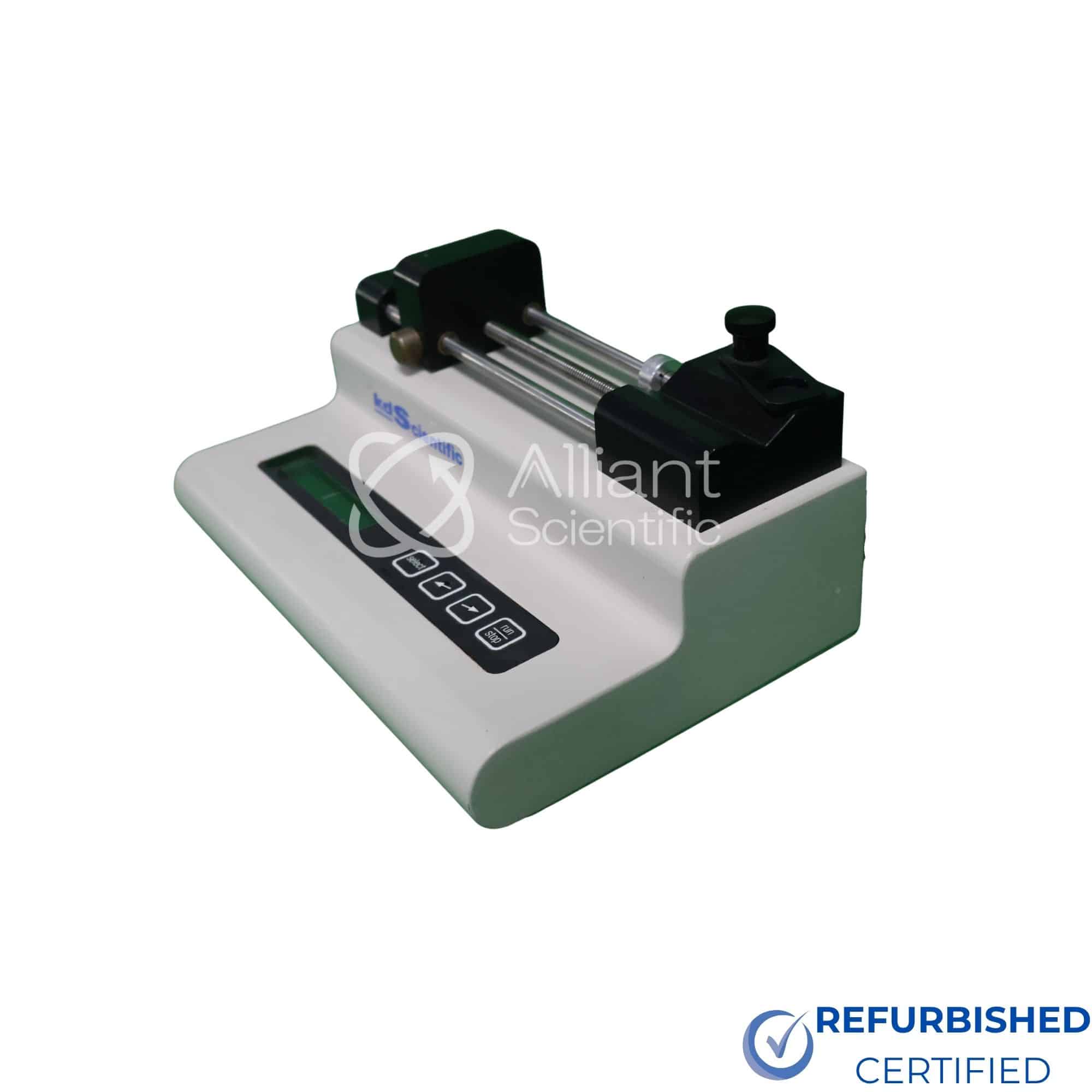

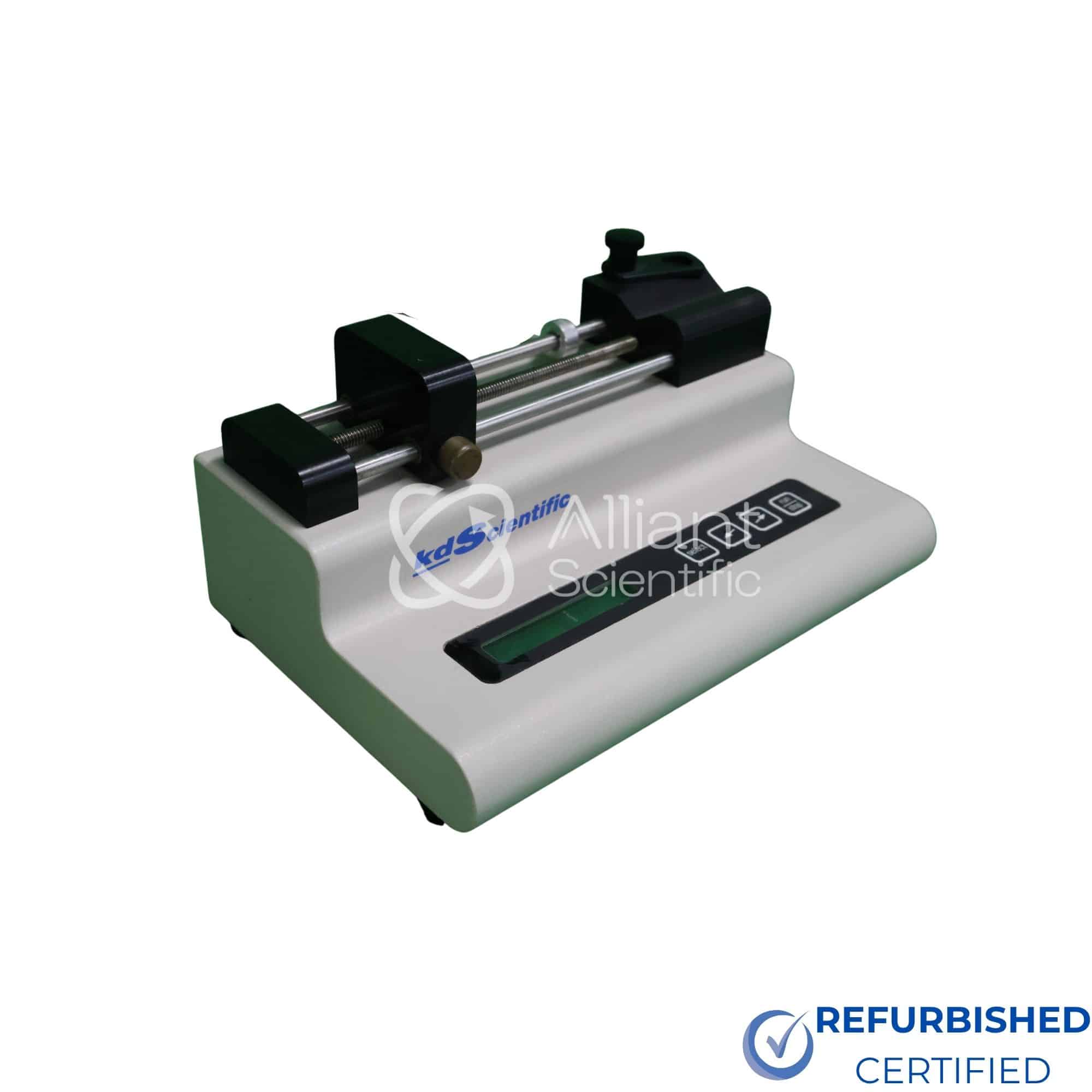

KD Scientific 100 Syringe Pump

Key Features

• Wide Syringe Compatibility
  Accommodates syringes from 10 µL to 60 mL, holding both glass and plastic syringes.
• Menu-Driven Setup
  Select syringe size from a built-in table, then set dispense volume and flow rate.
• Automatic Unit Selection
  Volume and flow rate units switch automatically between µL/hr and mL/hr based on syringe size.
• Automatic Shutoff
  Dispensing stops automatically at completion, with the dispensed volume shown on a backlit display.
• Easy Syringe Installation
  Button-release drive nut simplifies loading and removing syringes.
• Persistent Memory
  Last settings are stored in permanent memory between uses.

Applications

• Electrospinning
  Precise, pulse-free fluid delivery for electrospinning setups.
• Mass Spec Calibration
  Controlled infusion for calibration standard delivery.
• Microfluidics
  Low-volume, accurate dispensing for microfluidic systems.
• General Laboratory Dosing
  Reliable infusion for routine lab dispensing tasks.

FAQ (Frequently Asked Questions)

What syringe sizes does this pump accept?

10 µL to 60 mL, accommodating both glass and plastic syringes.

What is the flow rate range?

0.1 µL/hr with a 10 µL syringe, up to 426 mL/hr with a 60 mL syringe.

Does this pump support withdrawal, or infusion only?

This is an infusion-only pump.

What happens if power is interrupted during operation?

The pump offers a choice of run or stop behavior after a power interruption, and stores the last settings in permanent memory.

Does this unit include a warranty?

Yes — this unit ships with a 30-day warranty.
