Description
The HTA HT4000L is a lab‑automation‑ready HPLC autosampler designed for accuracy, flexibility, and scalability across a wide range of chromatography applications. Built on a “robust by design” philosophy and advanced DFX technology, the HT4000L is easy to use, easy to install, and easy to service, making it suitable for virtually any laboratory environment.
The system supports full‑loop and partial‑loop injection with high analytical accuracy, programmable fill speed, viscosity delay, and sampling depth to accommodate a wide range of sample viscosities while ensuring high sample recovery. Routine operations such as sample loading, washing, and analysis start are managed via the dedicated keypad or through HTA Autosampler Manager software, enabling seamless integration with chromatography data systems.

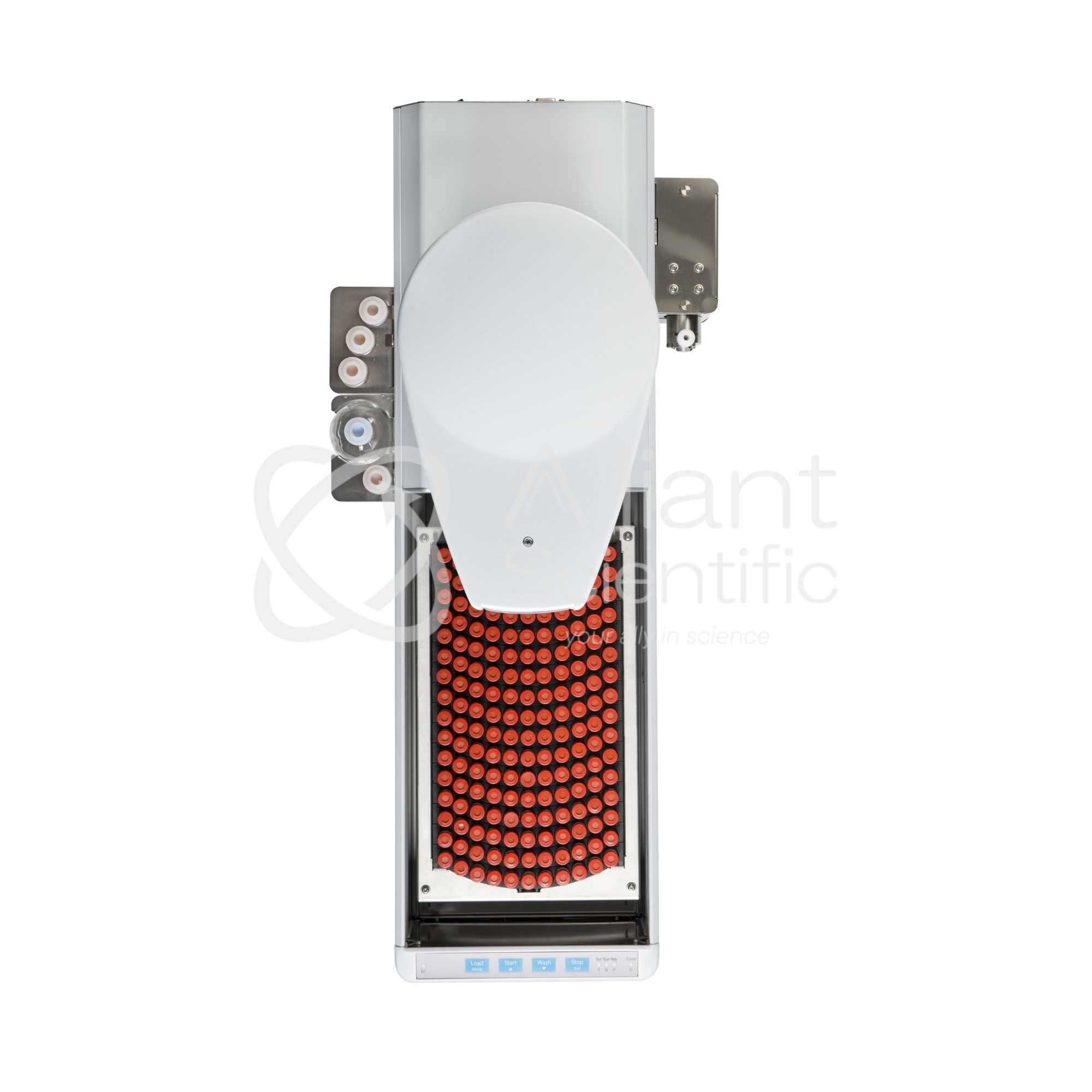

With a large capacity of up to 176 × 2 mL vials per run, the HT4000L supports 2–40 mL vials, test tubes, tube blocks, and plates, eliminating the need for sample reformatting. Interchangeable racks, flexible solvent handling without degassing, and a modular design allow the autosampler to adapt as laboratory needs evolve. The HT4000L fits all liquid chromatography systems and supports applications including LC, HPLC, UHPLC, ion chromatography (IC), nano‑LC, and LC/MS. In addition to autosampling, it provides built‑in lab automation capabilities such as dilution, derivatization, pH spiking, and internal standard addition, with advanced workflows available via the optional HTAPREP software.
Available from Alliant Scientific, an authorized HTA distributor, supplying the HTA HT4000L Autosampler with full support for system configuration, installation.
General Features
- Syringe Volumes (Standard): 100, 250, 500 µL; 1, 2.5, 10 mL
- Nano‑Volume Option: 5, 10, 25, 100 µL
- Tray Capacity (Standard):
- 176 × 2 mL vials
- 96 × 4 mL vials
- 54 × 6 / 10 / 20 mL vials
- 3 × 96‑well plates
- Tray Capacity (Cooled):
- 121 × 2 mL vials
- 42 × 6 / 10 / 20 mL vials
- 2 × 96‑well plates
- Custom Trays: Available
- Maintenance: Preventive counters available
- Electrical Control: LAN and TTL
Analytical Performance
- Injection Precision (RSD):
- Full loop: ≤ 0.25% (typically 0.15%)
- Partial loop: ≤ 0.5%
- Linearity (r): ≥ 0.9999
- Carryover:
- ≤ 0.05% (standard wash)
- Typically ≤ 0.01% (internal/external needle wash)
Washing (Pre & Post Injection)
- Washing Cycles: Up to 15 (per injection / sample / step)
- Wash Reagents: Up to 2
- Stator Wash: Programmable (1 µL steps)
Filling
- Sample Volume: Programmable (1 µL steps)
- Air Volume: Programmable
- Filling Speed: 1–100 µL/sec
- Viscosity Delay: 0–25 s
- Bubble Elimination: Up to 15 pull‑up strokes
Injection
- Injection Mode: Full loop and partial loop (programmable)
- Injection Speed: 1–500 µL/sec
- Analysis Time: 0–999 min
- Minimum Cycle Time: As low as 12 s
Sample Preparation Functions (Standard)
- Dilution
- Derivatization
- pH spiking
- Internal standard addition
- Sample dispatch and reagent addition
- Mixing cycles and intermediate washes
- Reaction time: 0–100 min (0.1 min steps)
Physical Features
- Dimensions (W × H × D): 310 × 705 × 690 mm
- Weight: 15 kg
- Power Supply: 100–240 ±10% Vac; 50–60 Hz; 55 W
Cooling Module (Optional)
- Technology: Peltier
- Temperature Range: 4 °C to 40 °C
- Accuracy: ±1 °C (typically ±0.5 °C)
- Cooling Capacity: ~20 °C below ambient (on vial)
- Power: 120 W
- Field Installation: Yes
Additional Modules (Optional)
- Barcode reader (BCR)
- Flow cell
- Gripper for vial displacement
- Internal / external needle washing
- Sample capacity extension
- Vial heater / reaction cell
- Vortex
Software
- Included: HTA Autosampler Manager (Standard Version)
- Optional Upgrade: CFR 21 Part 11 Version
- PC Requirement: Required for setup, service, method, and sequence editing
Applications
The HTA HT4000L is designed to support a wide range of chromatography workflows across research, analytical, and production laboratories, including:
- Liquid Chromatography (LC & HPLC)
- UHPLC applications requiring extended pressure capability
- Ion Chromatography (IC)
- LC/MS and hybrid workflows
- Nano‑LC applications
- Analytical and preparative chromatography
Thanks to its flexible injection configurations, inert flow‑path options, and built‑in lab‑automation capabilities, the HT4000L is suitable for use in pharmaceutical, environmental, chemical, food, and academic research laboratories.
