Description

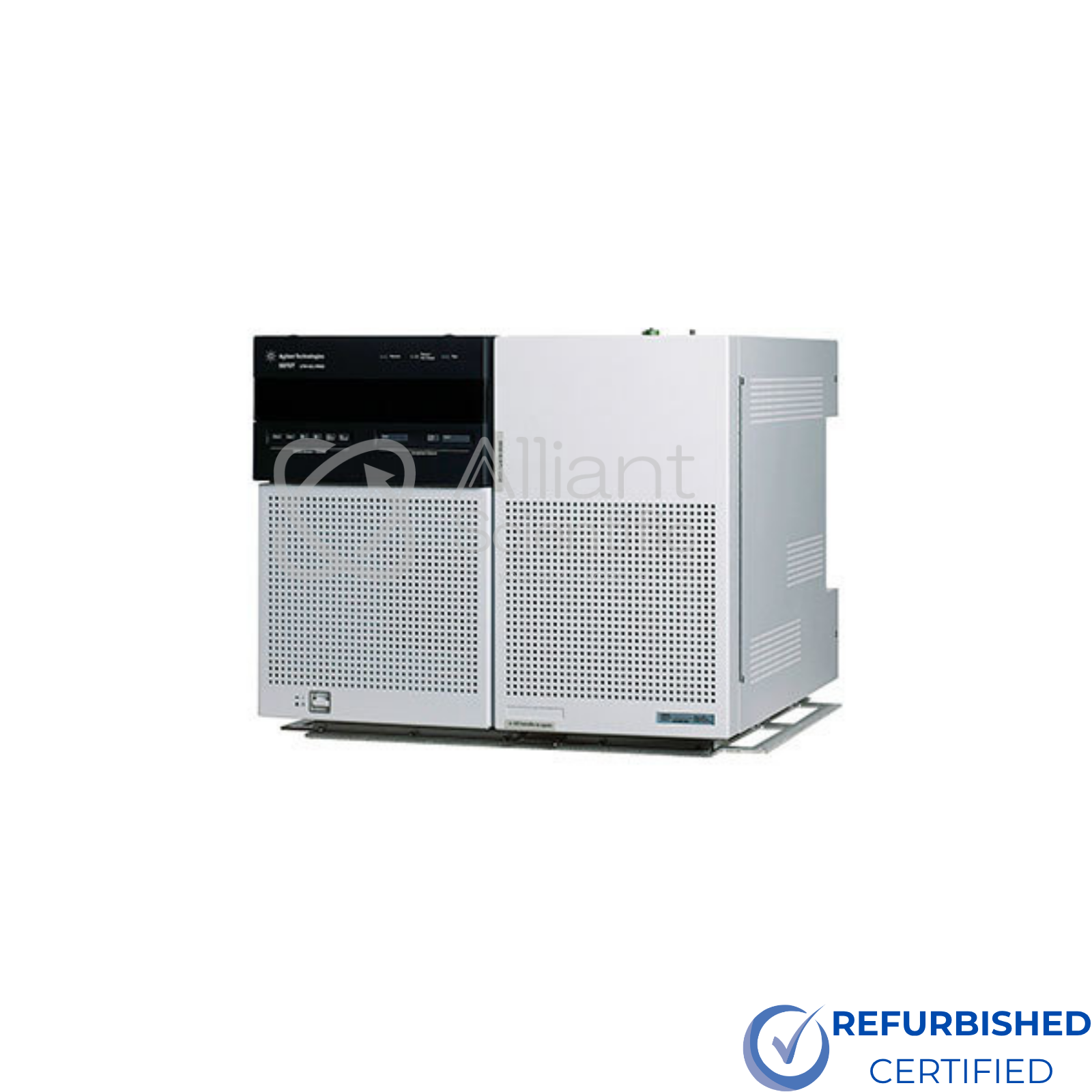

The Agilent 5975T (G4362A) LTM GC‑MSD is a compact, transportable gas chromatography–mass spectrometry system designed for fast, reliable chemical analysis in both laboratory and field environments. Built around Agilent’s Low Thermal Mass (LTM) GC technology, this system delivers rapid heating and cooling cycles, significantly reducing run times while maintaining excellent chromatographic performance. Engineered for mobility without compromising analytical power, the 5975T integrates a proven quadrupole mass selective detector with an energy‑efficient GC module. The result is a rugged GC‑MS platform capable of rapid compound identification, trace‑level detection, and consistent performance across demanding applications.
Agilent 5975T (G4362A) LTM GC‑MSD System is offered fully refurbished and tested, in working condition.
Includes:
- Agilent 5975T (G4362A) LTM GC-MSD
- Vacuum Pump
- 90-Day Warranty Coverage
Optional:
- Premium refurbishment available with extended warranty options
Disclaimer: All brand names and trademarks are the property of their respective owners and are used for identification only. We are not an authorized dealer. Software, if included, is not transferable or upgradable.
Technical Specifications
Agilent 5975T (G4362A) LTM GC‑MSD
Mass Spectrometer (MSD)
- Analyzer Type: Quadrupole mass selective detector
- Quadrupole: Gold‑plated, true hyperbolic quartz quadrupole
- Ionization Mode: Electron Ionization (EI)
- Mass Range: 1.8 – 1050 amu
- Ion Source: Inert, programmable up to 350 °C
- Detector: High‑energy dynode electron multiplier
- Scan & SIM: Simultaneous SIM/Scan supported
Gas Chromatograph (LTM GC)
- GC Technology: Low Thermal Mass (LTM) column modules
- Maximum Temperature Ramp: Up to 1200 °C/min
- Heating Method: Direct column heating (no conventional oven)
- Carrier Gas Control: Full Electronic Pneumatic Control (EPC)
- Inlet: Split/Splitless inlet standard
Performance & Productivity
- Throughput: Extremely fast GC cycle times due to rapid heating/cooling
- Power Consumption: Approximately 50% less than conventional bench‑top GC/MS systems
- Data Quality: Retention Time Locking (RTL) and Deconvolution Reporting Software (DRS) support for confident compound identification
System Design & Integration
- Form Factor: Compact, transportable GC/MS system
- Ruggedization: Anti‑vibration base for field use
- Vacuum System: Oil‑free mechanical pump (configuration‑dependent)
- Software: Agilent MSD ChemStation Applications
The Agilent 5975T LTM GC‑MSD is optimized for situations where rapid, reliable GC/MS analysis is required outside of a traditional laboratory, as well as for routine laboratory workflows.
Typical Applications Include:
- Environmental Monitoring
On‑site analysis of VOCs and semi‑volatile organic compounds in air, water, and soil. - Homeland Security & Emergency Response
Rapid identification of chemical agents, explosives, and hazardous materials. - Forensic Science
Field and laboratory analysis of accelerants, drugs, and trace evidence. - Food Safety
Detection of contaminants, flavors, and adulterants. - Industrial & Contract Laboratories
High‑throughput routine GC/MS analysis with fast turnaround times.
