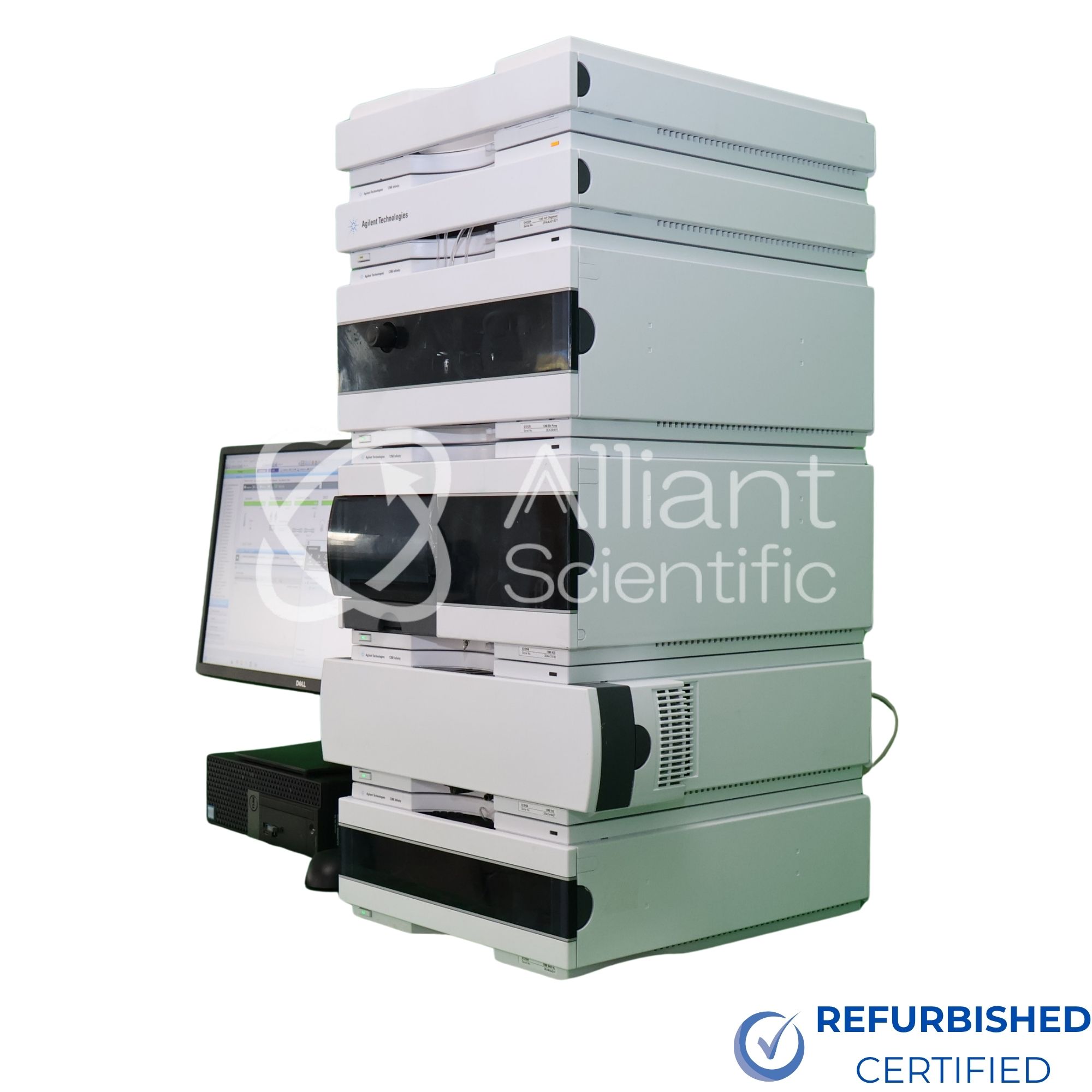

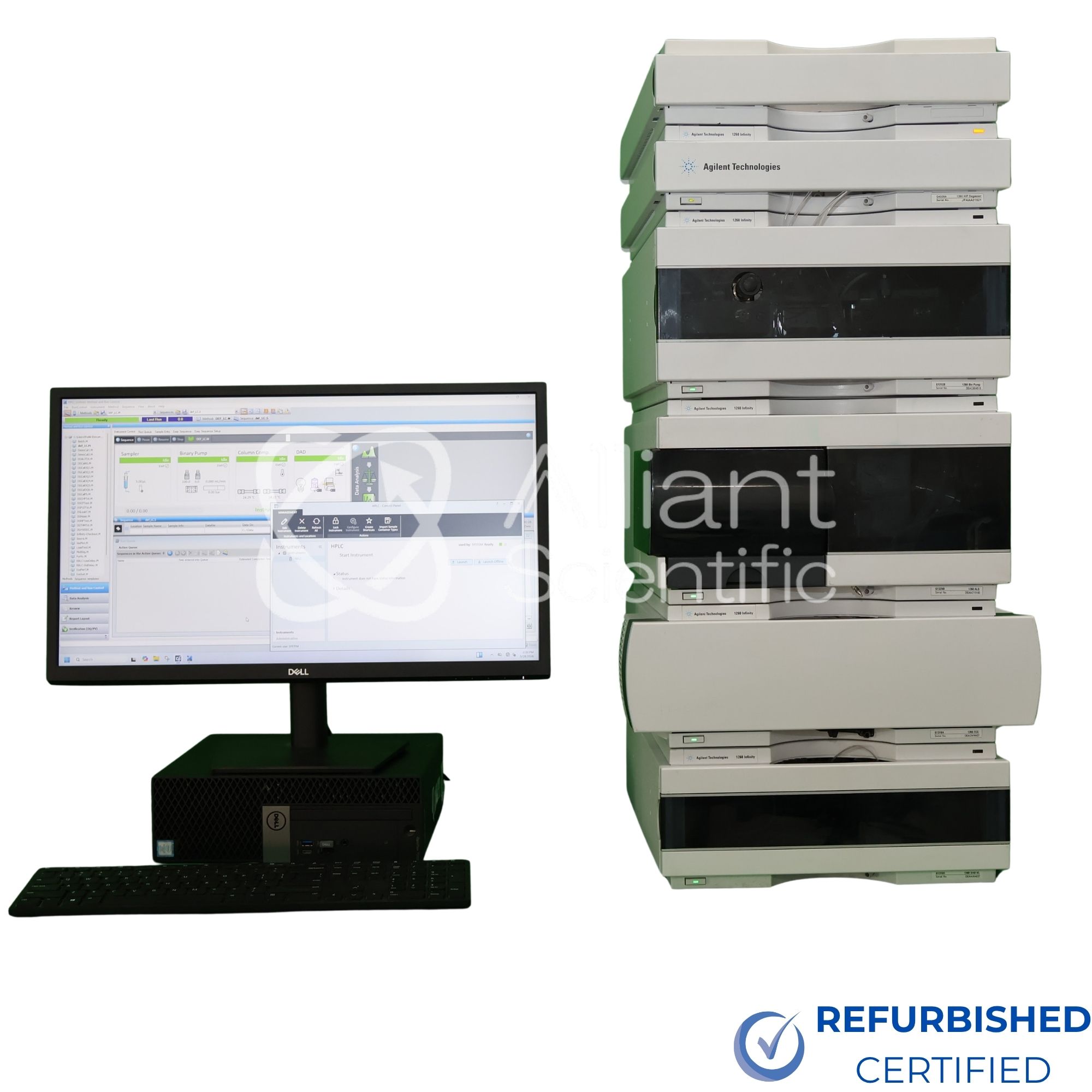

Agilent 1260 Infinity HPLC System with DAD
The Agilent 1260 Infinity HPLC System with DAD is a high-performance liquid chromatography platform designed for reliable and reproducible analysis across routine and advanced laboratory workflows. The binary high-pressure pump enables precise gradient formation and stable solvent delivery, supporting accurate separations across a wide range of analytical methods. Combined with efficient sample handling and low carryover injection, the system ensures high reproducibility and dependable results in both batch and single-run applications.
The diode array detector (DAD VL) provides multi-wavelength monitoring and full UV-Vis spectral acquisition, allowing compound identification, peak purity analysis, and quantitative measurement within a single run. This enhances analytical confidence, especially when working with complex mixtures or unknown compounds. Temperature control within the column compartment ensures stable chromatographic conditions, improving retention time consistency and peak resolution. The system’s modular yet integrated design makes it suitable for both routine QC testing and method development workflows.
Built on Agilent’s proven Infinity platform, the 1260 Infinity HPLC system offers dependable performance, flexibility, and scalability, making it a strong solution for pharmaceutical, environmental, food safety, and chemical analysis laboratories.
This refurbished Agilent 1260 Infinity HPLC System with DAD has been fully tested and verified to be in proper working condition by Alliant Scientific
Includes:
- Agilent 1260 Infinity HPLC System with DAD
- G4225A Hip-Degasser
- G1312B Binary Pump
- G1329B Autosampler
- G1316A TCC
- G1315D DAD VL
- Data System
- 90-Day Warranty Coverage
Disclaimer:Â All brand names and trademarks are the property of their respective owners and are used for identification only. We are not an authorized dealer. Software, if included, is not transferable or upgradable.
Â
Technical Specifications
- System Type: High-performance liquid chromatography (HPLC) system with DAD detection
- Pump: Binary high-pressure gradient pump (G1312B)
- Flow Rate Range: 0.001 – 10 mL/min
- Pressure Range: Up to ~600 bar
- Degassing: Integrated vacuum degasser (G4225A)
- Autosampler: Automated injection system with low carryover (G1329B)
- Injection Volume Range: ~0.1 – 100 µL
- Column Compartment: Thermostatted column compartment (G1316A)
- Temperature Range: Ambient to ~80°C
- Detector: Diode Array Detector VL (G1315D)
- Wavelength Range: ~190 – 950 nm
- Detection Capability: Multi-wavelength and spectral acquisition
- Gradient Capability: Binary high-pressure gradient mixing
- Automation: Sequence-based batch processing
- Power Requirements: 100 – 240 V, 50/60 Hz
Additional information
| Availability | |
|---|---|
| Brand | |
| Condition | |
| Onsite Installation | |
| Warranty | |
| Model |
Key Features
- Diode Array Detection (DAD VL): Enables multi-wavelength monitoring and spectral analysis
- Binary Gradient Pump: Provides precise solvent delivery and reproducible separations
- High Sensitivity Analysis: Suitable for both qualitative and quantitative workflows
- Stable Baseline Performance: Integrated degassing minimizes noise and improves data quality
- Accurate Sample Injection: Autosampler ensures repeatable and low carryover operation
- Temperature-Controlled Separation: Enhances retention time reproducibility
- Flexible Method Development: Supports a wide range of analytical methods
- Reliable Daily Operation: Designed for routine lab use and QA/QC environments
Applications
- Pharmaceutical Analysis: Identification and quantification of APIs, impurities, and degradation products
- Environmental Testing: Detection of organic contaminants and pollutants
- Food and Beverage Analysis: Measurement of additives, preservatives, and quality markers
- Chemical Analysis: Separation and characterization of compounds in complex mixtures
- Quality Control Laboratories: Routine testing for compliance and product consistency
- Research and Development: Method development and analytical validation workflows
Frequently Asked Questions (FAQ)
- What is the Agilent 1260 Infinity HPLC system used for? It is used for high-performance liquid chromatography analysis in pharmaceutical, environmental, and chemical laboratories.
- What is the advantage of a diode array detector? A DAD allows multi-wavelength detection and full spectral acquisition, improving compound identification and peak purity analysis.
- Does this system support gradient analysis? Yes, the binary pump provides high-pressure gradient capability for flexible method development.
- What types of compounds can be analyzed? Compounds with UV absorbance such as pharmaceuticals, environmental analytes, and food components.
- How does temperature control improve performance? Stable column temperatures improve retention time consistency and separation reproducibility.
- Is this system suitable for routine laboratory workflows? Yes, it is designed for reliable daily operation in QA/QC and analytical labs.
- Can this system handle batch processing? Yes, automated injection and sequence operation support high-throughput workflows.
- What industries use this system? Pharmaceutical, environmental, food safety, and chemical laboratories commonly use HPLC systems with DAD.
