Description

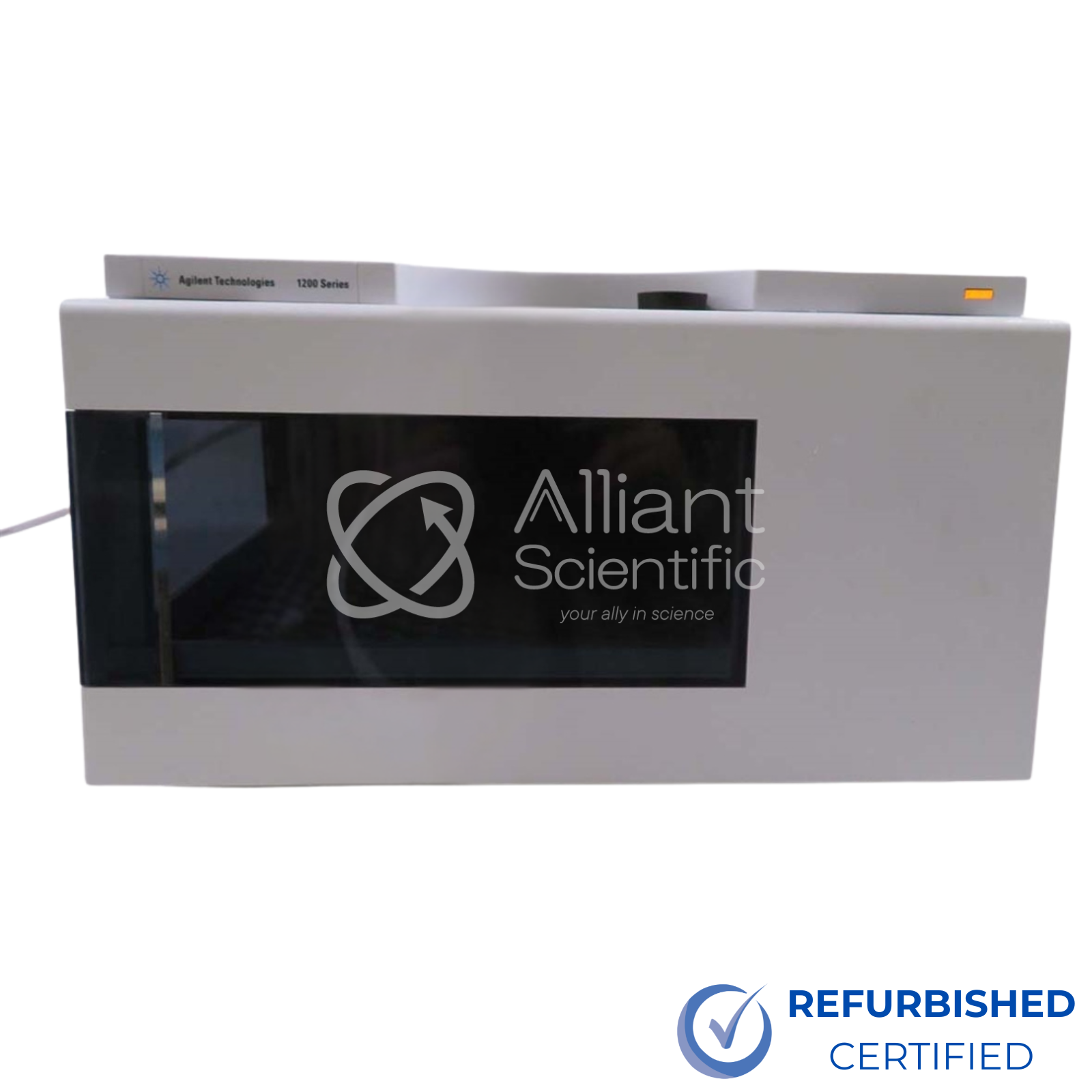

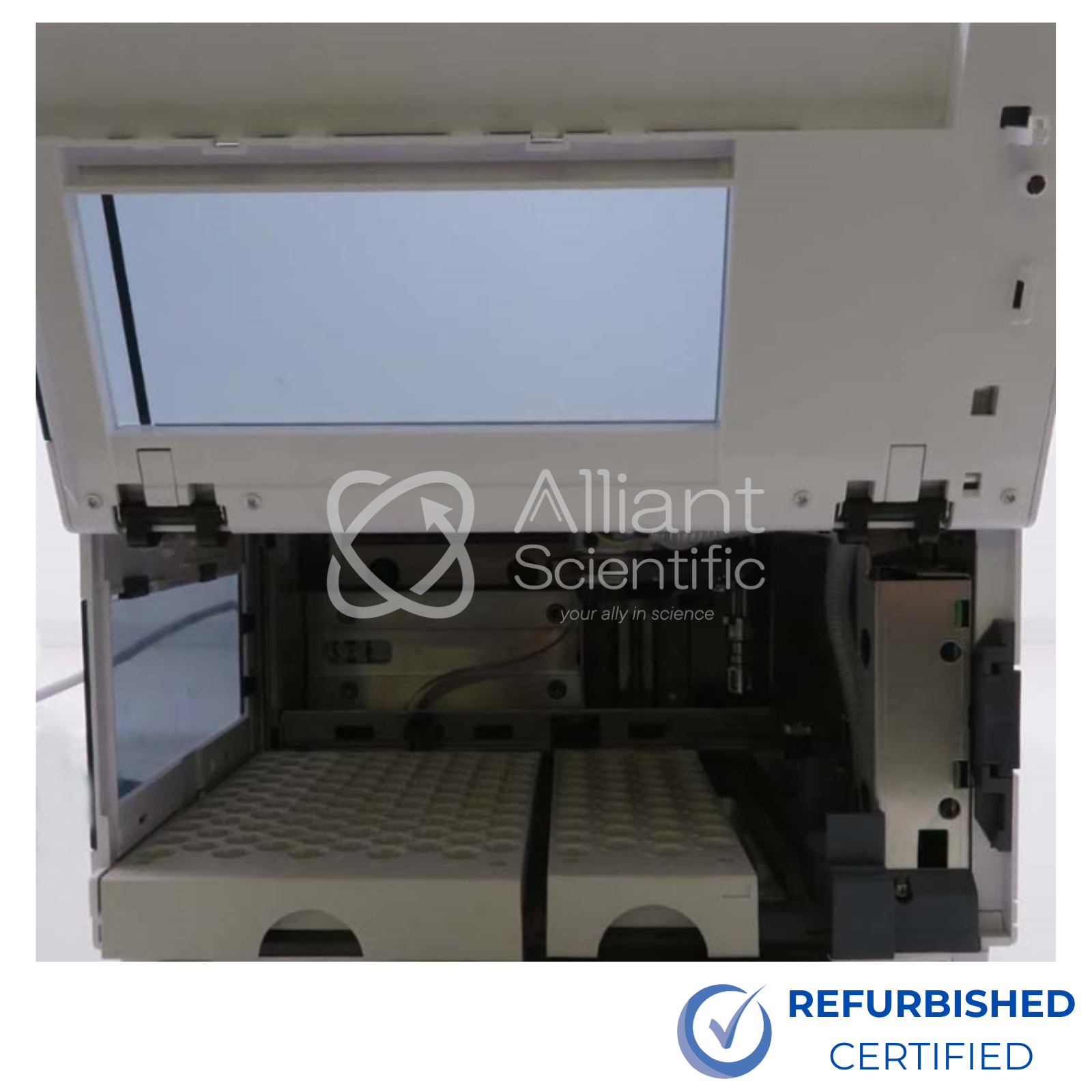

The Agilent 1200 G1364C Analyt‑FC is designed for automated collection of chromatographic fractions during analytical‑scale HPLC separations. It diverts eluent from the flow path into collection vessels based on time, signal‑based events, or predefined collection schemes, enabling precise isolation of target peaks. This fraction collector operates as an integrated module within the Agilent 1200 Series platform and is typically used in workflows requiring reproducible fraction recovery, such as method development, impurity isolation, and sample purification prior to downstream analysis.
This refurbished Agilent 1200 G1364C Analyt‑FC has been fully tested and verified to be in proper working condition by Alliant Scientific.
Includes:
- Agilent 1200 G1364C Analyt‑FC
- 30 Day Warranty
TECHNICAL SPECIFICATIONS
Agilent 1200 G1364C Analyt‑FC
- Module type: Analytical‑scale fraction collector
- Collection triggers:
- Time‑based intervals
- Peak‑based collection (threshold and slope)
- Timetable and manual trigger modes
- Operating modes:
- Discrete fraction collection with waste diversion
- Continuous flow collection (well‑plate dependent)
- Maximum flow rate: Up to 10 mL/min (higher flow rates possible with configuration changes)
- Maximum back pressure at diverter valve: Approx. 6 bar
- Collection vessels:
- Microtiter well plates
- Vials, test tubes, or funnels with external containers (tray dependent)
- Maximum tube height:
- Approx. 48 mm (standard needle configuration)
- Up to 75 mm (alternate needle configuration)
- Maximum fraction volume:
- Approx. 20–30 mL per tube (size dependent)
- Unlimited when using funnel‑based external containers
- Needle positioning: Programmable depth control for vials, tubes, and well plates
- Control software: Agilent ChemStation for LC
- System compatibility: Agilent 1200 Series HPLC modules
