Description

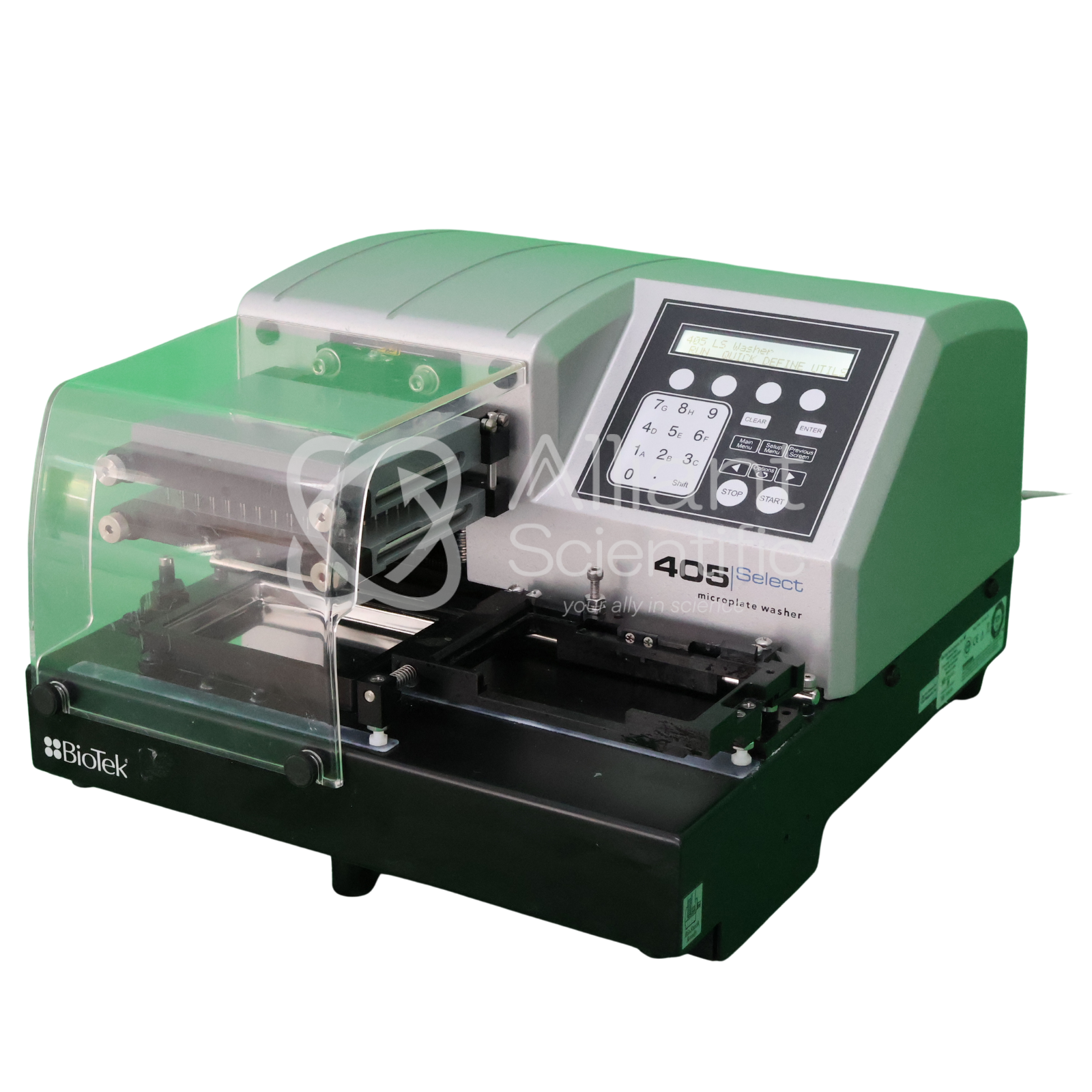

The BioTek 405 LS Select Microplate Washer is a reliable, high‑throughput plate washing system designed for ELISA, cell‑based, and bead‑based assays. Featuring flexible wash protocols, precision dispensing, and robust construction, it delivers consistent and reproducible washing performance for research and clinical laboratories.
The BioTek 405 LS Select Microplate Washer is offered fully tested, in working condition.
Includes:
- BioTek 405 LS Select Microplate Washer
- Power Cable
- 30-Day Warranty Coverage
General Information
- Manufacturer: BioTek Instruments (now part of Agilent)
- Model: 405 LS Select
- Part Number: 405LSUS
- Product Type: Automated Microplate Washer
- Application: ELISA, biochemical assays, immunoassays, cell‑based assays
- Configuration: Select model with flexible wash options
Plate Compatibility
- Plate Formats:
- 96‑well microplates
- 384‑well microplates (with appropriate manifold)
- Plate Types:
- Flat‑bottom
- U‑bottom
- V‑bottom
- Strip‑well Plates: Supported
Wash Performance
- Number of Wash Buffers: Up to 4 (configuration dependent)
- Dispense Precision: High‑accuracy peristaltic pump system
- Residual Volume: Low residual volume per well
- Aspiration Method: Dual‑action aspirate/dispense manifold
- Wash Modes:
- Overflow wash
- Bottom wash
- Soak and mixed wash routines
- Programmable Cycles: Multiple wash protocols per run
Dispensing & Aspiration System
- Pump Type: Precision peristaltic pumps
- Dispense Control: Programmable dispense volume per well
- Aspiration Control: Adjustable aspiration height and speed
- Manifold Options:
- 96‑well manifold
- 384‑well manifold (optional)
- Cross‑contamination Prevention: Minimized via controlled aspiration paths
Control & Operation
- Interface: Integrated keypad and LCD display
- Programming: User‑programmable wash protocols
- Memory: Stores multiple user‑defined programs
- Operation Mode: Stand‑alone (no PC required)
Fluid Handling
- Wash Bottles:
- Dedicated buffer bottles
- Waste bottle
- Bottle Capacity: Configuration dependent
- Sensors: Liquid level monitoring (model dependent)
Safety & Reliability
- Plate Detection: Ensures proper plate positioning
- Liquid Sensors: Protect against overflow and system errors
- Construction: Chemical‑resistant internal fluid paths
- Maintenance: Easy‑access manifolds for cleaning
Electrical & Environmental
- Power Requirements: 100–240 VAC, 50/60 Hz
- Region Code: US configuration (405LSUS)
- Operating Environment: Standard laboratory conditions
Physical Specifications
- Width: ~16.5 in (420 mm)
- Depth: ~15.0 in (381 mm)
- Height: ~10.5 in (267 mm)
- Weight: ~33 lb (15 kg)
Applications
- ELISA plate washing
- Immunoassays
- Cell‑based assays
- Biochemical screening
- Research and clinical diagnostics
