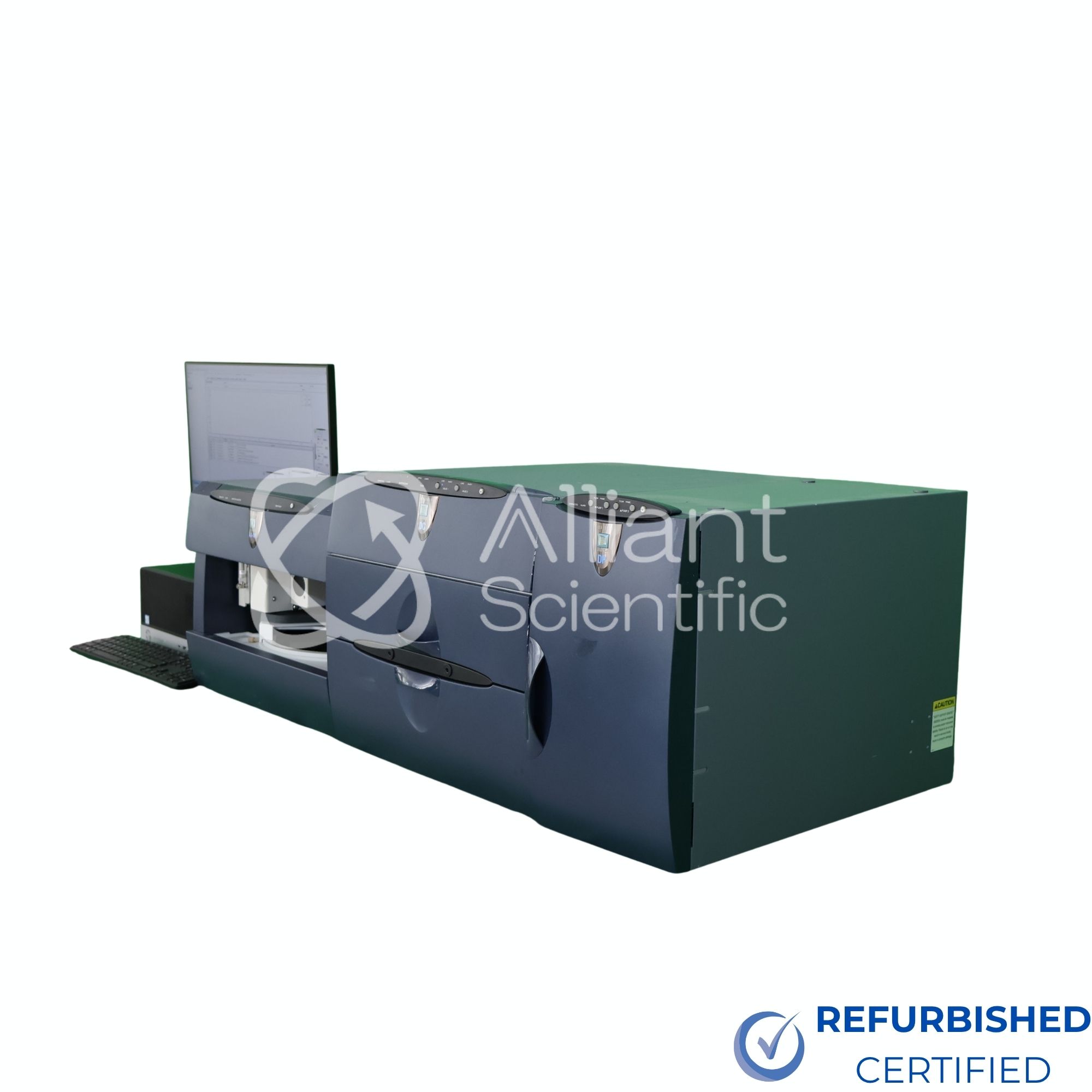

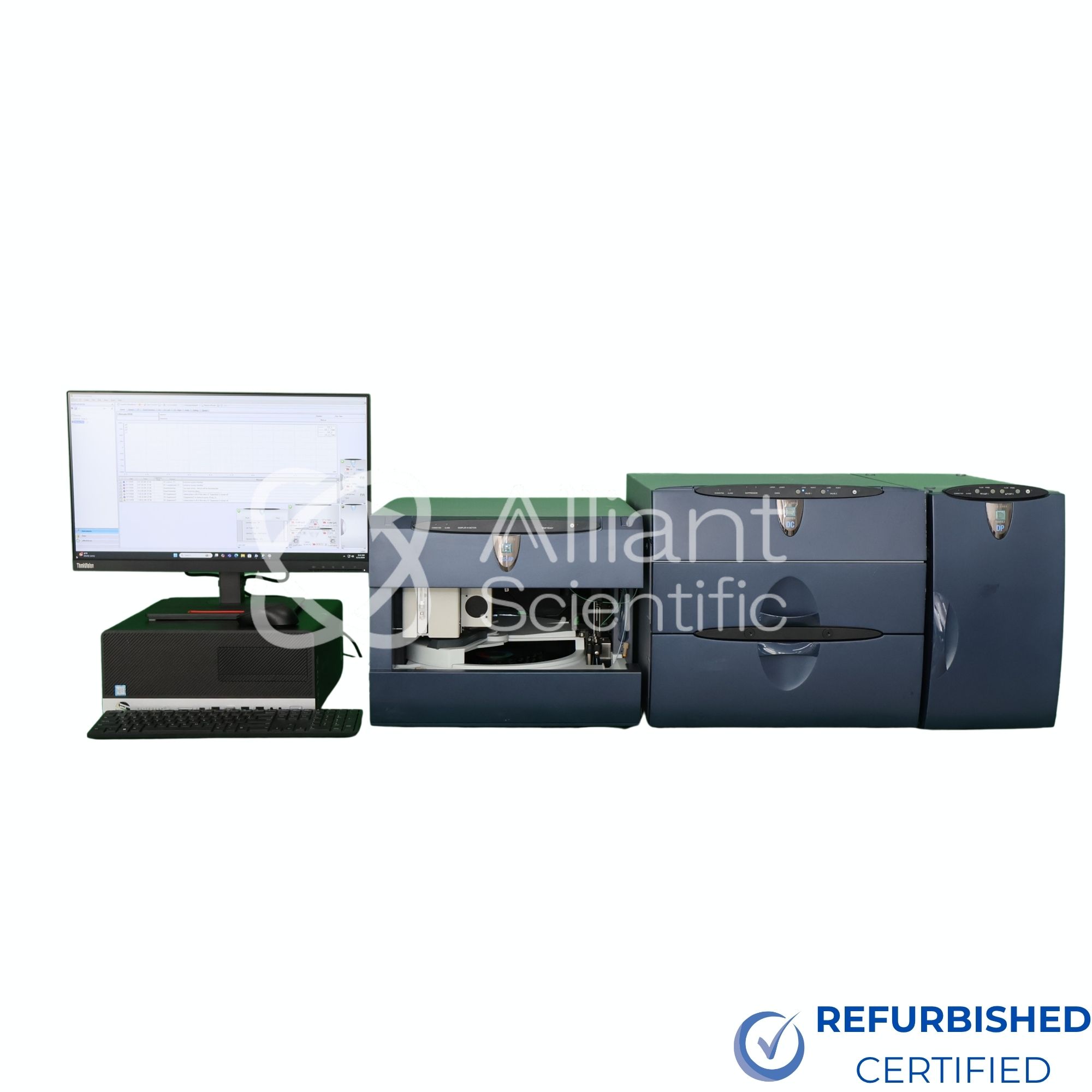

Thermo Dionex ICS‑5000 Dual Channel System Overview
The Thermo Dionex ICS‑5000 Dual Channel System is a high-pressure ion chromatography platform configured for simultaneous dual-channel analysis. It integrates two independent flow paths with dual pumps and dual conductivity detectors, allowing parallel separation of anions and cations or two different methods in a single system. Each channel operates independently, increasing throughput and reducing total analysis time.
The system uses Reagent-Free Ion Chromatography (RFIC) with electrolytic eluent generation, producing eluents directly from deionized water. This eliminates manual preparation and maintains consistent eluent concentration for reproducible results. High-pressure capability (up to ~6000 psi) supports small-particle columns for faster separations and improved resolution, while temperature-controlled compartments stabilize baseline and retention times.
The AS‑AP autosampler provides automated, high-throughput sample handling with support for large vial capacity and microplate formats. It enables programmable injection volumes, sample preparation steps, and simultaneous or sequential injection to both channels. Combined with Chromeleon software, the system runs fully automated dual-channel workflows with minimal operator intervention.
This refurbished Thermo Dionex ICS‑5000 Dual Channel System has been fully tested and verified to be in proper working condition by Alliant Scientific.
Includes:
- Thermo Dionex ICS-5000 DC Detector
- Dual Conductivity Detector
- Thermo Dionex ICS-5000 DP Dual Pump
- Thermo Dionex AS-AP Autosampler
- PC loaded with Data System
- 60-Day Warranty Coverage
Options:
- Premium refurbishment available with extended warranty options
- Electrochemical Detectors available upon request.
Disclaimer: All brand names and trademarks are the property of their respective owners and are used for identification only. We are not an authorized dealer. Software, if included, is not transferable or upgradable.
Technical Specifications
| Dionex ICS-5000 Dual Channel System | |
| System Type | Dual-channel ion chromatography (DC configuration) |
| Pump Configuration | Dual independent pumps |
| Flow Rate Range | ~0.001 – 10 mL/min (per channel, method dependent) |
| Maximum Pressure | Up to ~6000 psi |
| Detection | Dual conductivity detectors |
| Eluent Generation | Electrolytic (RFIC) |
| Column Compatibility | Standard and high-efficiency IC columns |
| Temperature Control | Thermostatted column and detector compartments |
| Control Software | Thermo Chromeleon CDS |
| AS-AP Autosampler | |
| Sample Formats | Vials, well plates |
| Injection Modes | Simultaneous or sequential dual-channel injection |
| Automation Features | Sample preparation, dilution, preconcentration |
| Operation | Fully automated, high-throughput workflows |
Additional information
| Availability | |
|---|---|
| Brand | |
| Condition | |
| Model | |
| Onsite Installation | |
| Warranty |
Key Features
- Dual-channel ion chromatography for simultaneous analysis (anions/cations or dual methods)
- Independent dual pump system for parallel operation
- Dual conductivity detectors for simultaneous detection
- High-pressure capability up to ~6000 psi for fast, high-resolution separations
- Reagent-Free IC (RFIC) with electrolytic eluent generation
- Eliminates manual eluent preparation and improves reproducibility
- Thermostatted compartments for stable retention times and baseline
- Compatible with small-particle IC columns for increased efficiency
- AS-AP autosampler supports vials and microplates for high-throughput workflows
- Simultaneous or sequential injection into dual IC channels
- Full system control via Thermo Chromeleon CDS software
Applications
- Simultaneous anion and cation analysis in water and wastewater
- Environmental monitoring and regulatory testing
- Food and beverage ion analysis
- Pharmaceutical quality control and impurity analysis
- Industrial process and chemical analysis
- High-throughput laboratories requiring dual-method workflows
Frequently Asked Questions
What is the advantage of a dual-channel IC system?
It allows simultaneous analysis on two independent channels, reducing total run time and increasing lab throughput.
Can the system run anions and cations at the same time?
Yes, each channel operates independently, allowing parallel analysis of anions and cations.
Does the system require manual eluent preparation?
No, RFIC functionality generates eluents electrolytically from deionized water.
How does the AS-AP autosampler improve productivity?
It supports automated injection, sample preparation, and dual-channel operation for high-throughput workflows.
Is the system suitable for routine analysis?
Yes, it is designed for continuous operation in routine and high-throughput ion chromatography laboratories.
