LongerPump BT600-2J Peristaltic Pump with YZ1515x Pump Head

LongerPump BT600-2J Peristaltic Pump with YZ1515x Pump Head

Name: LongerPump BT600-2J Peristaltic Pump with YZ1515x Pump Head - Alliant Scientific
Price: 750.00 USD
Availability: InStock

Listing #:LS-006770

Category:Peristaltic Pumps

Brand:LongerPump

Model:BT600-2J, YZ1515x

Availability:In Stock

Condition:Tested & Working

Warranty:30 Days

Onsite Installation:Available upon request

$750.00

In Stock

Make an Offer

LongerPump BT600-2J Peristaltic Pump with YZ1515x Pump Head — a medium-to-high flow pump drive with 1-600 rpm speed range and RS-485 computer control. Tested and working by Alliant Scientific.

Category: Peristaltic Pumps Tags: laboratory fluid handling, LongerPump BT600-2J, medium-high flow pump, peristaltic pump, refurbished lab pump, RS-485 pump control, stackable pump head, YZ1515x Brand: LongerPump

Request for Quote

Description

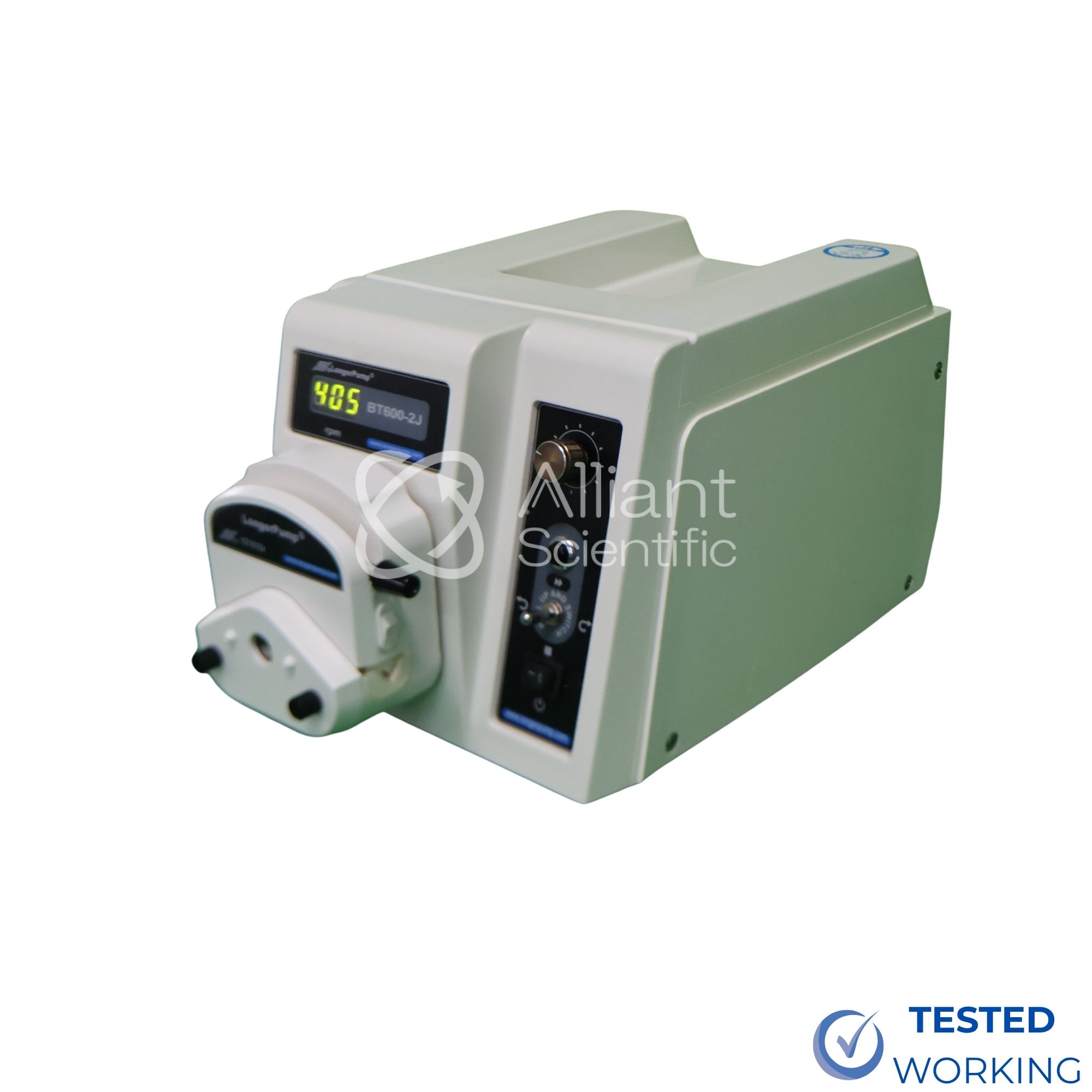

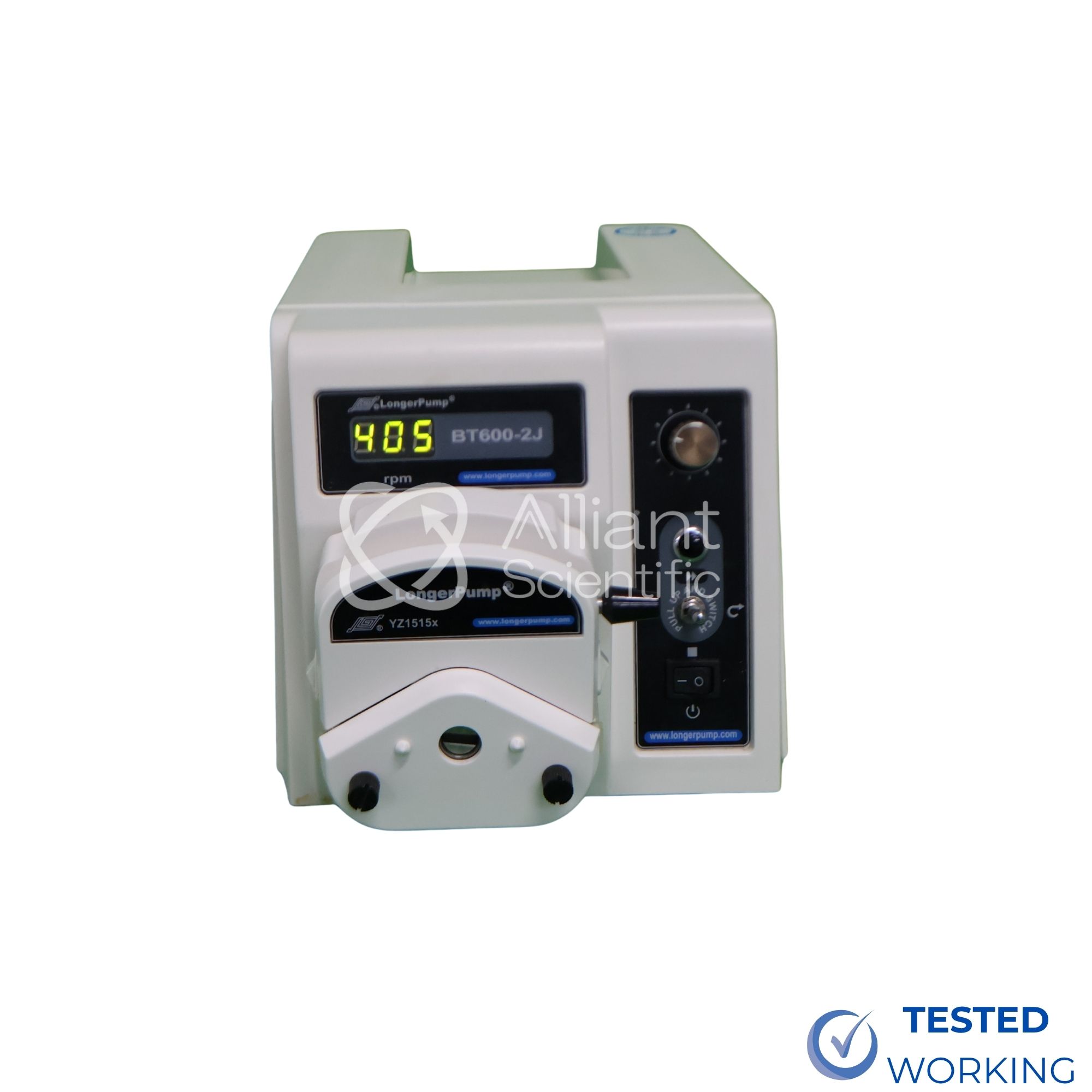

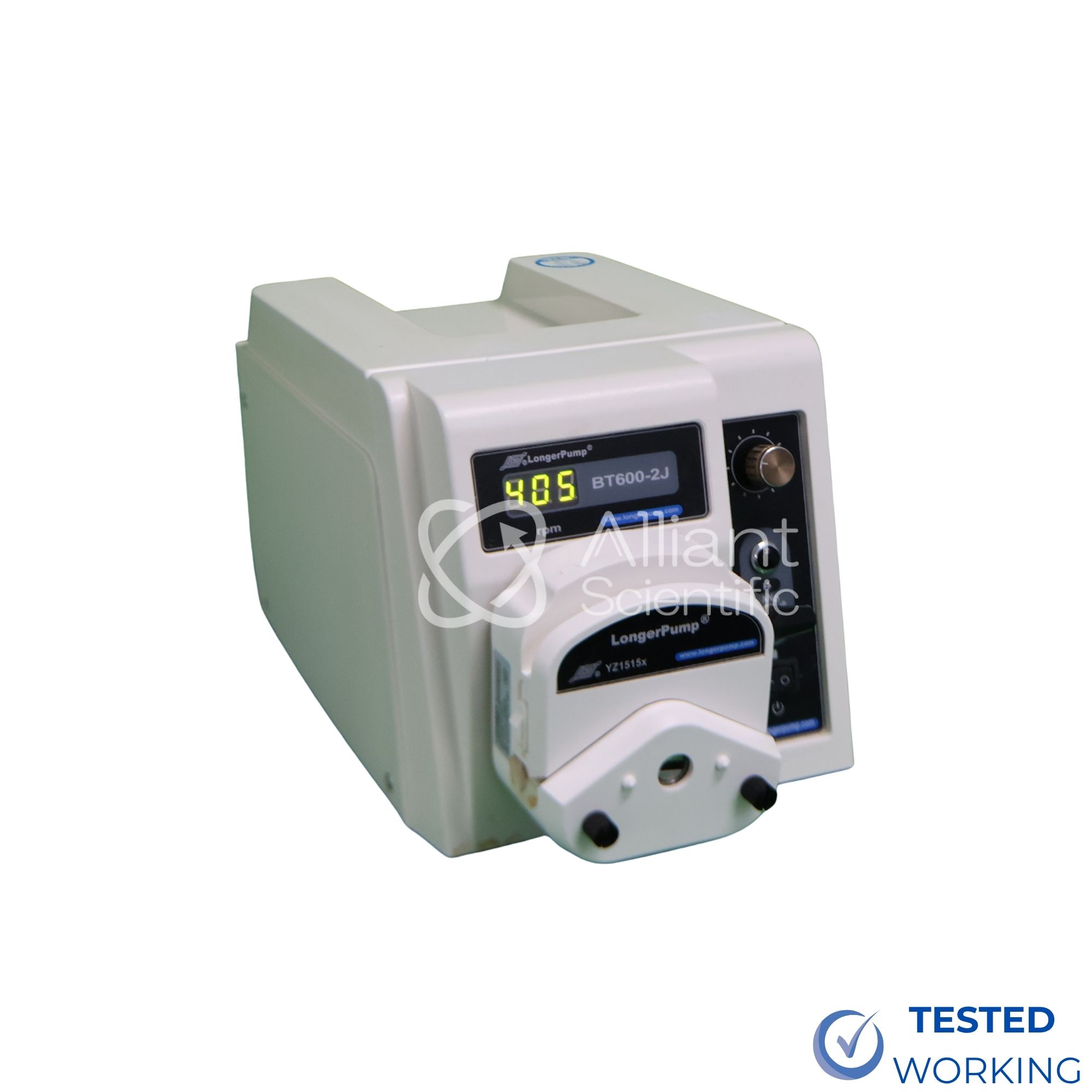

LongerPump BT600-2J Peristaltic Pump with YZ1515x Pump Head Overview

The LongerPump BT600-2J is a medium-to-high flow peristaltic pump drive with a speed range of 1 to 600 rpm, reversible, paired here with a YZ1515x pump head. A 3-digit LED display shows current speed, with a rotary encoded switch for manual adjustment.

External control is supported via start/stop and CW/CCW direction inputs, plus speed control through 0-5V, 0-10V, 4-20mA, or 0-10kHz signals, as well as an RS-485 interface for computer control. A memory function automatically stores running parameters, and a prime button allows fast filling and emptying of tubing.

The YZ1515x pump head delivers flow rates up to 2,200 mL/min with its 3-roller configuration, accepting tubing sizes 13#, 14#, 19#, 16#, 25#, 17#, and 18#. The stainless steel rotor is housed in a PESU body, and the head is stackable for multi-channel configurations.

This LongerPump BT600-2J Peristaltic Pump with YZ1515x Pump Head is offered fully tested, in working condition, by Alliant Scientific.

Includes:

LongerPump BT600-2J Pump Drive
- YZ1515x Pump Head
30-Day Warranty

Looking for Other Lab Pumps?

Browse our full peristaltic pumps inventory for other configurations.

Listing last updated: October 2026.

Technical Specifications

Manufacturer	LongerPump
Drive Model	BT600-2J
Pump Head Model	YZ1515x (3-Roller)
Drive Speed Range	1 to 600 rpm, reversible
Speed Resolution	1 rpm
Speed Control	Rotary encoded switch
Display	3-digit LED
External Control	Start/stop, CW/CCW, 0-5V, 0-10V, 4-20mA, 0-10kHz; RS-485 interface
Maximum Channels	2
Power Supply	AC 90-260V, 50/60Hz
Power Consumption	< 100W
Drive Dimensions (L x W x H)	280 x 200 x 180 mm
Drive Weight	3.8 kg
IP Rating	IP31
Pump Head Max Flow Rate	2,200 mL/min (3-roller)
Pump Head Rollers	3, stainless steel
Pump Head Housing	PESU
Compatible Tubing Sizes	13#, 14#, 19#, 16#, 25#, 17#, 18#
Pump Head Weight	0.4 kg
Operating Temperature	0°C to 40°C
Relative Humidity	< 80%, non-condensing
Condition	Tested and working
Warranty	30 days

Additional information

Availability	In Stock
Brand	LongerPump
Model	BT600-2J, YZ1515x
Warranty	30 Days
Condition	Tested & Working
Onsite Installation	Available upon request

Key Features

Wide Speed Range
1 to 600 rpm, reversible, with 1 rpm resolution for precise flow control.
Multiple Control Options
Manual rotary control, external analog/digital signal control, or RS-485 computer control.
Automatic Parameter Memory
Running parameters are stored automatically between uses.
Fast Prime Function
Dedicated prime button speeds up tubing filling and emptying.
Stackable Pump Head Design
YZ1515x head supports multi-channel configurations on a single drive.

Applications

Medium-to-High Flow Transfer
Flow rates up to 2,200 mL/min support higher-throughput fluid transfer needs.
Automated Process Integration
RS-485 and analog control inputs support integration into automated systems.
Chemical & Reagent Dispensing
Precise, repeatable flow control for laboratory dispensing applications.
General Laboratory Fluid Handling
Flexible tubing compatibility supports a range of fluid transfer needs.

FAQ (Frequently Asked Questions)

What is the flow rate range of this pump?

Up to 2,200 mL/min with the YZ1515x pump head’s 3-roller configuration, depending on tubing size and speed.

Can this pump be computer controlled?

Yes — it supports RS-485 communication, along with analog control via 0-5V, 0-10V, 4-20mA, or 0-10kHz signals.

What tubing sizes are compatible?

13#, 14#, 19#, 16#, 25#, 17#, and 18#.

Can multiple pump heads be stacked on one drive?

Yes — the YZ1515x head is stackable, and the drive supports up to 2 channels.

Does this unit include a warranty?

Yes — this unit ships with a 30-day warranty.
