HTA 3200A Premium Automatic Liquid Sampler
Description

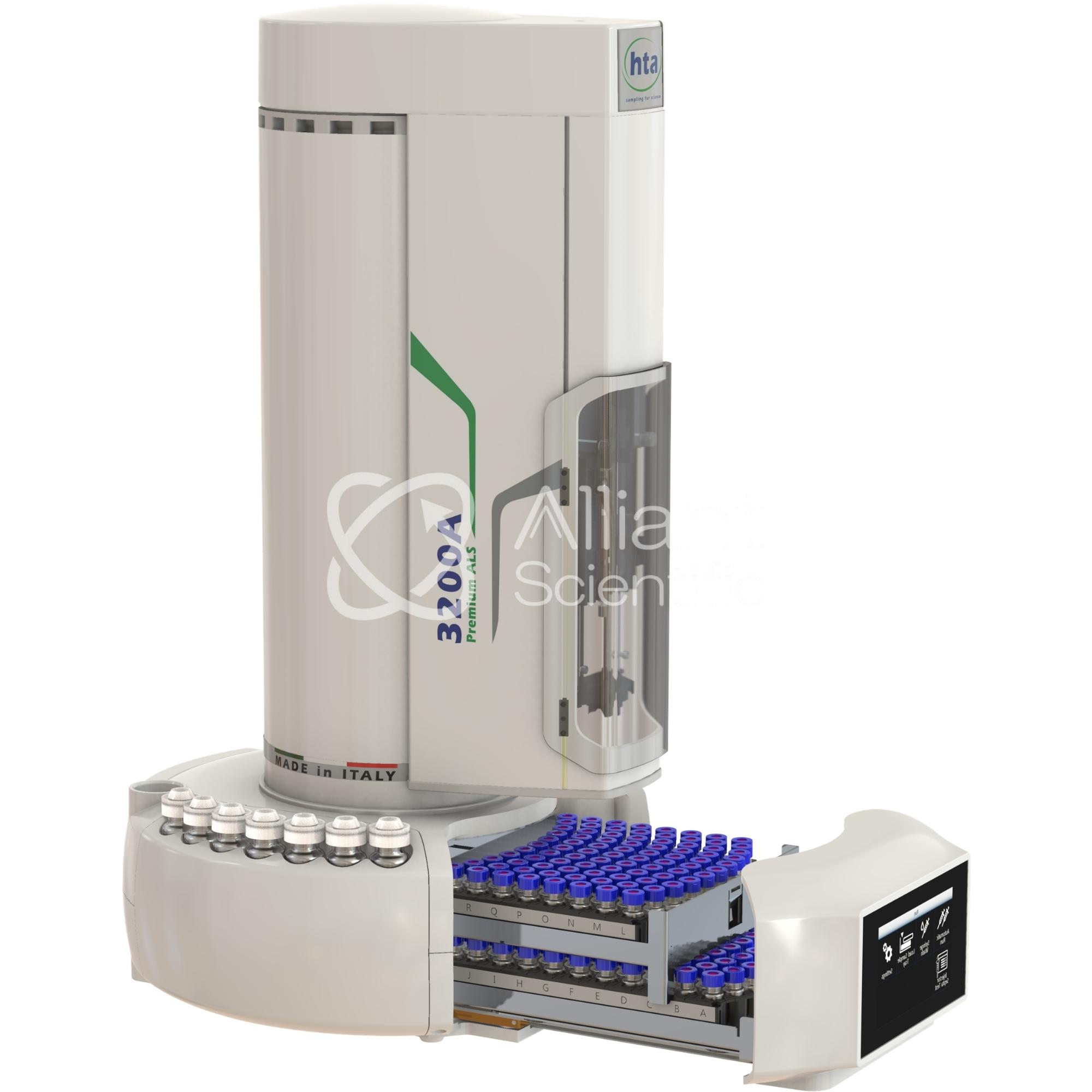

HTA 3200A Premium Automatic Liquid Sampler Overview
The HTA 3200A Premium Automatic Liquid Sampler for GC & GC/MS is an automated liquid sampling system designed to support high‑throughput gas chromatography workflows. The instrument accommodates up to 209 sample vials arranged in removable racks, allowing long analytical sequences to be run with minimal operator intervention. The HTA 3200A Premium Automatic Liquid Sampler is commonly selected by laboratories upgrading from manual injection or lower‑capacity sampling systems.

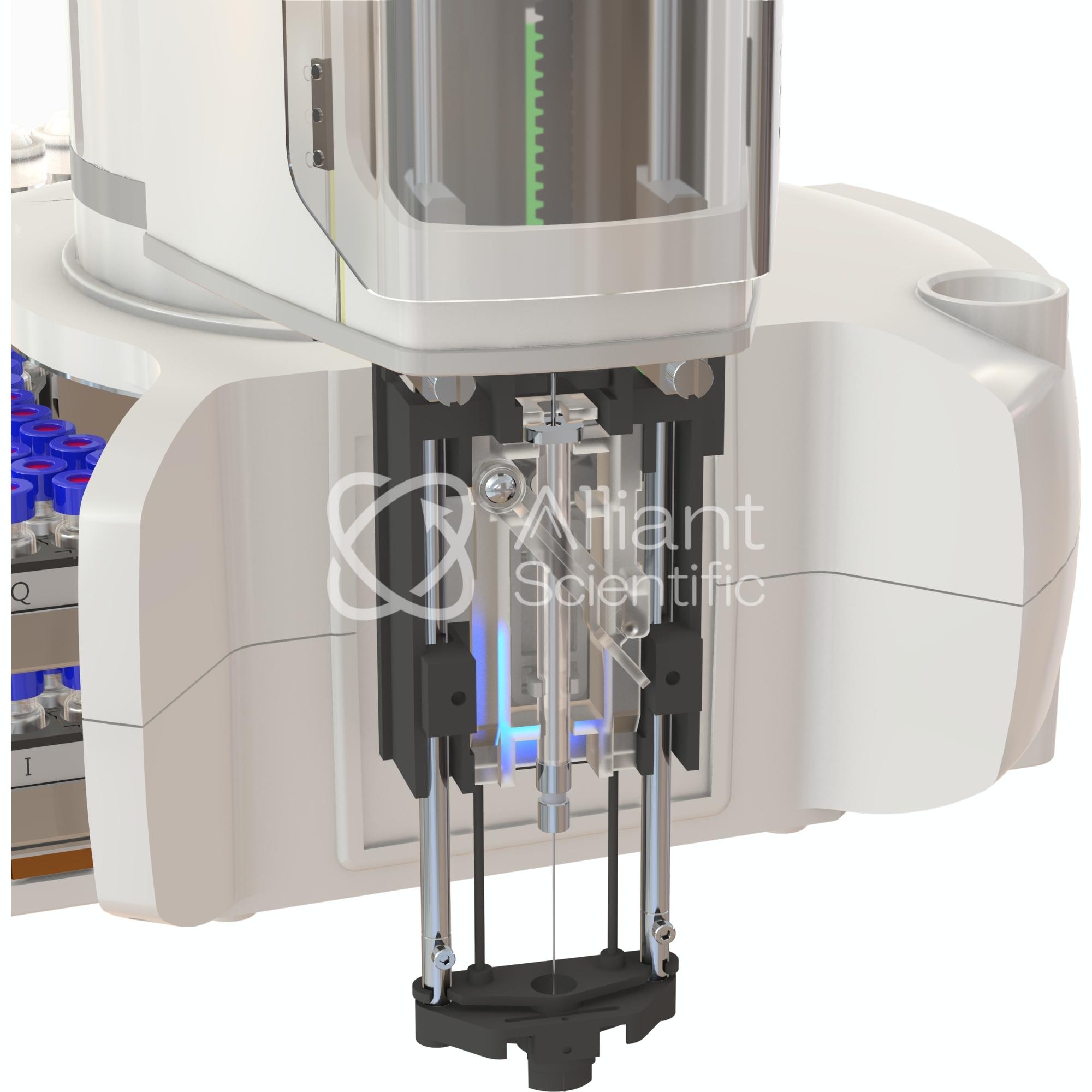

Liquid handling is performed using a motor‑driven syringe mechanism with programmable aspirate, air gap, and injection steps to ensure repeatable sample transfer across routine GC and GC/MS methods. The system supports unattended operation and is commonly used in laboratories processing large sample batches where consistency and workflow efficiency are critical.
Available from Alliant Scientific, an authorized HTA distributor, supplying the HTA 3000A Automatic Liquid Autosampler with full support for system configuration, installation.
Technical Specifications
| General | |
|---|---|
| Product Type | Automatic liquid sampler for gas chromatography applications |
| Sample Capacity | Up to 209 × 2 mL vials using removable racks |
| User Interface | Integrated touch screen |
| Electrical Control | LAN and TTL; optional RS‑232 |
| Sample Handling | |
| Injection System | Motor‑driven syringe mechanism |
| Syringe Volume Range | 0.5 µL to 100 µL (depending on syringe configuration) |
| Injection Speed | Programmable, up to 100 µL/sec |
| Injection Time | Less than 100 milliseconds |
| Washing | |
| Washing Capability | Single or double wash |
| Solvent Capacity | Six solvent vials, 10 mL each |
| Physical Characteristics | |
| Dimensions (W × H × D) | 280 × 570 × 320 mm |
| Weight | Approximately 9.2 kg |
| Power | |
| Power Requirements | 100–240 VAC, 50–60 Hz |
Additional information
| Availability | |
|---|---|
| Brand | |
| Condition | |
| Model | |
| Onsite Installation | |
| Warranty |
Key Features
-
209‑sample capacity
Supports up to 209 liquid samples arranged in removable vial racks, enabling long analytical sequences and reduced operator intervention. -
Automated liquid injection system
Motor‑driven syringe mechanism performs programmable aspirate, air gap, and injection steps to ensure consistent sample introduction across GC and GC/MS methods. -
Unattended operation support
Designed for extended and overnight analytical runs, helping laboratories maintain throughput while minimizing manual handling. -
Integrated instrument control
Local user interface allows method setup, monitoring, and manual operations, with optional external control for multi‑instrument laboratory environments. -
GC and GC/MS workflow compatibility
Intended for use with a wide range of gas chromatography and GC/MS systems commonly deployed in analytical laboratories. -
High‑throughput laboratory suitability
Commonly implemented in routine, regulated, and multi‑user labs where repeatability, operational consistency, and sample handling efficiency are required.
Applications
-
Gas chromatography (GC)
Automated liquid injection for routine and high‑volume GC analyses requiring consistent sample introduction. -
GC–mass spectrometry (GC/MS)
Suitable for GC/MS workflows where repeatable injections and reduced manual handling are important for data consistency. -
Environmental testing laboratories
Commonly used for processing large sample batches in water, soil, and environmental monitoring applications. -
Food and beverage analysis
Supports routine quality and compliance testing involving liquid samples and standardized GC methods. -
Petrochemical and energy laboratories
Applied in laboratories running continuous GC sequences for hydrocarbons, fuels, and related compounds. -
Pharmaceutical and chemical quality control
Used in QC environments where automation helps maintain repeatability across validated analytical methods. -
Contract and multi‑user laboratories
Suitable for shared lab environments handling diverse sample loads and extended unattended runs.
Product Brochure:
HTA 3200A Automatic Liquid Sampler Brochure: hta-3200a-automatic-liquid-sampler-brochure.pdf
FAQ
- What type of samples does the HTA 3200A handle?
The HTA 3200A is designed for liquid samples prepared for gas chromatography and GC/MS analysis using standard vial formats. - How many samples can be loaded at one time?
The system supports up to 209 sample vials arranged in removable racks, allowing long analytical sequences to be run without frequent operator interaction. - Is the sampler suitable for unattended operation?
Yes. The HTA 3200A is commonly used for extended and overnight GC runs, helping laboratories maintain throughput while reducing manual handling. - Can injection parameters be adjusted for different methods?
Injection‑related parameters such as aspirate volume, air gaps, and injection steps are user‑defined, allowing adaptation to different GC methods and sample types. - Is the HTA 3200A compatible with GC/MS systems?
The sampler is intended for use with GC and GC/MS platforms typically found in analytical laboratories and is selected based on application and instrument configuration. - What types of laboratories typically use this sampler?
The HTA 3200A is commonly deployed in environmental, food and beverage, petrochemical, pharmaceutical, quality control, and contract laboratories handling high sample volumes.
