Alltech 2000 Evaporative Light Scattering Detector (ELSD)
$1,450.00
In Stock
Related HPLC Systems
Explore our liquid chromatography (HPLC) category to compare evaporative light scattering detectors (ELSD), UV detectors, HPLC systems.
Description

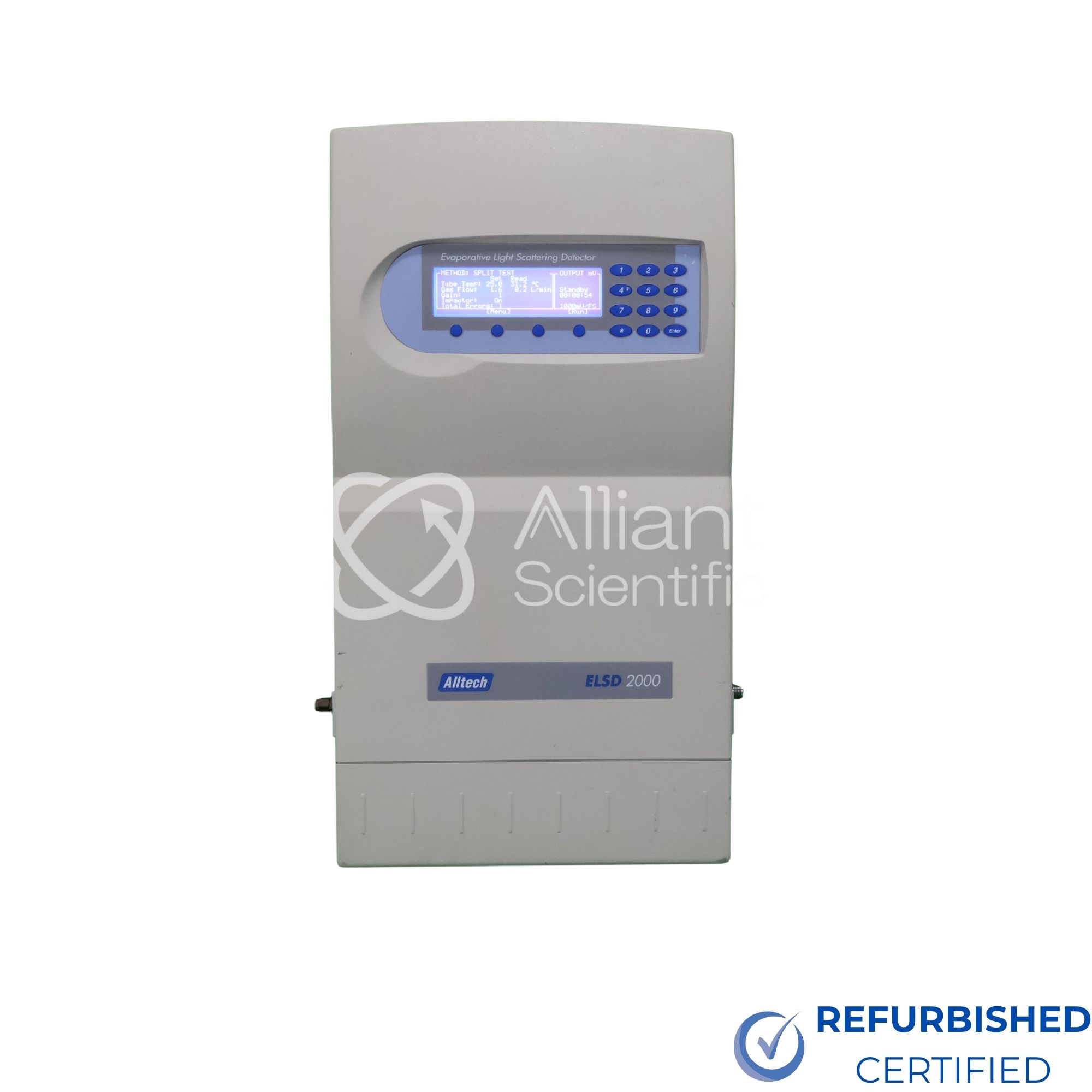

Alltech 2000 Evaporative Light Scattering Detector (ELSD)
Alltech 2000 Evaporative Light Scattering Detector (ELSD) is a universal chromatographic detector designed for analytes that do not possess UV absorbance or fluorescence characteristics. Unlike UV detectors, the Alltech 2000 ELSD responds to non-volatile compounds based on particle formation following mobile phase evaporation, making it suitable for a broad range of HPLC applications.
The detector operates by nebulizing the column effluent, evaporating the mobile phase, and measuring light scattered by the remaining analyte particles. This detection principle allows analysis of compounds that are difficult or impossible to detect using conventional UV detectors, including sugars, lipids, surfactants, polymers, phospholipids, and many pharmaceutical excipients.
The Alltech 2000 ELSD is commonly used in pharmaceutical research, food and beverage testing, natural products analysis, polymer characterization, carbohydrate analysis, and quality control laboratories. Its ability to detect virtually any non-volatile analyte makes it a valuable addition to HPLC workflows requiring greater analytical flexibility than UV-based detection alone.
This refurbished Alltech 2000 Evaporative Light Scattering Detector (ELSD) has been fully tested and verified to be in proper working condition by Alliant Scientific.
Includes:
- Alltech 2000 Evaporative Light Scattering Detector (ELSD)
- Warranty Coverage
Technical Specifications
| Manufacturer | Alltech |
| Model | 2000 ELSD |
| Detector Type | Evaporative Light Scattering Detector (ELSD) |
| Detection Principle | Light scattering from non-volatile analyte particles |
| Light Source | Laser Diode |
| Nebulization Method | Pneumatic Nebulization |
| Nebulizer Gas | Nitrogen or Clean Dry Air |
| Gas Pressure Range | Typically 30–90 psi |
| Drift Tube Temperature Range | Ambient to 120°C |
| Maximum Mobile Phase Flow Rate | Up to 5 mL/min |
| Detector Output | Analog Signal Output |
| Compatible Techniques | HPLC, Isocratic and Gradient Elution |
| Analyte Types | Non-volatile and Semi-volatile Compounds |
| Dimensions (W × D × H) | Approx. 12 × 16 × 8 in (30 × 41 × 20 cm) |
| Weight | Approx. 22 lb (10 kg) |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Additional information
| Availability | |
|---|---|
| Brand | |
| Condition | |
| Model | |
| Onsite Installation | |
| Warranty |
Key Features
- Universal Detection Capability
Detects compounds that lack UV chromophores, including lipids, sugars, surfactants, and polymers. - Compatible with Gradient HPLC Methods
Suitable for both gradient and isocratic separations while maintaining stable detector performance. - Laser-Based Light Scattering Detection
Provides sensitive detection of non-volatile analytes following mobile phase evaporation. - Adjustable Drift Tube Temperature
Allows optimization for different solvent systems and analyte classes. - Broad Application Flexibility
Supports pharmaceutical, food, natural products, polymer, and chemical analysis workflows. - Simple Integration with HPLC Systems
Designed for use alongside a wide range of HPLC instruments and chromatography configurations.
Applications
- Carbohydrate and sugar analysis
- Lipid and phospholipid analysis
- Polymer characterization
- Surfactant analysis
- Pharmaceutical excipient testing
- Natural products and botanical analysis
- Food additive analysis
- Non-UV active compound detection
- Quality control testing
- HPLC method development
