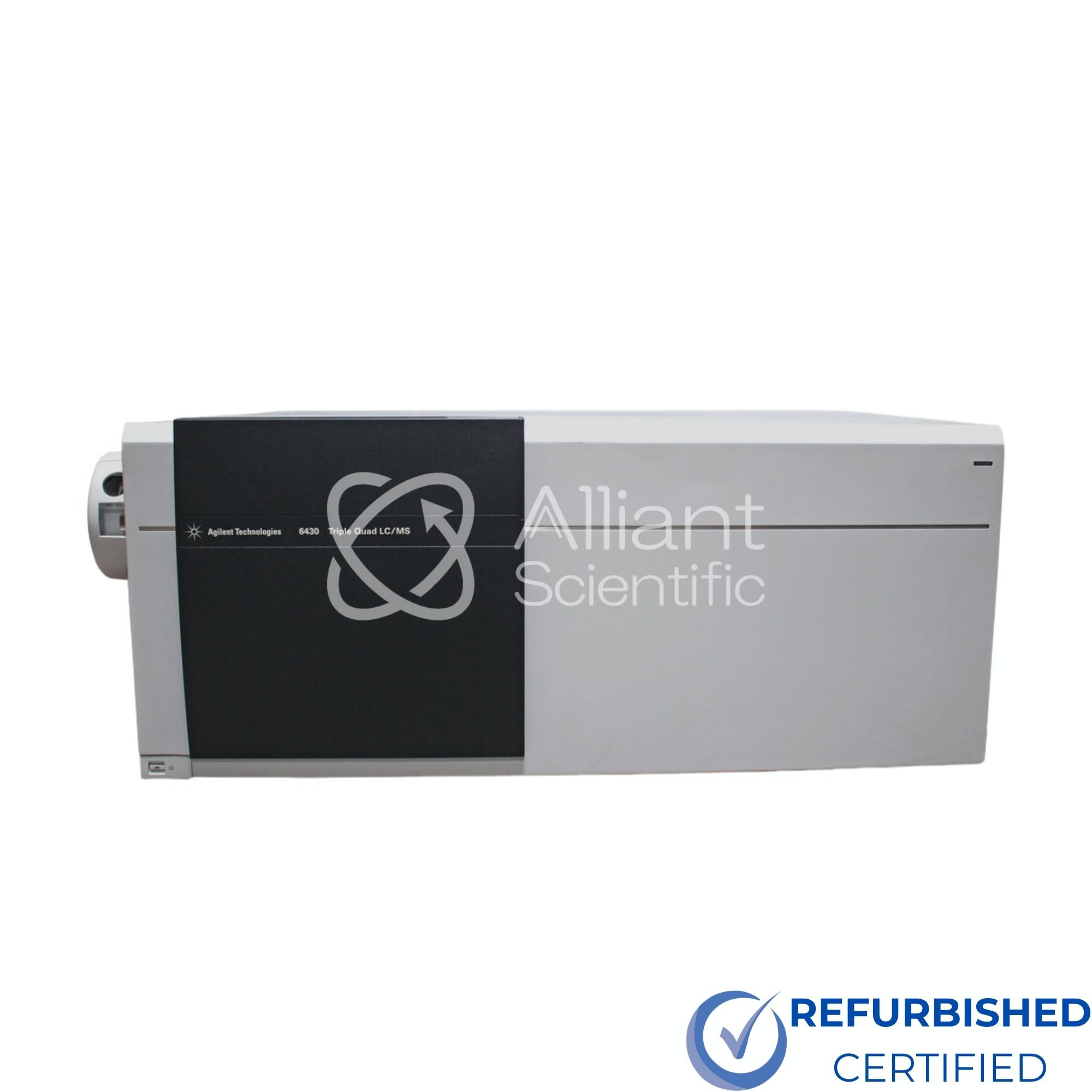

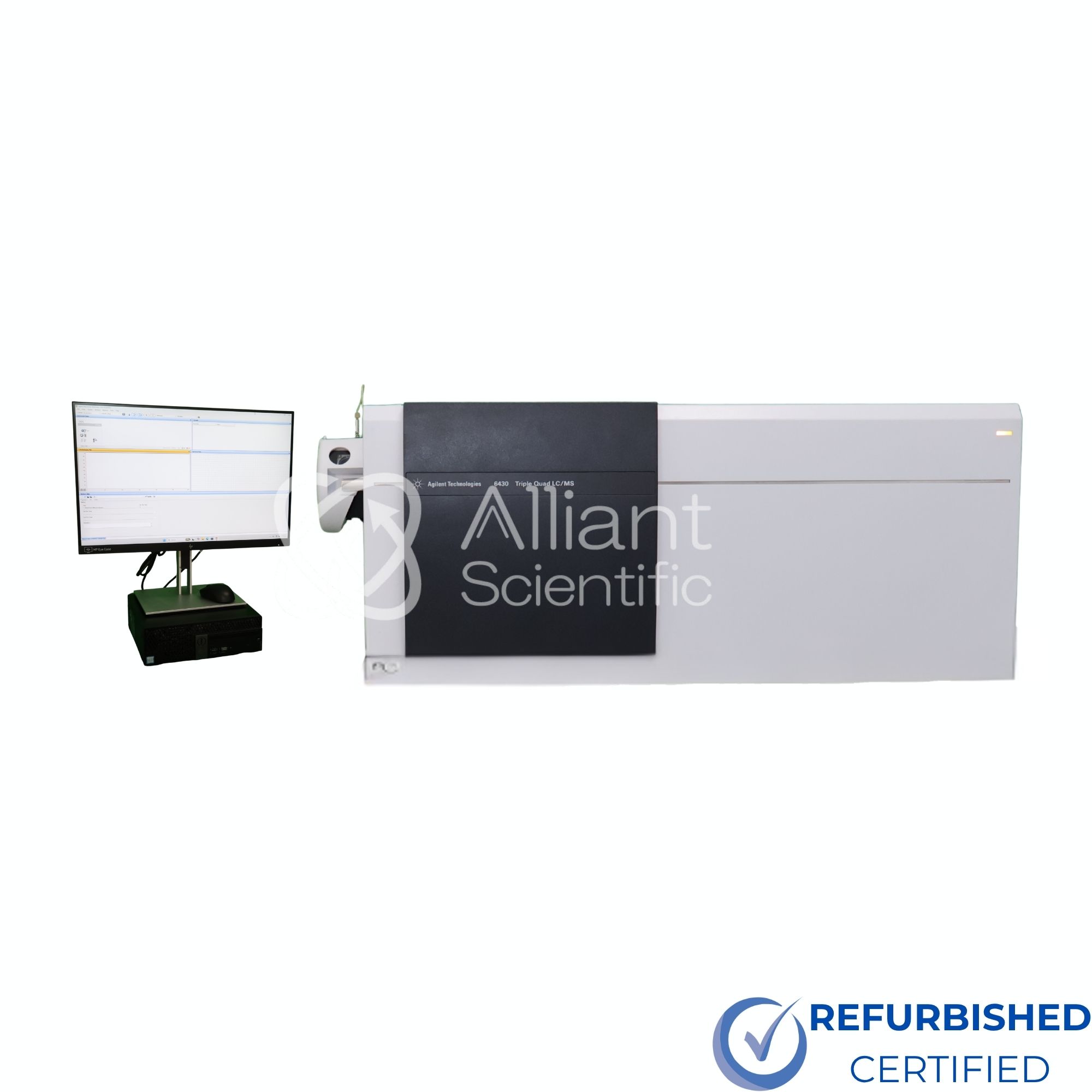

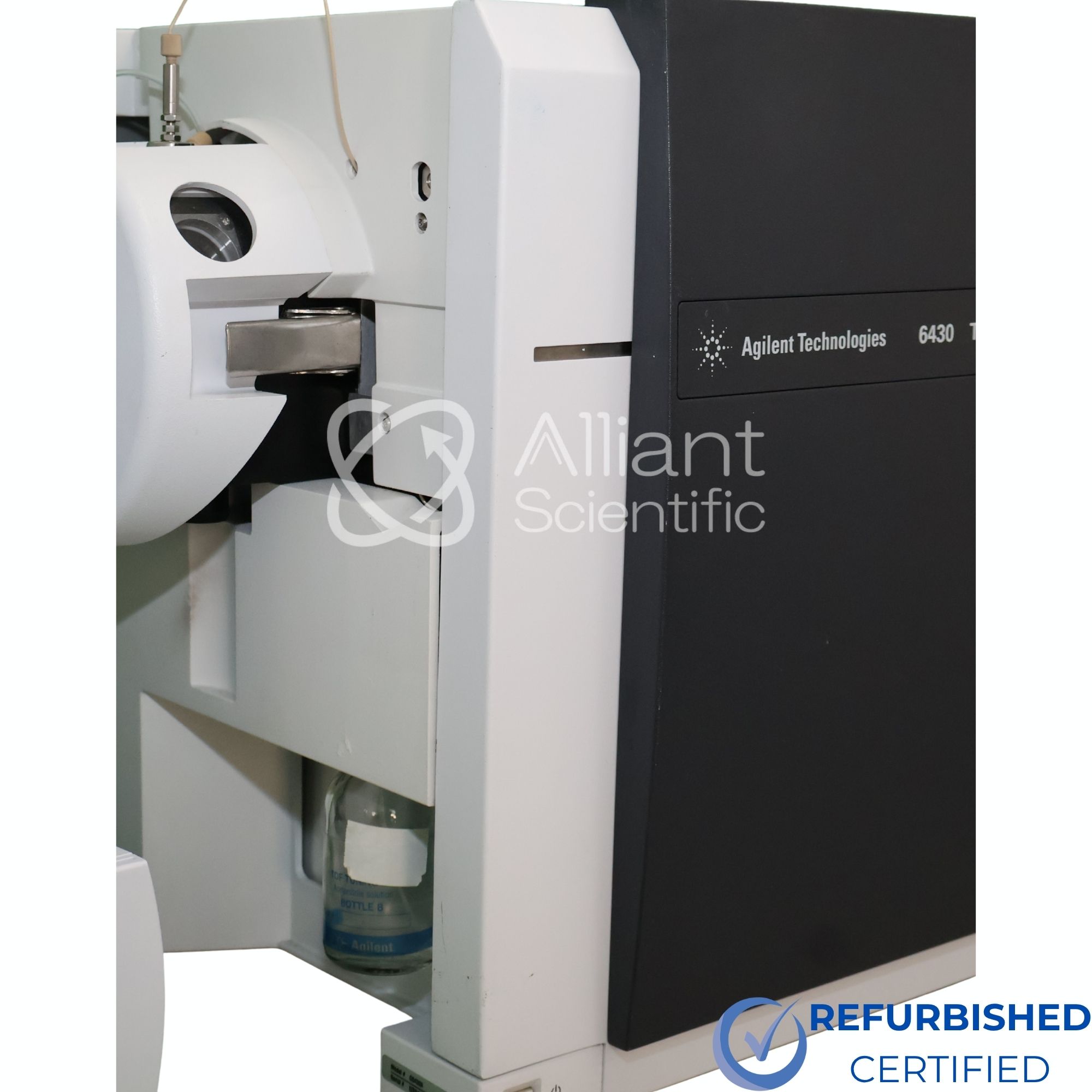

Agilent 6430 Triple Quad LC/MS
In Stock
Agilent 6430 Triple Quad LC/MS is a high-sensitivity system built for precise quantification of narrow UHPLC peaks, with MS cycle times as short as 100 milliseconds and a mass range of 5–1,650 m/z. It’s well suited for food testing, water analysis, and protein biomarker work. Refurbished and tested by Alliant Scientific.
Listing last updated: August 2026
Description
Agilent 6430 Triple Quad LC/MS Overview
The Agilent 6430 is engineered for precise quantification of narrow UHPLC peaks, with rapid MS cycle times as short as 100 milliseconds — ensuring reliable peak integration with at least ten data points even for peaks lasting just one second. That speed makes it well suited for complex multi-analyte assays that demand short dwell times.
Compared to the entry-level 6420, the 6430 adds an additional turbo pump, improves pumping in vacuum stage 2, and updates the collision cell lenses for better performance — a meaningful step up without moving into Agilent Jet Stream territory, which starts at the 6460.
With sensitivity down to 1pg of reserpine at a 300:1 signal-to-noise ratio and mass resolution of 0.5 Da (manual tune) / 0.7 Da (autotune), the 6430 is well suited for food testing, water analysis, and protein biomarker discovery and validation.
This Agilent 6430 Triple Quad LC/MS is offered fully refurbished and tested, in working condition by Alliant Scientific.
Includes:
- Agilent 6430 Triple Quad LC/MS
- ESI Source
- Vacuum Pump
- Data System
- 90-Day Warranty
Optional:
- Agilent HPLC Front End Systems (1200 or 1260 Infinity Series)
- Premium Refurbishment with Extended Warranty
Disclaimer: All brand names and trademarks are the property of their respective owners and are used for identification only. We are not an authorized dealer. Software, if included, is not transferable or upgradable.
Compare Related Systems
Need extended mass range or higher sensitivity? The Agilent 6490 and Agilent 6495B add Jet Stream and iFunnel technology for greater sensitivity. The Agilent 6460 is the next step up with Agilent Jet Stream technology included.
Technical Specifications
| Model | Agilent 6430 (G6430A) |
| Type | Triple Quadrupole LC/MS |
| Mass Range | 5–1,650 m/z |
| Sensitivity | 1pg reserpine, 300:1 S/N ratio |
| Scan Rate | 5,200 u/sec |
| Polarity Switching | 30 msec |
| Minimum Dwell Time | 1 msec |
| Number of MRM | 19,800 |
| Dynamic MRM | 4,000 |
| Mass Resolution (FWHM) | 0.5 Da (manual tune), 0.7 Da (autotune) |
| MS Cycle Time | As fast as 100 msec |
| Ion Source | ESI (multi-mode/APCI optional) |
| Software | Agilent MassHunter Workstation |
| Condition | Refurbished and tested |
| Warranty | 90 days |
Additional information
| Availability | |
|---|---|
| Brand | |
| Condition | |
| Model | |
| Onsite Installation | |
| Warranty |
Key Features
- Fast MS Cycle Times
As short as 100 milliseconds, capturing at least ten data points per peak even for one-second peaks. - High Sensitivity
Detects as low as 1pg of reserpine at a 300:1 signal-to-noise ratio. - Large MRM Capacity
Supports up to 19,800 MRM transitions and 4,000 dynamic MRM. - Fast Polarity Switching
30 msec switching supports efficient dual-polarity methods. - Improved Vacuum System
Additional turbo pump and improved stage 2 pumping over the entry-level 6420. - UHPLC Compatible
Engineered for precise quantification of narrow UHPLC peaks.
Applications
- Food Testing
Multi-residue and contaminant screening in complex food matrices. - Water Analysis
Trace contaminant detection and quantitation in environmental water samples. - Protein Biomarker Discovery
Biomarker discovery and validation workflows. - Multi-Analyte Assays
Short dwell times support complex, high-transition-count methods.
Start Guide – Agilent 6430 Triple Quad LC/MS
FAQ (Frequently Asked Questions)
What is the mass range of the Agilent 6430?
5 to 1,650 m/z.
How sensitive is the Agilent 6430?
It detects as low as 1pg of reserpine at a 300:1 signal-to-noise ratio.
How is the 6430 different from the 6420?
The 6430 adds an additional turbo pump, improves vacuum stage 2 pumping, and updates the collision cell lenses over the entry-level 6420.
How is the 6430 different from the 6460?
The 6460 adds Agilent Jet Stream technology and 3,000 m/z Q1/Q2 quadrupoles, offering greater sensitivity and mass range than the 6430.
What applications is the Agilent 6430 best suited for?
Food testing, water analysis, and protein biomarker discovery and validation, especially where fast MS cycle times and multi-analyte assays are needed.
Does this unit include a warranty?
Yes — this unit ships with a 90-day warranty.
